LogiLink CPV0062 Network cable CAT 7 S/FTP Orange 500 m
EAN:
Part number:
Item no:
Product type
Network cable
Specification
CAT 7
Shielding
S/FTP
Cable features
Flame-retardant
Common shield
Halogen-free
Twin shield
AWG max.
23
Datasheet (PDF)
PrimeLine laying cable, Cat. 7, S/FTP, orange, 500 m
Highlights & Details

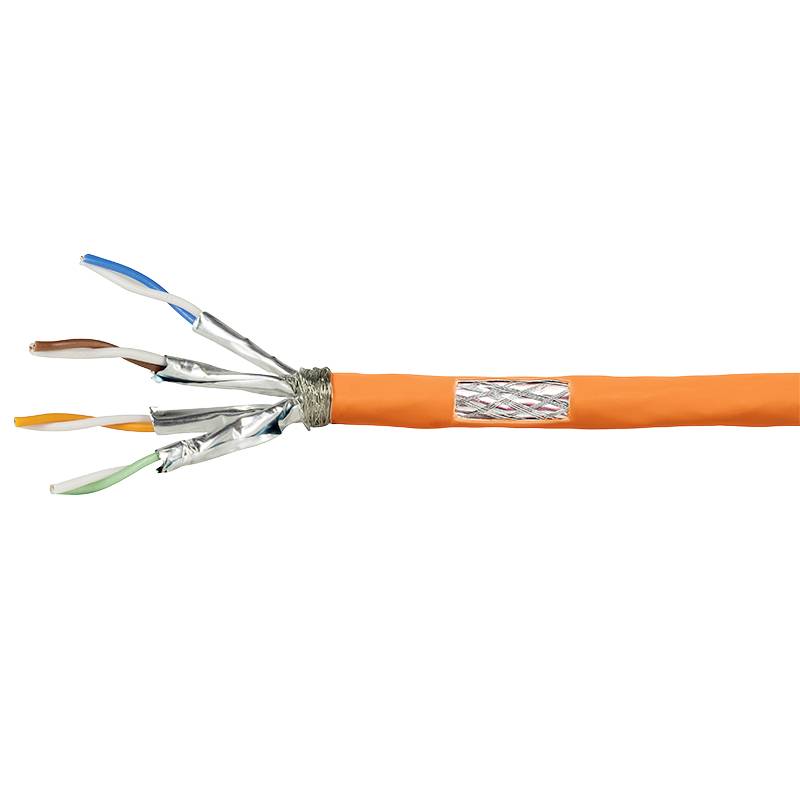

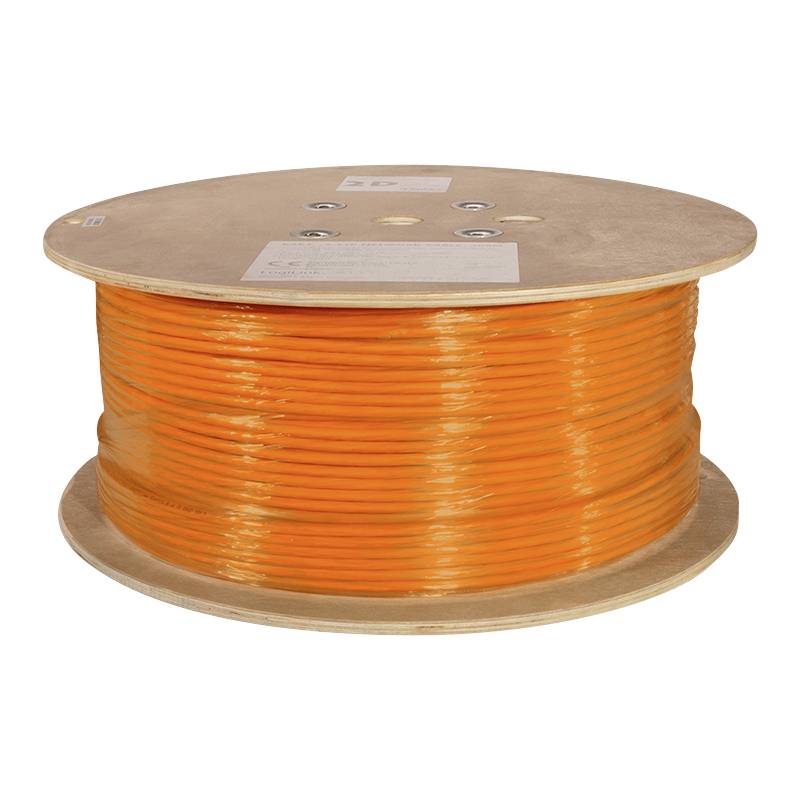

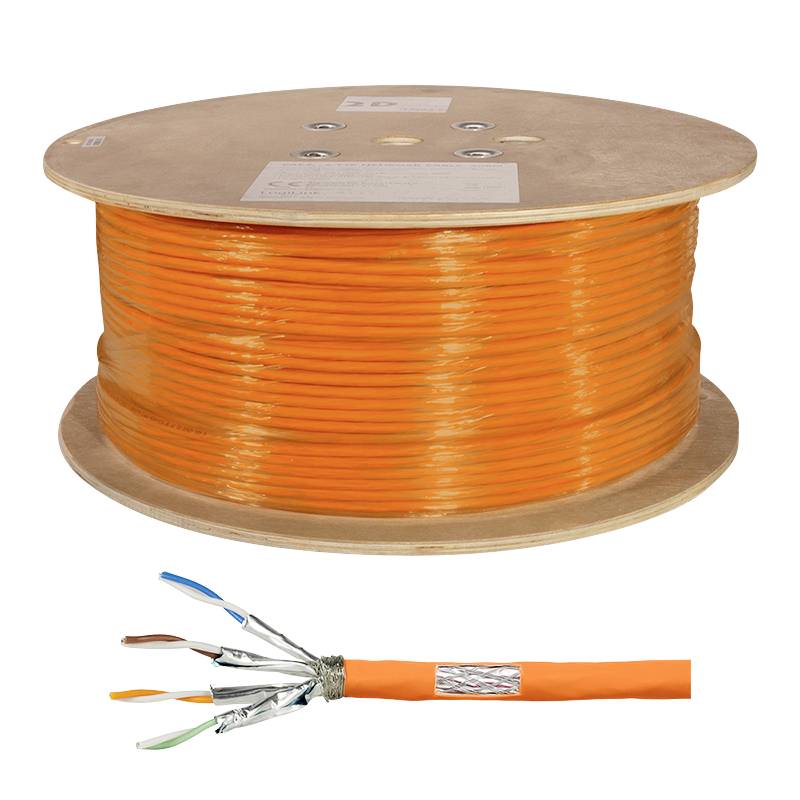

- Cat. 7 AWG23 S/FTP laying cable, OFC, 500m drum
- 4 individually shielded pairs (PIMF)
- Total shield made of AL-MG braid
- LSZH outer sheath, orange, 7.5mm diameter
- Conforms to EN50575 + EN50399 (BPV), class DCA-S1A, d0,a1
- For Fast-, Gigabit- & 10 Gigabit Ethernet cabling
- Complies with ISO/IEC 11801 and IEC 61156-5
Technical specifications
- Product type
Network cable
CAT 7
S/FTP
- Cable features
Flame-retardant
Common shield
Halogen-free
Twin shield
- Outside Ø
7.5 mm
- Factory colour
Orange
- Content
500 m
- AWG max.
23
- Packaged
Yes
- Manufacturer part #
CPV0062
- Type
CPV0062
- Insulation material
LSZH
- Halogen-free
Yes
- Max. length sold by the metre
500 m
- Twisted pair cabling (part 1)
Yes (1)
- Version
Connection cable
- Cable use
RJ45
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2900223 LogiLink CPV0062 Network cable CAT 7 S/FTP Orange 500 m
User & Safety Instructions
User & Safety Instructions 2900223 LogiLink CPV0062 Network cable CAT 7 S/FTP Orange 500 m
Description
The LogiLink Cat. 7 and Cat. 7A cables offer maximum operating frequencies of up to 1200 megahertz and are ideal for Ethernet networks with transfer rates of 10 Gbit/s and some of them above. They are backwards compatible with Cat. 6A, Cat. 6 or Cat. 5 cables and have a shielding of the individual wire pairs and the entire cable (S/FTP). As such, the LogiLink Cat.7 7 and Cat.7A cables are ideal for future-proof structured cabling for 10GBASE-T Ethernet, 100BASE-TX or 1000BASE-T.
