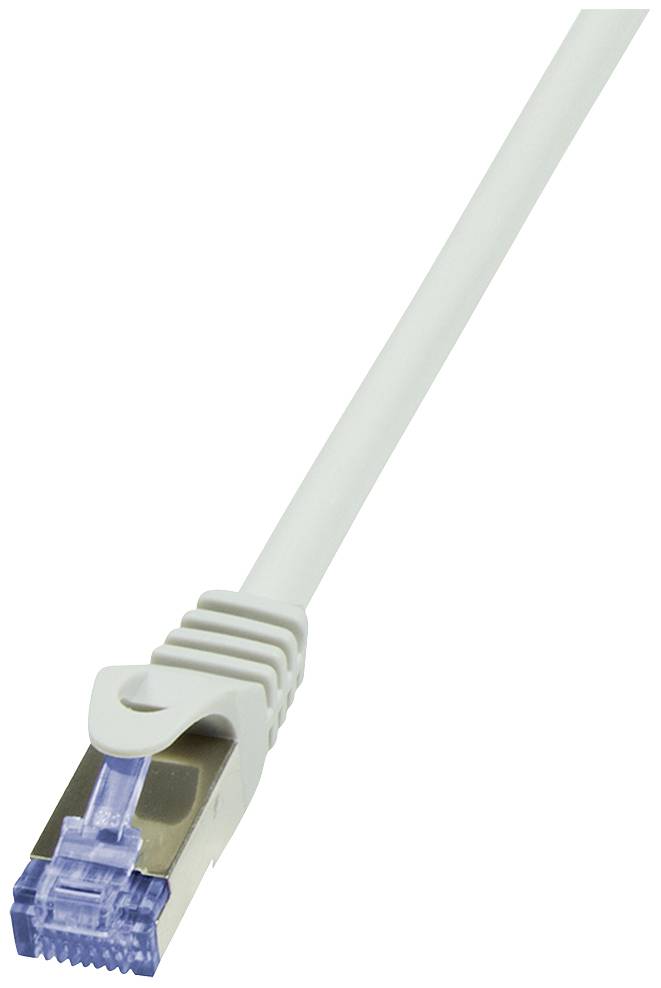

LogiLink CQ3142S RJ45 Patch cable CAT 6A S/FTP 50 m Grey incl. detent, Flame-retardant, Common shield, Halogen-free, Twi
EAN:
Part number:
Item no:
Product type
Patch cable
Specification
CAT 6A
Shielding
S/FTP
Connection type
RJ45
Cable length
50 m
Datasheet (PDF)
LogiLink patch cable PrimeLine, Cat. 6A, S/FTP, gray, 50 m
Highlights & Details
- Patch cable CAT 6A RJ45 S/FTP 500MHz
- For Gigabit Ethernet & 10 Gigabit Ethernet & PoE
- Overall screen and pairs in metal foil (PiMF)
- AWG 26/7 full copper wires
- LSZH (halogen-free & flame-retardant), IEC60332-1-2
- ISO/IEC 11801, EN50173 & TIA/EIA-568
Technical specifications
- Product type
Patch cable
CAT 6A
S/FTP
- Connection type
RJ45
- No. of A connectors
1 x
- Type A
RJ45 plug
- No. of B connections
1 x
- Type B
RJ45 plug
- Cable length
50 m
- Factory colour
Grey
- Connector version
straight
- Cable features
incl. detent
Flame-retardant
Common shield
Halogen-free
Twin shield
26/7
- Cable use
Networks
- Version
Cable
- Cable design
Round
Copper
- Max. frequency
500 MHz
- LAN transfer rate
100 MBit/s
1000 MBit/s
2500 MBit/s
10000 MBit/s
- Halogen-free
Yes
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2900239 LogiLink CQ3142S RJ45 Patch cable CAT 6A S/FTP 50 m Grey incl. detent, Flame-retardant, Common shield, Halogen-free, Twi
User & Safety Instructions
User & Safety Instructions 2900239 LogiLink CQ3142S RJ45 Patch cable CAT 6A S/FTP 50 m Grey incl. detent, Flame-retardant, Common shield, Halogen-free, Twi
Description
The high-quality LogiLink PrimeLine Cat. 6A patch cable is suitable for data transfer up to 10 Gigabit Ethernet and transmission frequencies up to 500 MHz. The cable sheath is halogen-free and flame-resistant. Copper wires are shielded in pairs. The overall shield is copper braid. The shielded RJ45 plugs are provided with a molded, slim kink protection as well as catch protection. These connection cables are suitable for Ideal at increased bandwidth requirements of 10-Gigabit Ethernet (10GBASE-T) and distances up to 100 m. The LogiLink Cat.6A PrimeLine patch cables are available in different colors and lengths.
