Buy LogiLink CQ7053S RJ45 Patch cable CAT 6A S/FTP 2.00 m Black Shielded, UV-resistant, Oil-resistant 1 pc(s)

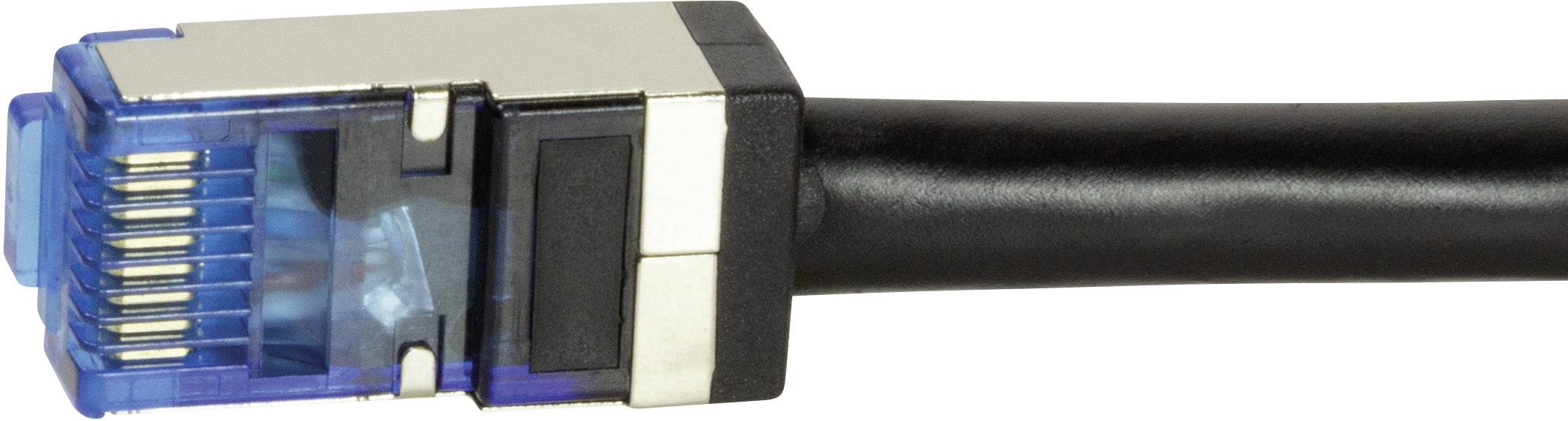

Close-up of an RJ45 network cable with a blue connector and black outer sheathing. Suitable for Ethernet connections.

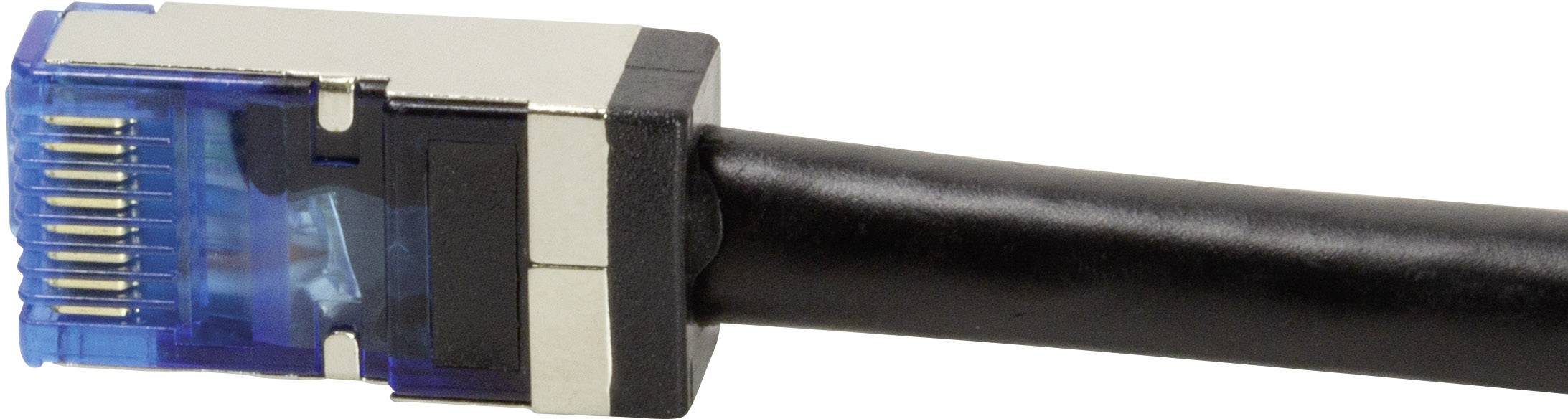

A blue Ethernet plug with a black cable. The plug has metallic contacts and is used for network connections.

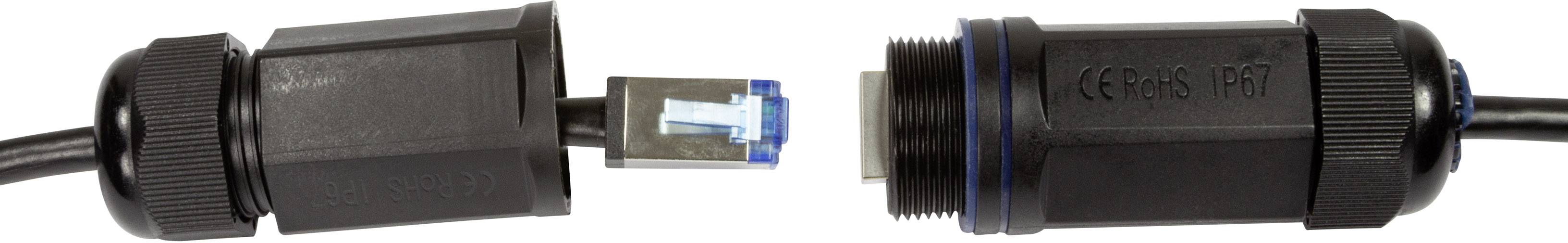

Two plug connections: One with cable, one socket. Both in black, showing a separated state before joining together.

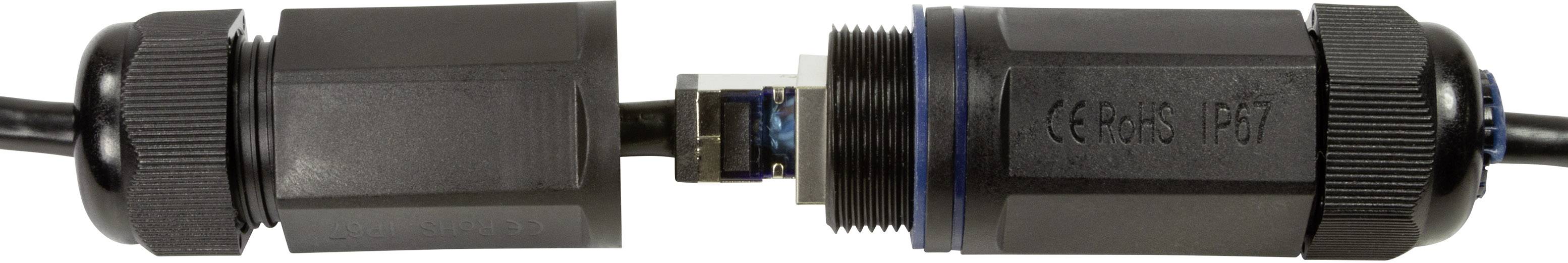

Two connectors in close-up, one with a cable, one without. Black colour, metallic internal components visible.

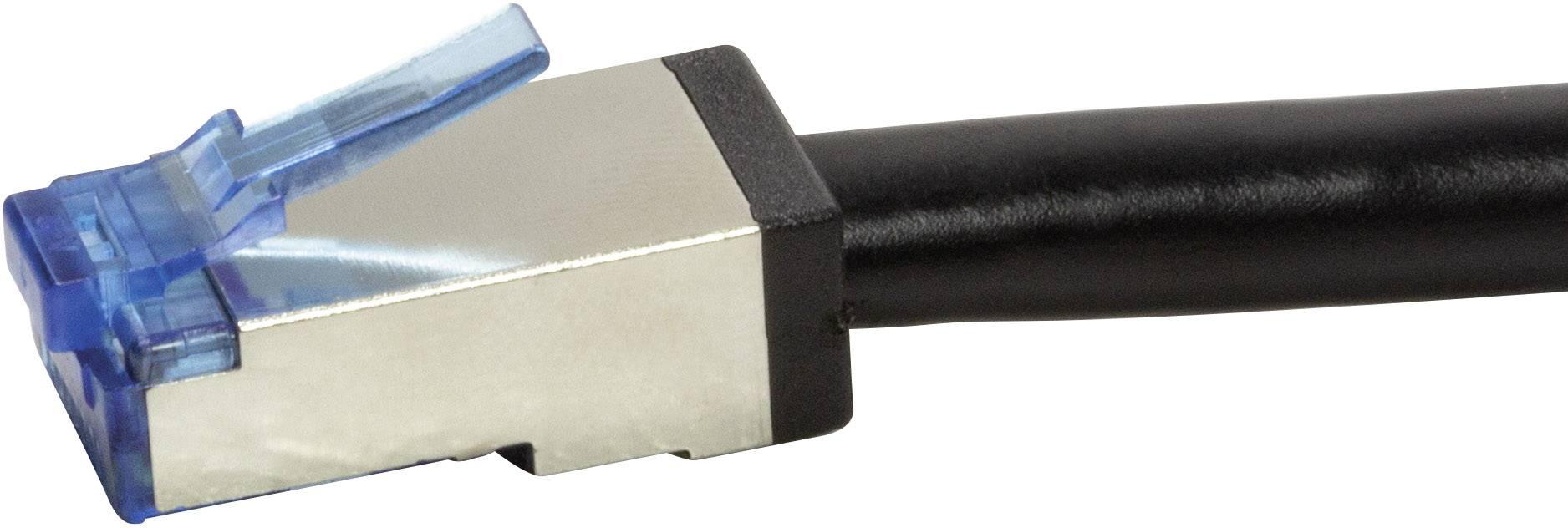

A black network cable with a blue RJ45 plug on a metallic housing. Used for internet or network connections.

1/6

Product type

Patch cable

Specification

CAT 6A

Shielding

S/FTP

Connection type

RJ45

Cable length

2.00 m

Datasheet (PDF)

Fast track dispatch on Wed, 30 Sep

87 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 2.93 / piece)

€ 2.93

plus VAT.

14-day return policy included

Report legal concerns

LogiLink CQ7053S outdoor patch cable CAT 6A S/FTP PVC+PE, black, 2 m

Highlights & Details

Cat 6A S/FTP AWG26 solid copper, 500 MHz
RJ45 plug with gold-plated contacts
Robust strain relief without grommet
Anti-UV and oil resistant (IEC60811-2-1)
Splash-proof (IEC 60811-1-3)
Cable sheath made of PE and PVC mixture, black
Outer diameter of cable 6.5 mm
Dimensions RJ45 plug incl. strain relief: Approx. 25.3x12 x 10 mm
Operating temperature: -40 to 65°C.
Suitable for POE and POE+
Recommended patch cable outdoor connectors (waterproof & robotic): NP0080 (Conrad No. 1926839)

Technical specifications

Product type: Patch cable

: CAT 6A

: S/FTP

Connection type: RJ45

No. of A connectors: 1 x

Type A: RJ45 plug

No. of B connections: 1 x

Type B: RJ45 plug

Cable length: 2.00 m

Factory colour: Black

Connector version: straight

Cable features: Shielded
UV-resistant
Oil-resistant

: 26/7

Cable use: Networks

Version: Cable

Cable design: Round

: Copper

Max. frequency: 500 MHz

LAN transfer rate: 100 MBit/s
1000 MBit/s
2500 MBit/s
10000 MBit/s

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1926830 LogiLink CQ7053S RJ45 Patch cable CAT 6A S/FTP 2.00 m Black Shielded, UV-resistant, Oil-resistant 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1926830 LogiLink CQ7053S RJ45 Patch cable CAT 6A S/FTP 2.00 m Black Shielded, UV-resistant, Oil-resistant 1 pc(s)

Conformity certificate

Conformity certificate 1926830 LogiLink CQ7053S RJ45 Patch cable CAT 6A S/FTP 2.00 m Black Shielded, UV-resistant, Oil-resistant 1 pc(s)

Description

LogiLink's outdoor patch cables are especially suitable for use in unprotected, rough environments, but not for laying in the ground area. The cable sheath made of resistant polyurethane (PE) protects against weather influences and UV radiation. The cables are still flexible and easy to lay. In conjunction with the patch cable connector NP0080 from LogiLink, water-protected and robust outdoor connections can be established. Ideal e.g. for video surveillance in outdoor areas. Available in lengths: 0.5 m / 1 m / 2 m / 3 m / 5 m / 7.5 m / 10 m / 15 m / 20 m / 30 m / 40 m / 50 m.

This text is machine translated.
