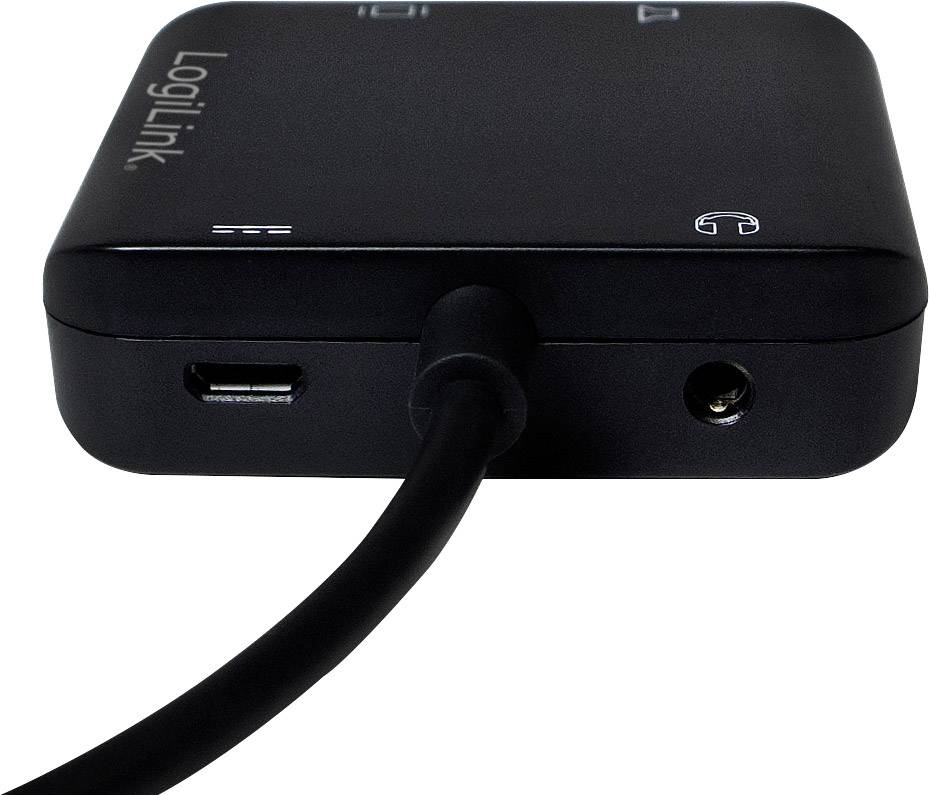

A black LogiLink adapter with a USB port and a headphone socket, set against a white background.

A black USB hub by LogiLink with multiple ports and a connected USB cable, suitable for additional connections.

A black LogiLink adapter with a USB-C port, HDMI and USB ports.

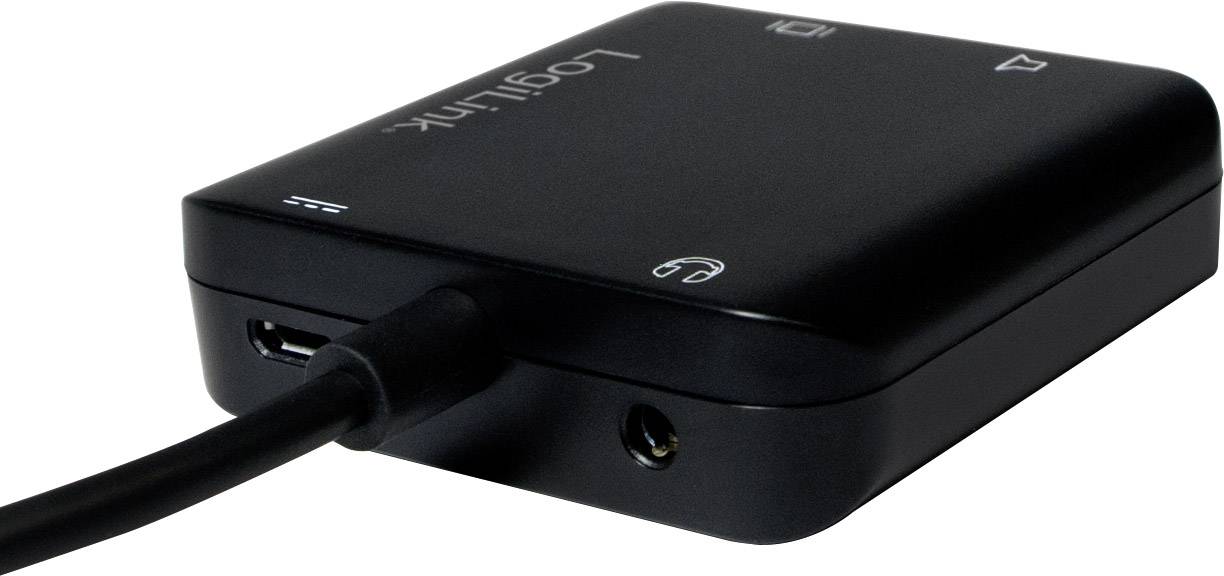

A black USB hub with multiple ports, including a USB input and audio sockets, provides enhanced connectivity.

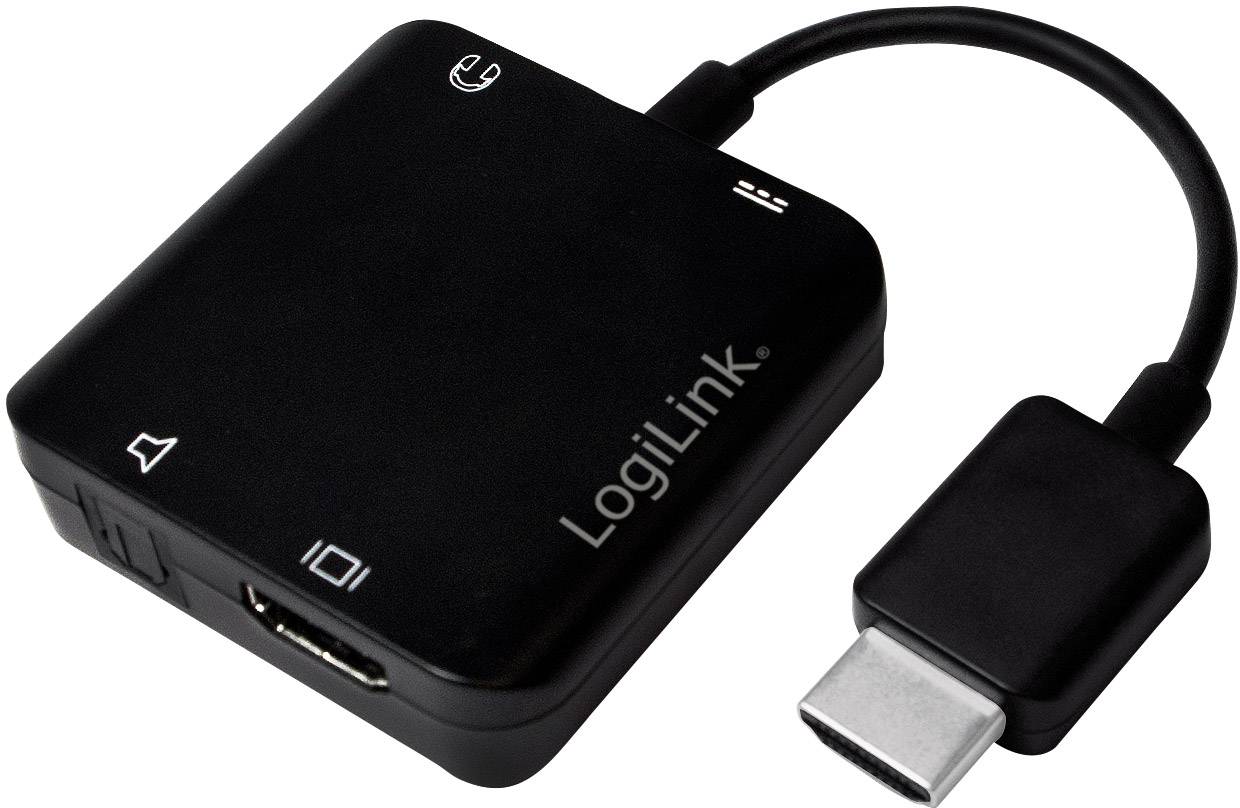

A black adapter from LogiLink with a USB-C plug that provides HDMI and USB ports.

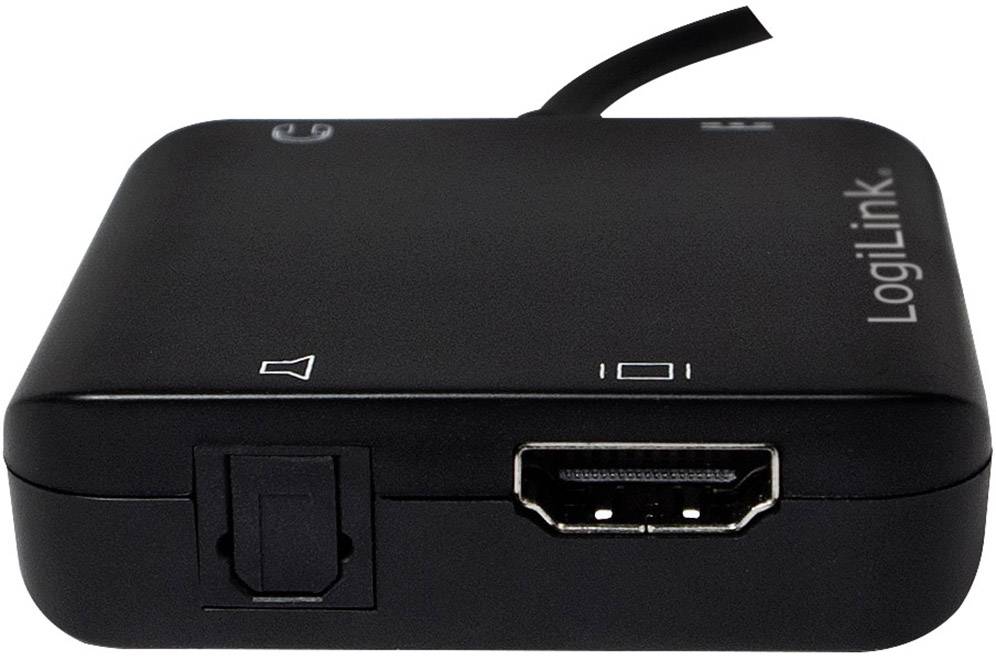

Black HDMI to VGA converter device by LogiLink with connections for HDMI output and VGA input, suitable for displays.

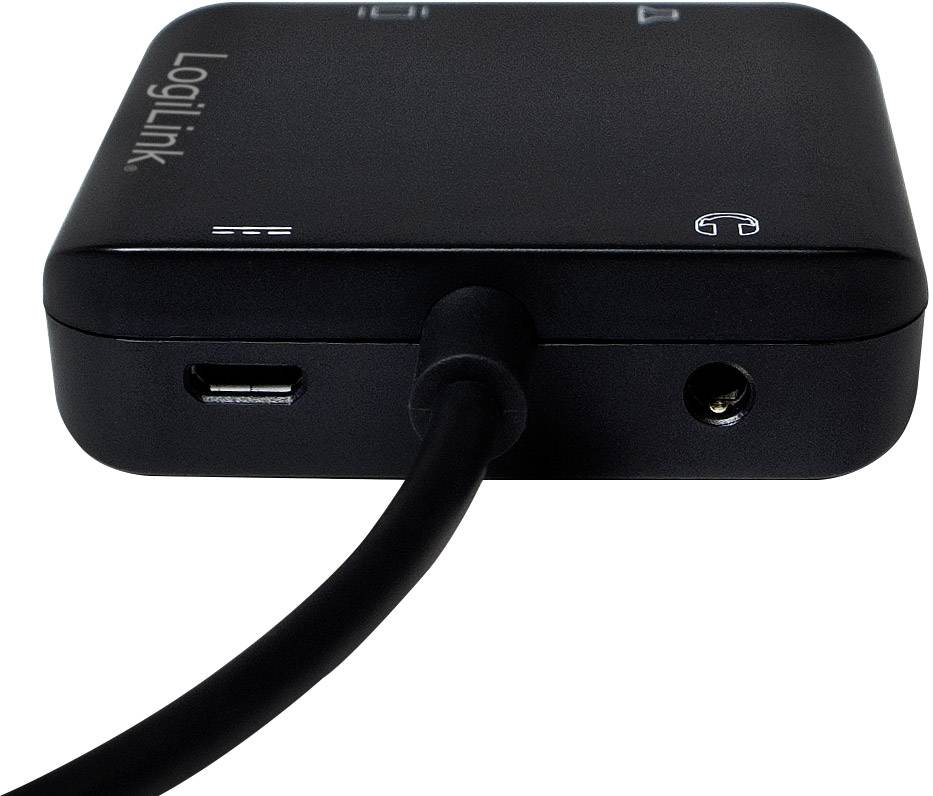

A black LogiLink adapter with USB port, headphone socket and power cable, suitable for audio connections.

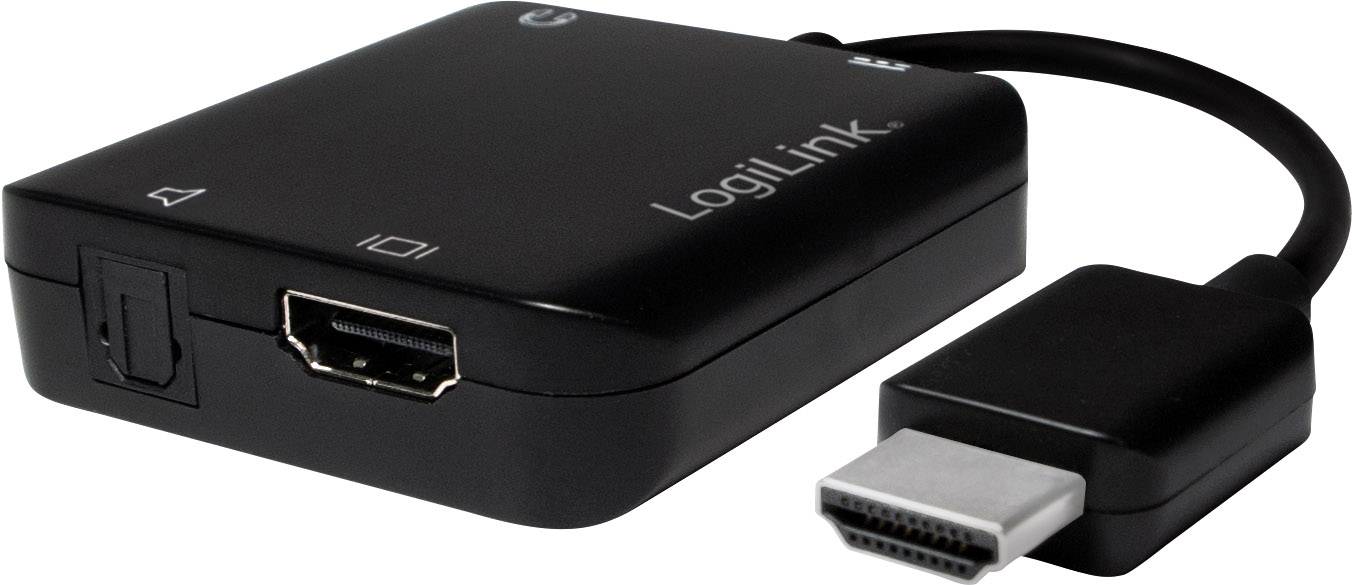

LogiLink Adapter with HDMI plug and optical connection, black casing. For connecting HDMI devices.

Diagram of an HDMI Audio Extractor. Left: Amplifier receiver, HDMI output. Right: Headphones, Power supply, HDMI source.

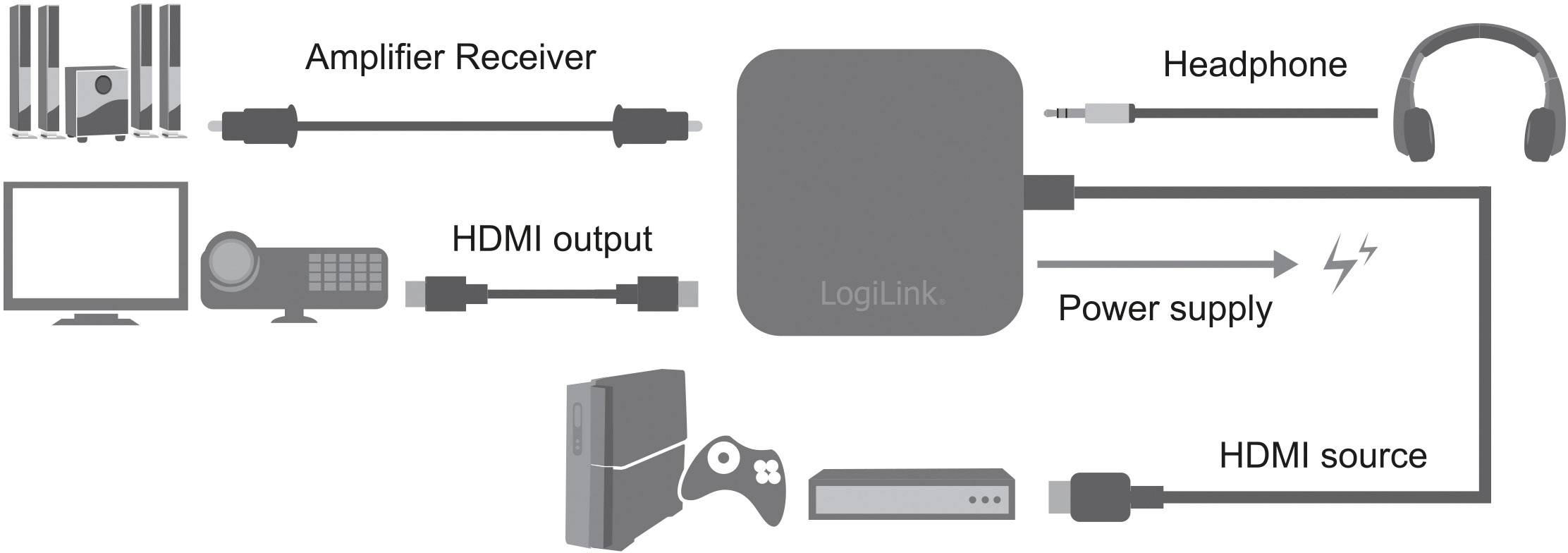

Diagram shows an audio setup: HDMI from HDMI source to HDMI output; amplifier, headphones, power supply connected.

1/12

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

LogiLink CV0106 HDMI Adapter [1x HDMI plug - 1x HDMI socket, Toslink socket (ODT)] Black 0.1 m

Input: HDMI
Output: HDMI + Digital SPDIF, analogueue 3.5 mm audio
Compliant with HDMI 1.4 standard, resolutions up to 4K x 2K (30 Hz)
Supports a bandwidth of 300 MHz / 3GBit/s per channel (9 GBit/s for all channels)
Video resolution: Up to 8-bit 4K (30 Hz), 12-bit 1080p (60 Hz) or 12-bit 720p/1080i (60 Hz)
Supports 3D formats up to 300 MHz
Complies with HDCP 1.4 specifications
Supports uncompressed audio signals such as LPCM
Supports compressed audio signals such as 2.0CH audio, 5.1CH Dolby Digital, DTS Digital
Optional power supply via Micro USB (not included)

Technical specifications

Product type: TV/monitor Adapter

Connection type: HDMI

No. of A connectors: 1 x

Type A: HDMI plug

No. of B connections: 1 x

Type B: HDMI socket
Toslink socket (ODT)

Cable length: 0.1 m

Factory colour: Black

Video resolution: 4096 x 2160 Pixel

Cable use: TV/monitor

Version: Adapter

Range of use: Monitors/TV adapters

Height: 55 mm

Length: 55 mm

Width: 16 mm

: Cable

Weight: 142 g

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 1967757 LogiLink CV0106 HDMI Adapter [1x HDMI plug - 1x HDMI socket, Toslink socket (ODT)] Black 0.1 m

User & Safety Instructions

User & Safety Instructions 1967757 LogiLink CV0106 HDMI Adapter [1x HDMI plug - 1x HDMI socket, Toslink socket (ODT)] Black 0.1 m

Description

Enjoy a true cinema experience. With the 4K x 2K HDMI audio extractor converter from LogiLink, you can separate the video track and audio track of your 4K videos. Simply connect the converter and enjoy the best films in High-Quality 2.0 or 5.1 audio, Dolby Digital or DTS Digital via your audio system. Ideal for your home theater!
