LogiLink FB1007 Socket RAL 9010 (semi-gloss)
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 3.61
5
5% = € 0.19
€ 3.42
10
7% = € 0.27
€ 3.34
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 3.61 / piece)
€ 3.61
plus VAT.
14-day return policy included
Highlights & Details

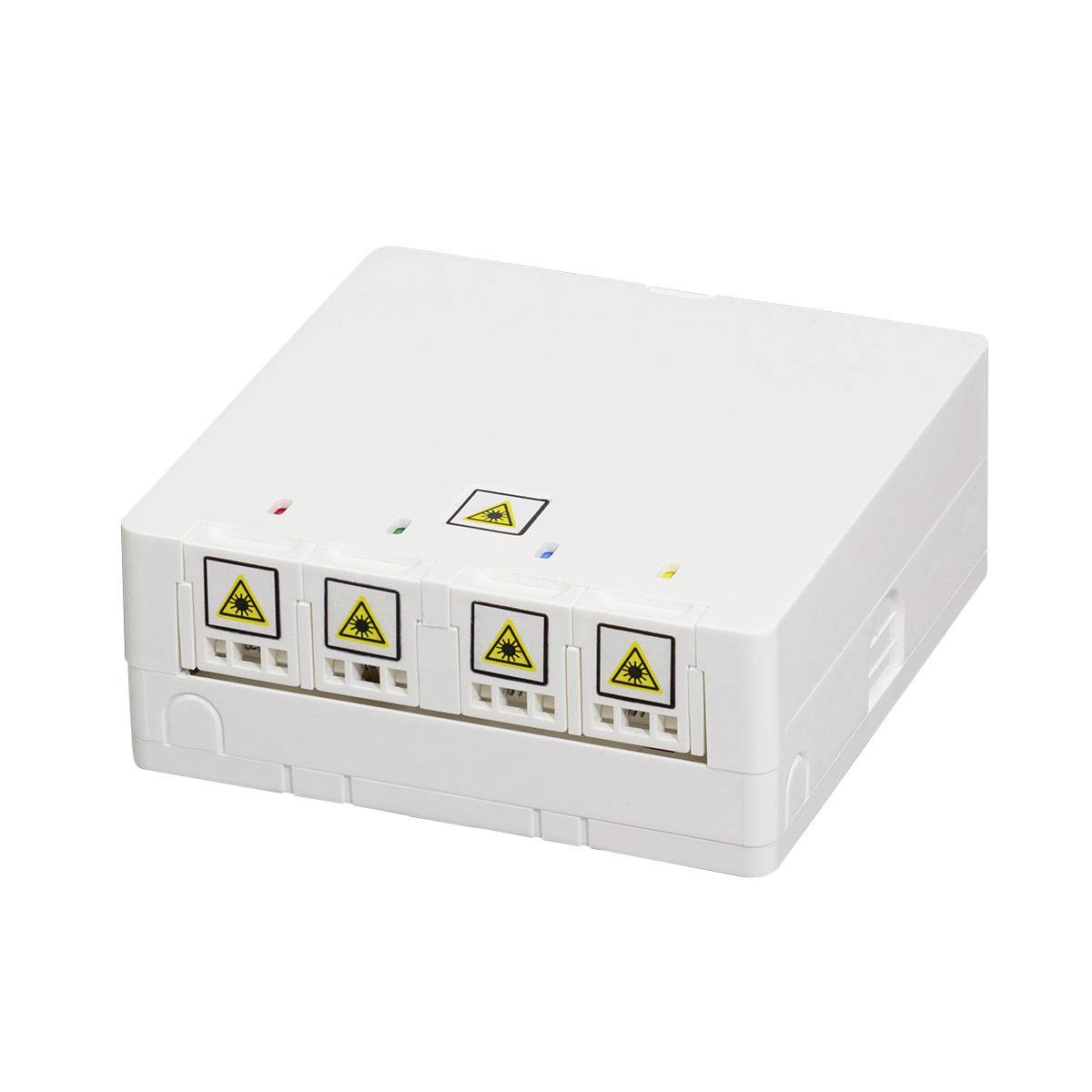

LogiLink FTTH junction box 4-way, 80 x 80, wall or DIN rail mounting
- For 4 SC simplex or 4 LC duplex couplings
- Suitable for a maximum of 4 fibers
- ABS plastic casing with laser protection
- Standard size 80 x 80 x 31.6 mm
- Suitable for surface or DIN rail mounting
- Suitable for 60 mm hollow wall box
- Removable floor plate for easy installation
- For up to 4 shrink tubes for 0.9 mm fibers
- Mounting screws and 4 shrink tubes included in delivery
- Colour RAL 9010 pure white
Technical specifications
- Product type
Socket
- Factory colour
RAL 9010 (semi-gloss)
- Content
1 pc(s)
- Version
Adapter
- Connection type
DIN connector
Cable
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3808090 LogiLink FB1007 Socket RAL 9010 (semi-gloss)
User & Safety Instructions
User & Safety Instructions 3808090 LogiLink FB1007 Socket RAL 9010 (semi-gloss)
Description
The LogiLink surface-mounted box for fiber-optic cables is suitable Ideal for the local connection in residential and commercial buildings and is the perfect solution for the connection to a high-speed glass-fiber network. This LogiLink fiber optic local connection is the termination of the fiber optic cable in the home (FTTH) or office (FTTD).
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1x FTTH junction box
- 2x screw set
- 1x labeling card
- 4x protective sleeves for fiber splice.
