LogiLink FB196E FB196E Connector housing Multicolour
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 22.68 / piece)
€ 22.68
plus VAT.
14-day return policy included
Highlights & Details

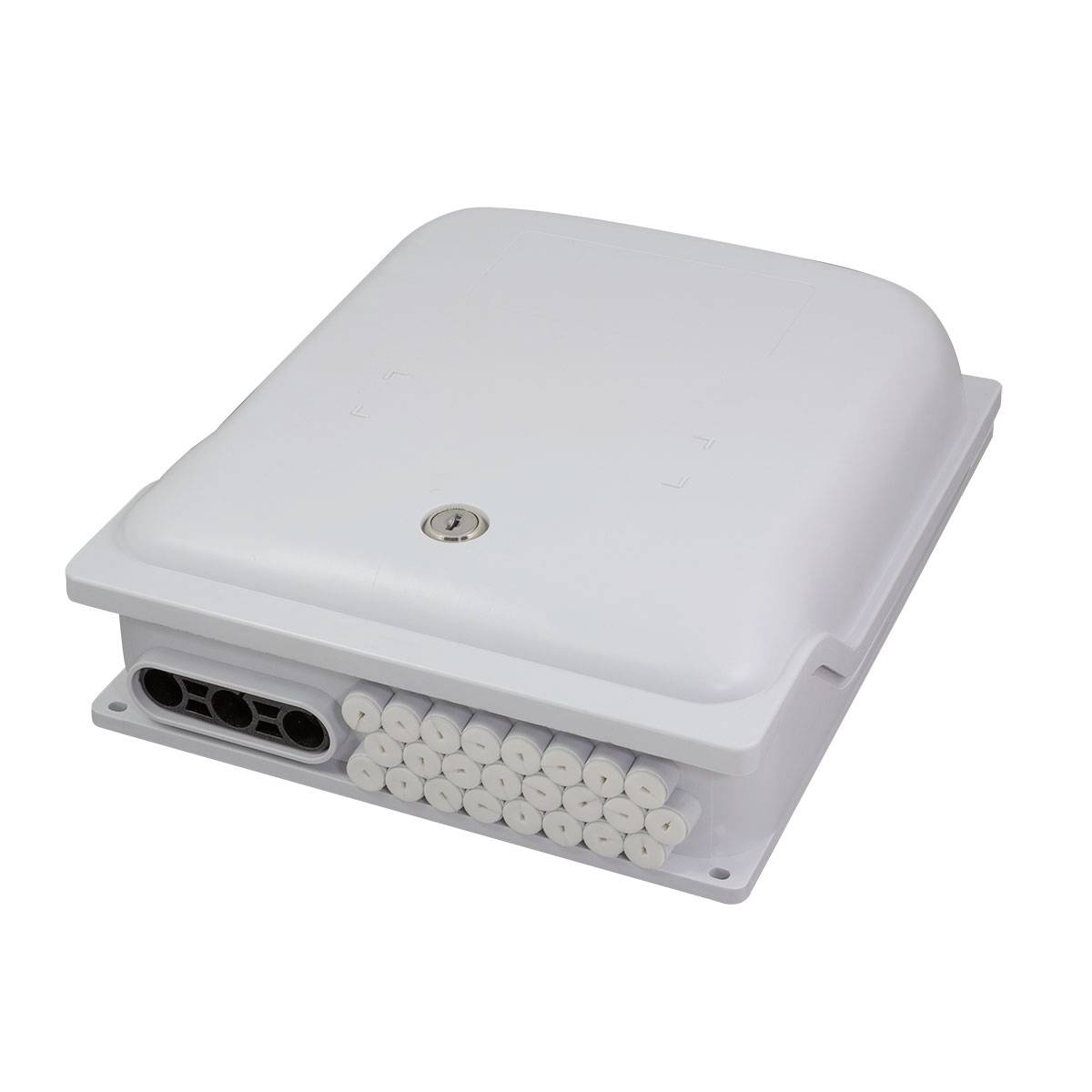

LogiLink FTTX connector housing IP65, for max. 96 fibers, 24x LC/DX or 24x SC/SX
- Glass-fiber distribution case for indoor and outdoor use
- Suitable for up to 24 LC duplex or SC Simplex adapters
- With four foldable splice cartridges for 24 fibers
- Compatible with common splice methods and fiber types
- Splice protection holder for type crimp or heat shrink tubing
- Suitable for indoor and outdoor use, IP65 protection
- 3 cable inputs 7-14 mm, 24 cable outputs 3-5 mm
- Lockable plastic housing (PC+ABS)
- Suitable for wall mounting, 280 mm x 220 mm
- Colour: Light gray, RAL 7035
Technical specifications
- Product type
Connector housing
- Factory colour
Multicolour
- Content
1 pc(s)
- Version
Adapter
- Screen size diagonal (inches)
1.0 inch
- Cable use
FO
- Connection type
Fibreglass
Cable
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3808091 LogiLink FB196E FB196E Connector housing Multicolour
User & Safety Instructions
User & Safety Instructions 3808091 LogiLink FB196E FB196E Connector housing Multicolour
Description
This universal glass-fiber distributor can be used as building distributor for up to 96 fibers. It was developed to offer a flexible platform for the numerous applications in private and commercial FTTX installations. The interior of the IP65 enclosure can be configured as desired for the storage of cable reserves, splices, cross-connections, adapter applications and other combinations. All the accessories necessary for the installation of the housing are included in the scope of supply.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1x FTTx distributor casing
- 4x Screw sets
- 2x brackets for PLC splitter
- 1x adhesive tape
- 3x cable entry seals
- 10x cable tie
- 1x spiral hose
- 2 x keys
- 1x protective hose
- 2x Splice protection sets
