Buy LogiLink LogiLink Cat.6A Field Terminable Plug - Netzwerkanschluss - RJ-45 (M) LogiLink LogiLink Cat.6A Field Terminable

A silver Ethernet plug with a black locking mechanism, suitable for network cables, on a white background.

An orange Ethernet cable with a metallic plug. The plug has a black clip mechanism for locking.

An orange network SFP cable with a metal connector, ready for data connection.

An orange network cable with a metallic plug, captured in close-up. Suitable for high-speed data transmission.

A RJ45 plug with strain relief and metal housing, partially disassembled, shows the internal construction.

An orange network cable with a metallic connector, often used in high-speed data transmission.

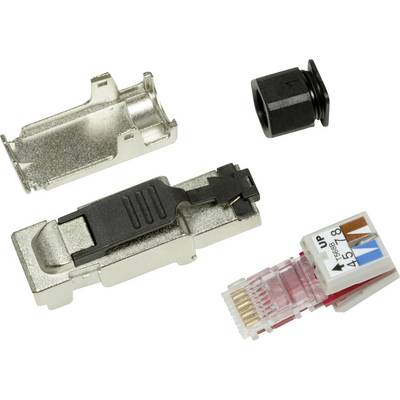

A disassembled network plug, comprising a metal housing, a plastic clip, a cable stopper, and an RJ45 connector.

An orange network cable with a silver connector at the end, suitable for high-speed data connections.

A silver RJ45 plug with a black plastic clip. Suitable for network cabling, showing a side view.

An orange network cable with a silver plug.

Close-up of an orange Ethernet cable with a silver plug, photographed at an angle from the left.

'Network plug kit with metal casing, plastic cover and colour-coded module, suitable for network cable connections.'

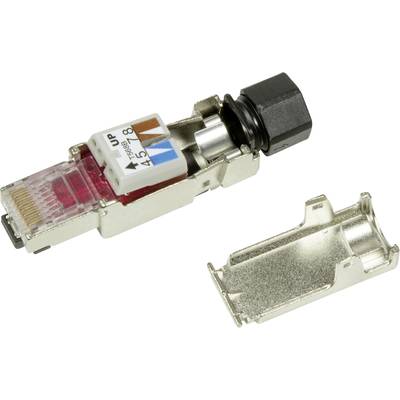

An RJ45 network plug with connector housing, suitable for Ethernet connections. The connection colours and contacts are visible.

1/14

Connector type

RJ45 plug enclosure

No. of pins

8P8C

Specification

CAT 6

Connector standard

RJ45

Type

LogiLink Cat.6A Field Terminable Plug - Netzwerkanschluss - RJ-45 (M)

Datasheet (PDF)

Fast track dispatch on Thu, 3 Sep

162 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 6.71 / piece)

€ 6.71

plus VAT.

Report legal concerns

LogiLink LogiLink Cat.6A Field Terminable Plug - Netzwerkanschluss - RJ-45 (M) N/A MP0040 RJ45 plug enclosure No. of pins (RJ) 8P8C Black, Silver 1 pc(s)

Highlights & Details

Standards CAT.6A Class EA, ISO/IEC11801, TIA568-C.2
Safety: UL 1863 listed
Casing: Shielded (metal with zinc alloy)
Contacts: Phosphor bronze alloy, 50µ gold plated
For flexible and rigid wire: AWG23-26
Supports PoE, PoE+ and PoE++
Wiring: T568A & T568B
Cable diameter 6-8 mm
Suitable for insulated wires with a diameter of approx. 1 - 1.5 mm
Installation instructions included in delivery

Technical specifications

Type: LogiLink Cat.6A Field Terminable Plug - Netzwerkanschluss - RJ-45 (M)

Connector type: RJ45 plug enclosure

No. of pins: 8P8C

: CAT 6

Connector standard: RJ45

Connection: RJ45

Weight: 0.022 kg

Factory colour: Black
Silver

Content: 1 pc(s)

Contact material: Phosphorus bronze gold plated

Material: Zinc alloy

Features: Industrial-grade (w/o tools)

Version: Connector

Cable use: Networks

Connection type: Connector

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2464150 LogiLink LogiLink Cat.6A Field Terminable Plug - Netzwerkanschluss - RJ-45 (M) LogiLink LogiLink Cat.6A Field Terminable

User & Safety Instructions

User & Safety Instructions 2464150 LogiLink LogiLink Cat.6A Field Terminable Plug - Netzwerkanschluss - RJ-45 (M) LogiLink LogiLink Cat.6A Field Terminable

Description

The field-attachable Cat. 6A plug connector by LogiLink enables a simple and fast mounting on site, no matter whether in existing networks or for creating a new link. This high-quality connector can be quickly and easily connected on site and in the field without any special tools. ideal for 10 Gigabit networks or connections.

This text is machine translated.

Scope of delivery

1x cat 6A field-attachable plug
