LogiLink NP0052B 12 ports Patch panel 254 mm (10") CAT 6A 1 U Multicolour
EAN:
Part number:
Item no:

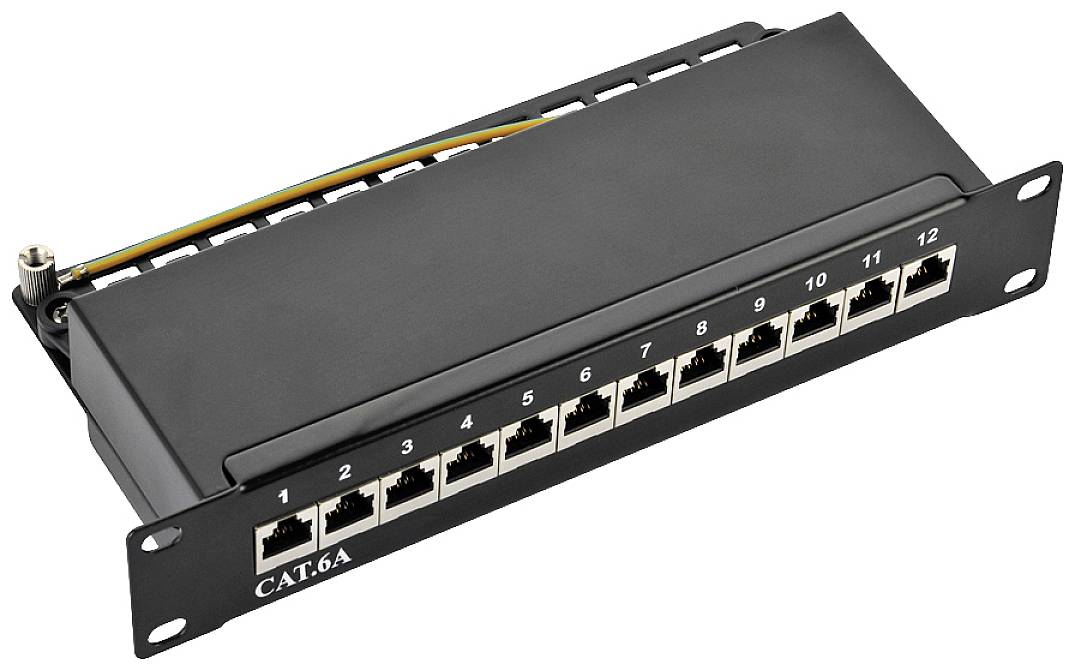

Patch panel 10" mounting Cat. 6A STP 12 ports, black
Highlights & Details
- Cat.6A class EA 500 MHz
- ISO/IEC 11801 AND TIA/EIA 568C.2
- 12 shielded RJ45 sockets
- Steel housing RAL9005 black
- Suitable for 10" cabinet installation, 1 HE
- Supports PoE, PoE+ and PoE++
Technical specifications
- Product type
Patch panel
- Rack size
254 mm (10")
CAT 6A
- Rack unit
1 U
- Port
12 ports
- Width
254 mm
- Height
1 U
- Factory colour
Multicolour
- Weight
0
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2332666 LogiLink NP0052B 12 ports Patch panel 254 mm (10") CAT 6A 1 U Multicolour
Description
Compact small distribution panel for installation in a 10" wall cabinet. Ideally suited for the transmission of digital and analogueue voice, image and data signals of class E (250 MHz) or also EA (500 MHz). Together with the appropriate data cables, this patch field is suitable for all Ethernet applications including 10 Gigabit Ethernet, PoE and PoE+.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1x patch panel
