LogiLink NP0061 24 ports Patch panel 483 mm (19") CAT 6A 1 U Black Equipped
EAN:
Part number:
Item no:

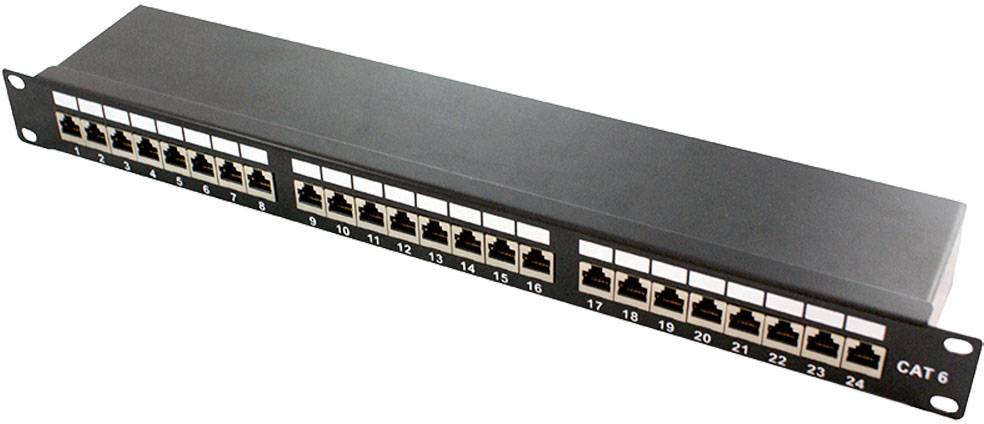

Patch panel Cat. 6A 24 ports STP, 19" mounting, black
Highlights & Details
- Patch panel Cat. 6A STP 24 ports shielded
- Cat.6A Class EA 10G 500 MHz Permanent Link
- Conforms to ISO/IEC 11801 and TIA/EIA 568
- 24 shielded RJ45 ports, one height unit
- Shielded metal housing for 19" installation
- For AWG22 to AWG24 installation cable
- Color: Black RAL 9005
- Including mounting material
- Supports PoE, PoE+ and PoE++
Technical specifications
- Product type
Patch panel
- Rack size
483 mm (19")
CAT 6A
- Rack unit
1 U
- Transfer rate
10 GBit/s
- Port
24 ports
- Patch panel design
Equipped
- Width
48.26 cm
- Height
1 U
- Factory colour
Black
- Weight
1.619
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2332658 LogiLink NP0061 24 ports Patch panel 483 mm (19") CAT 6A 1 U Black Equipped
Description
Compact high-quality distribution panel for installation in the 19" cabinet. Ideally suited for the transmission of digital and analogueue voice, image and data signals of class E (250 MHz) or also EA (500 MHz). Together with the appropriate data cables, this patch field is suitable for all Ethernet applications including 10 Gigabit Ethernet, PoE and PoE+.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1x patch panel
Hints
