Buy LogiLink NP0063 24 ports Patch panel 483 mm (19") CAT 6A 0.5 U Black Equipped

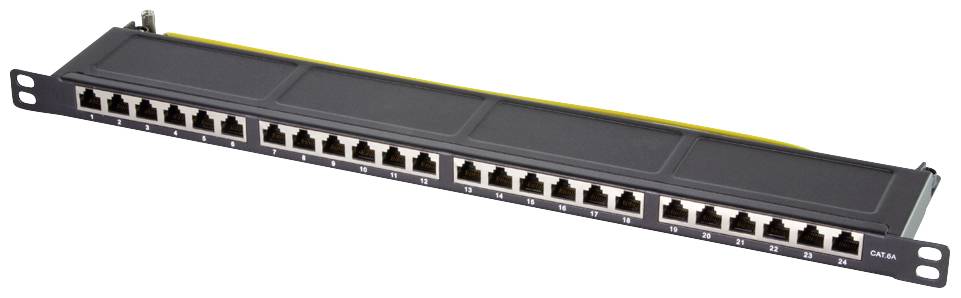

A 24-port patch panel with RJ45 ports, which can be mounted in a network rack. Suitable for organising network cables.

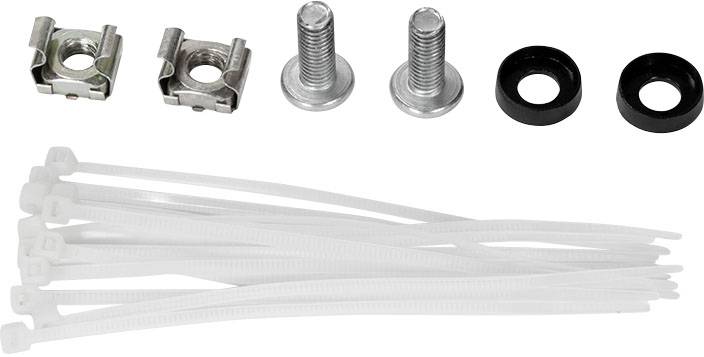

Metal nuts, bolts and black washers above; white cable ties underneath. Accessories for assembly or mounting.

A brown cardboard box labelled 'LogiLink Patch Panel Network'. A label describes the Cat6A Patch Panel with 24 STP ports.

A network patch panel with 24 Ethernet ports for organising and connecting network cables in a rack-mount system.

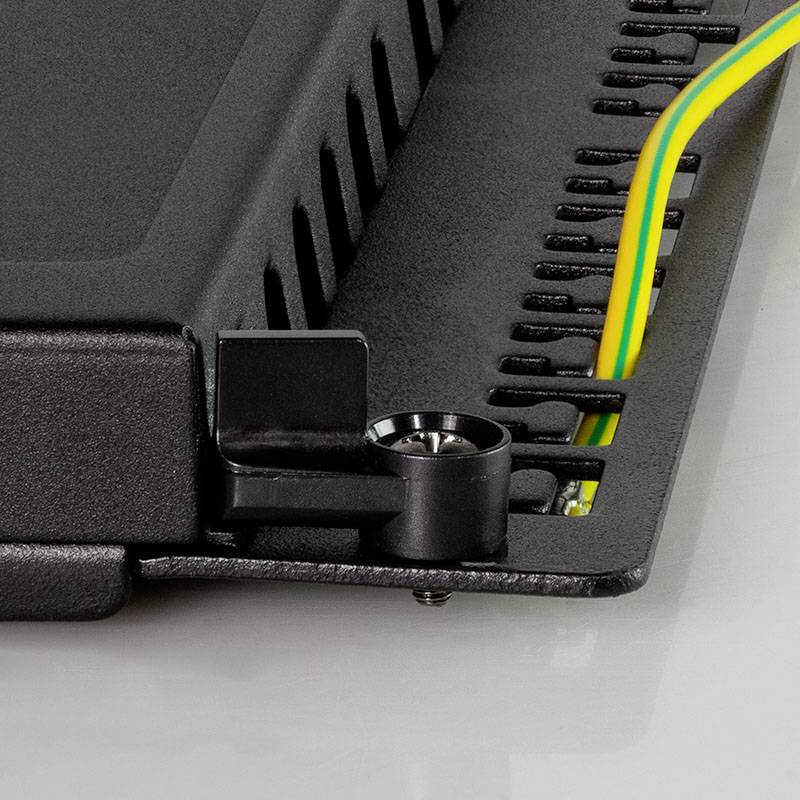

Close-up of an industrial device with a black casing and a fixed mounting bracket; yellow and green cables are visible.

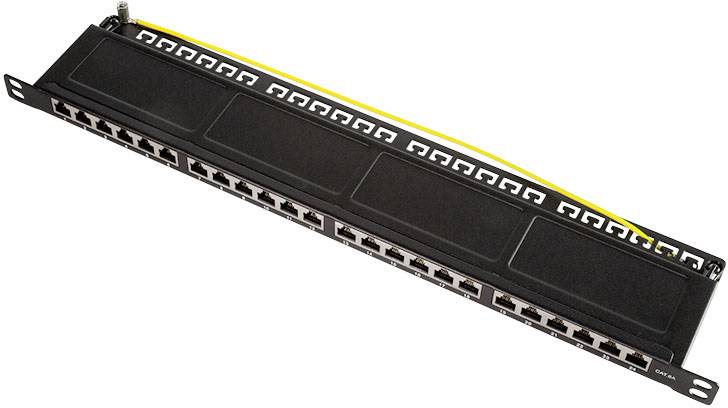

Patch panel with 24 RJ45 ports in a rack-mounted configuration. Yellow cables are visible on the rear side.

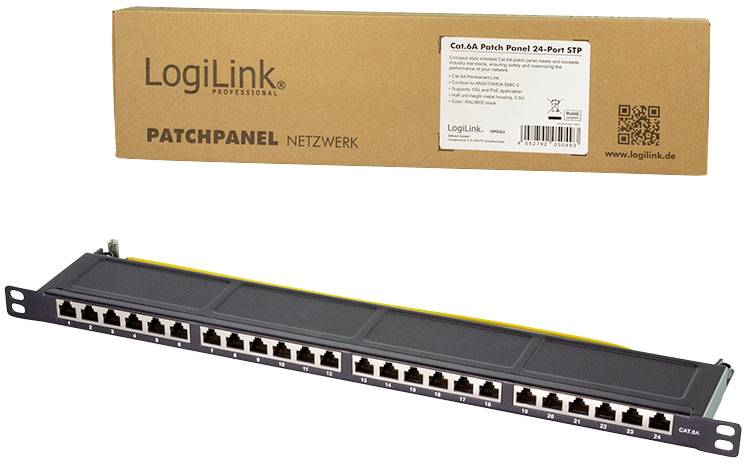

'LogiLink Cat.6A Patch Panel 24-Port' and packaging. Black panel with 24 Ethernet ports for network connections, professional.

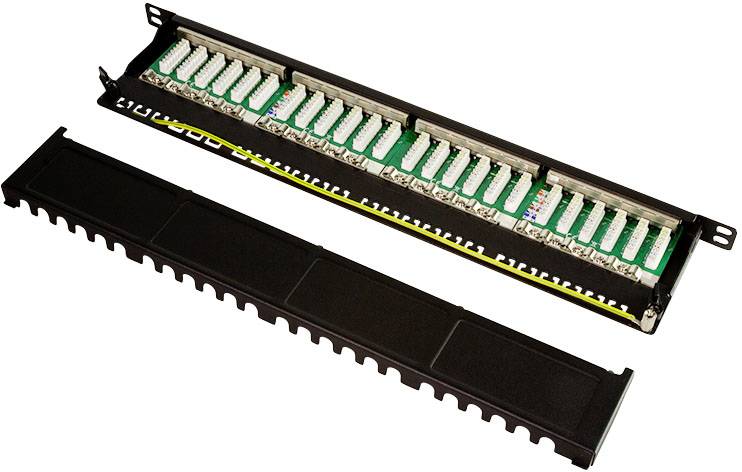

Patch panel with multiple cable connections, opened. Shows internal wiring and cables for network organisation.

1/9

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Patch panel Cat. 6A 24 ports STP, 19" mounting 0.5 HE, black

Highlights & Details

Ultra-compact - only half height (0.5 HE)
Cat.6A Class EA 10G 500 MHz Permanent Link
Conforms to ISO/IEC 11801 and TIA/EIA 568
24 shielded RJ45 sockets
0.5 HE - robust 19" metal housing 0.5 HE
For AWG22 to AWG24 installation cable
Color: RAL 9005 black
Including mounting material
Supports PoE, PoE+ and PoE++

Technical specifications

Product type: Patch panel

Rack size: 483 mm (19")

: CAT 6A

Rack unit: 0.5 U

Transfer rate: 10 GBit/s

Port: 24 ports

Patch panel design: Equipped

Width: 483 mm

Height: 0.5 U

Factory colour: Black

Weight: 0

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2332660 LogiLink NP0063 24 ports Patch panel 483 mm (19") CAT 6A 0.5 U Black Equipped

Description

Compact high-quality distribution panel for installation in the 19" cabinet. Ideally suited for the transmission of digital and analogueue voice, image and data signals of class E (250 MHz) or also EA (500 MHz). Together with the appropriate data cables, this patch field is suitable for all Ethernet applications including 10 Gigabit Ethernet, PoE and PoE+. Particularly compact due to half height (0.5 HE).

This text is machine translated.

Scope of delivery

1x patch panel
