Buy LogiLink NS1324 NS1324 19" switch box 24 ports 48 Gbit/s

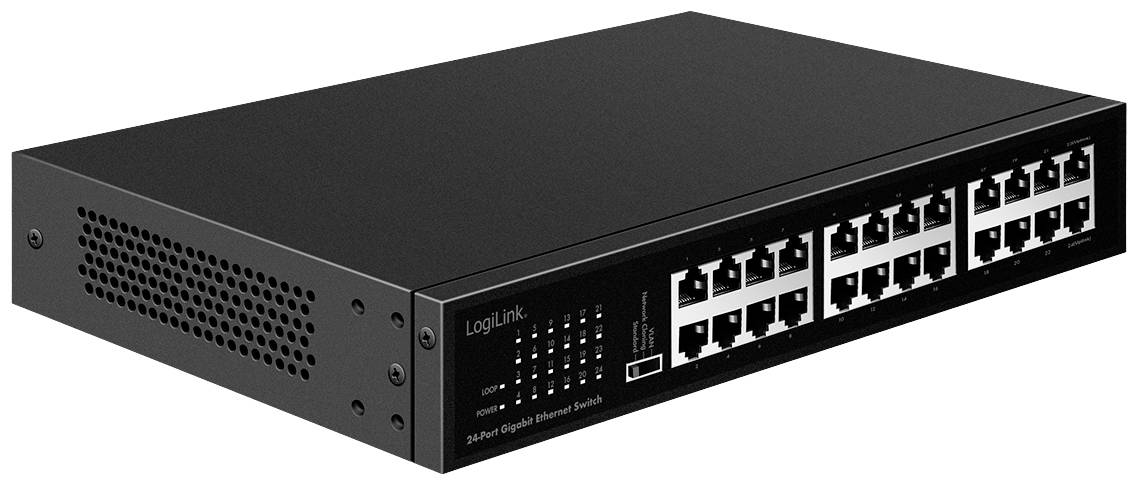

A 24-port Gigabit Ethernet switch with a black casing. Ventilation slots are located on the left, with network cable connections on the right.

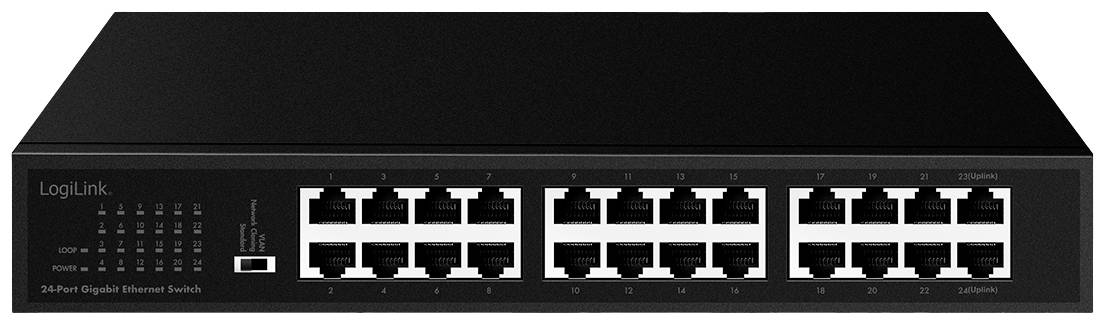

'24-Port Gigabit Ethernet Switch by LogiLink with LEDs for status indication, suitable for network expansion in office environments.'

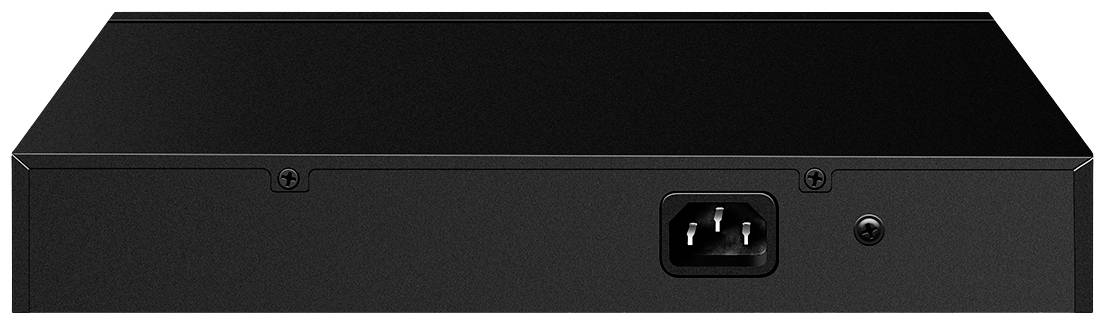

A black electronic device with a power socket and an on/off switch on the back.

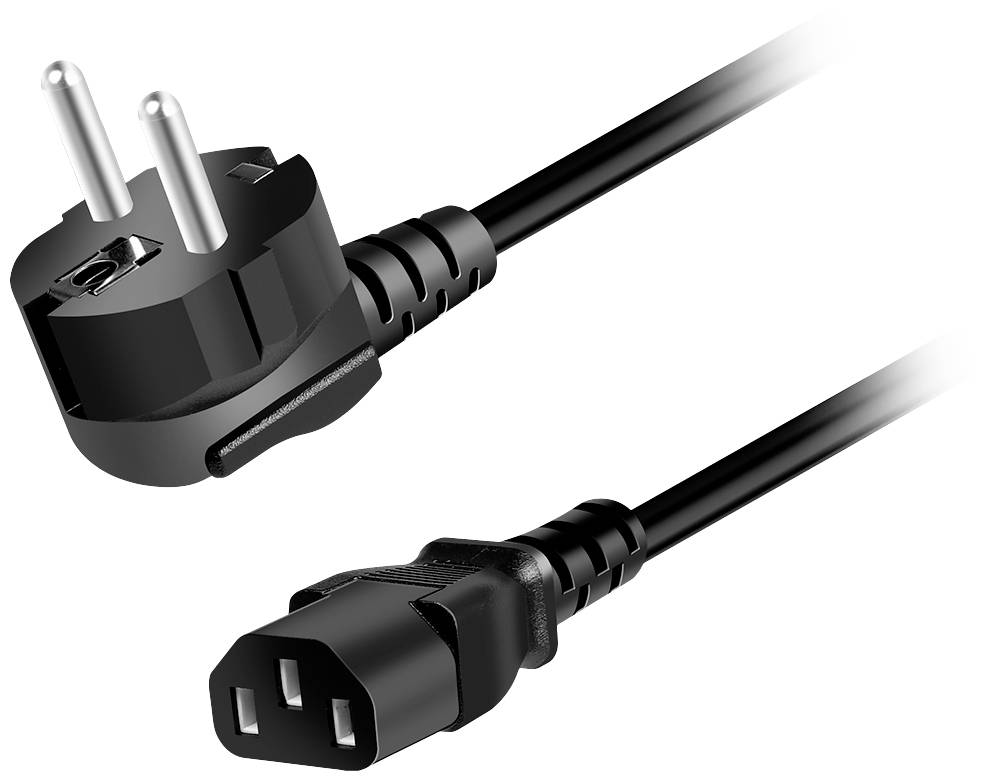

A black power cable with a Schuko plug and a C13 connector, suitable for connecting devices to the power supply.

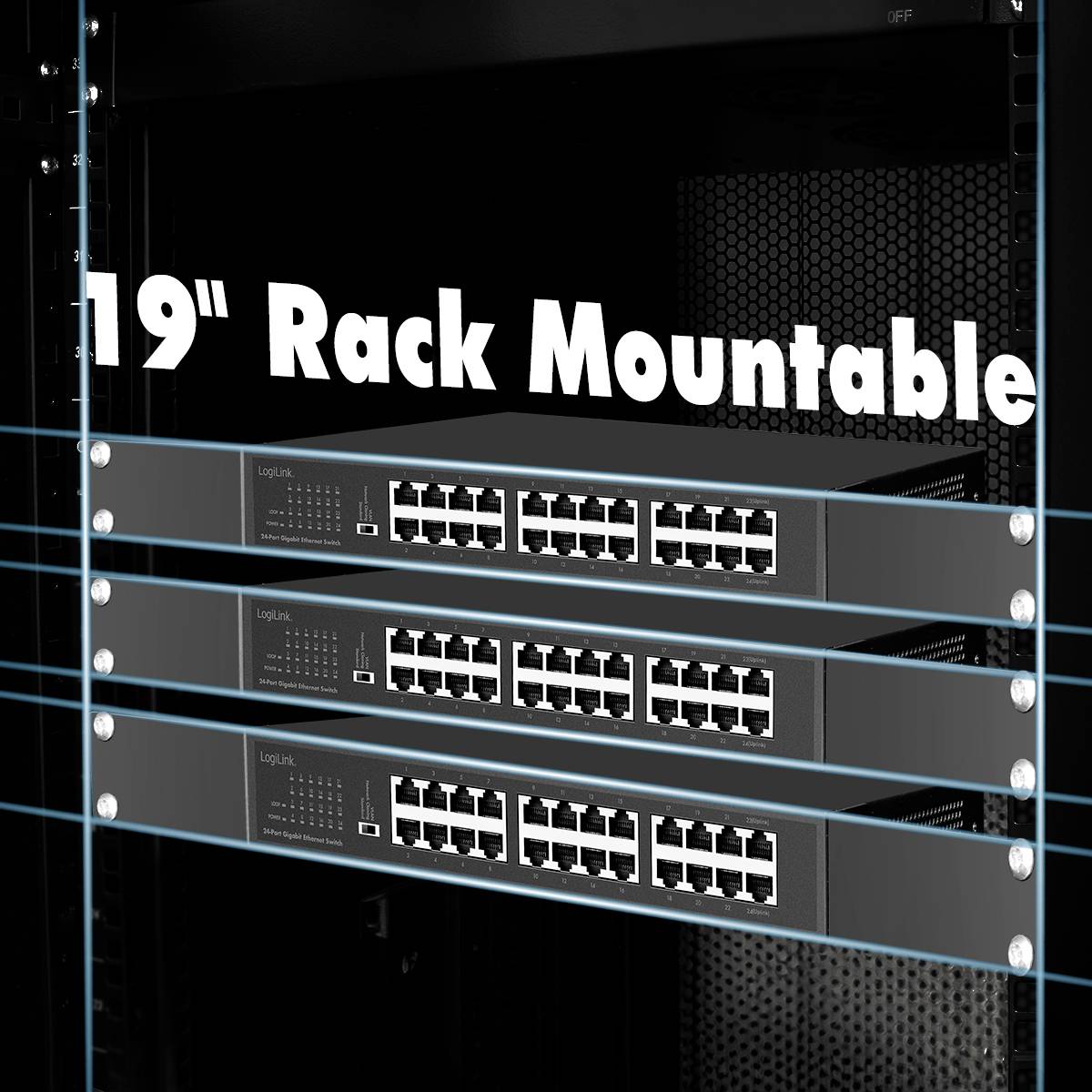

Three 19-inch rack-mountable network switches in a server rack, with the text '19" Rack Mountable'.

'Network switch with multiple ports in the foreground, with a conference room with screen presentations blurred in the background.'

Network switch with 24 RJ45 ports and 10,000 Mbps speed against a blurred background. Text 'Reliable Speeds'.

1/7

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

24-Port Gigabit Ethernet Network Switch, Table installation or 19" installation

Highlights & Details

24x Gigabit ports with auto-tuning and Auto-MDI/MDIX
Unmanaged, easy to use, no configuration, plug & play
Supports low power consumption (IEEE 802.3az)
Conforms to IEEE 802.3, 802.3u, 802.3ab, 802.3x and IEEE 802.1q
IEEE802.3x flow control for full duplex and back pressure for half duplex
8K MAC address table with auto-learning and auto-aging
Support of loop recognition and loop prevention
Robust metal case for table installation or installation in a 19" cabinet
Internal power supply, 100–240 VAC, 50/60 Hz
Instructions, rack kit and power cable included

Technical specifications

Product type: 19" switch box

LAN transfer rate: 1000 MBit/s

Transfer rate: 48 Gbit/s

Working principle: Unmanaged switch

Ethernet ports: 24

No. of 100 Mbps/1Gbps/10Gbps ports: 24 x

10/100/1000 Mbps ports: 24 x

Auto-uplink at each port: Yes

Jumbo frames: Yes (built-in)

Power supply (LOV): mains-powered

MAC addresses: 8000

Weight: 1400 g

Width: 180 mm

Height: 44.5 mm

Depth: 290 mm

Type: NS1324

Rack size: 483 mm (19")

Interfaces: Gigabit LAN (1 Gbps)

Factory colour: Black

Port: 24 ports

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3129235 LogiLink NS1324 NS1324 19" switch box 24 ports 48 Gbit/s

User & Safety Instructions

User & Safety Instructions 3129235 LogiLink NS1324 NS1324 19" switch box 24 ports 48 Gbit/s

Description

The 24-port gigabit switch from LogiLink is the ideal solution for small and medium-sized companies, in order to extend or upgrade their network quickly and easily. Thanks to its compact and robust design, the switch is suitable for tabletop or shelf installation as well as for installation in a 19" cabinet (installation kit included in the delivery). The NS1324 by LogiLink has the latest innovative and energy-efficient technology. The switch does not need any additional software or complicated configuration.

This text is machine translated.

Scope of delivery

1 x 24 ports Gigabit Ethernet switch
1 x 19" rack mount kit
1 x AC power cable
4 x pads
1 x Operating manual
