Buy LogiLink PA0161A PSU 12 V 2 A Adjustable voltage output, Surge protection

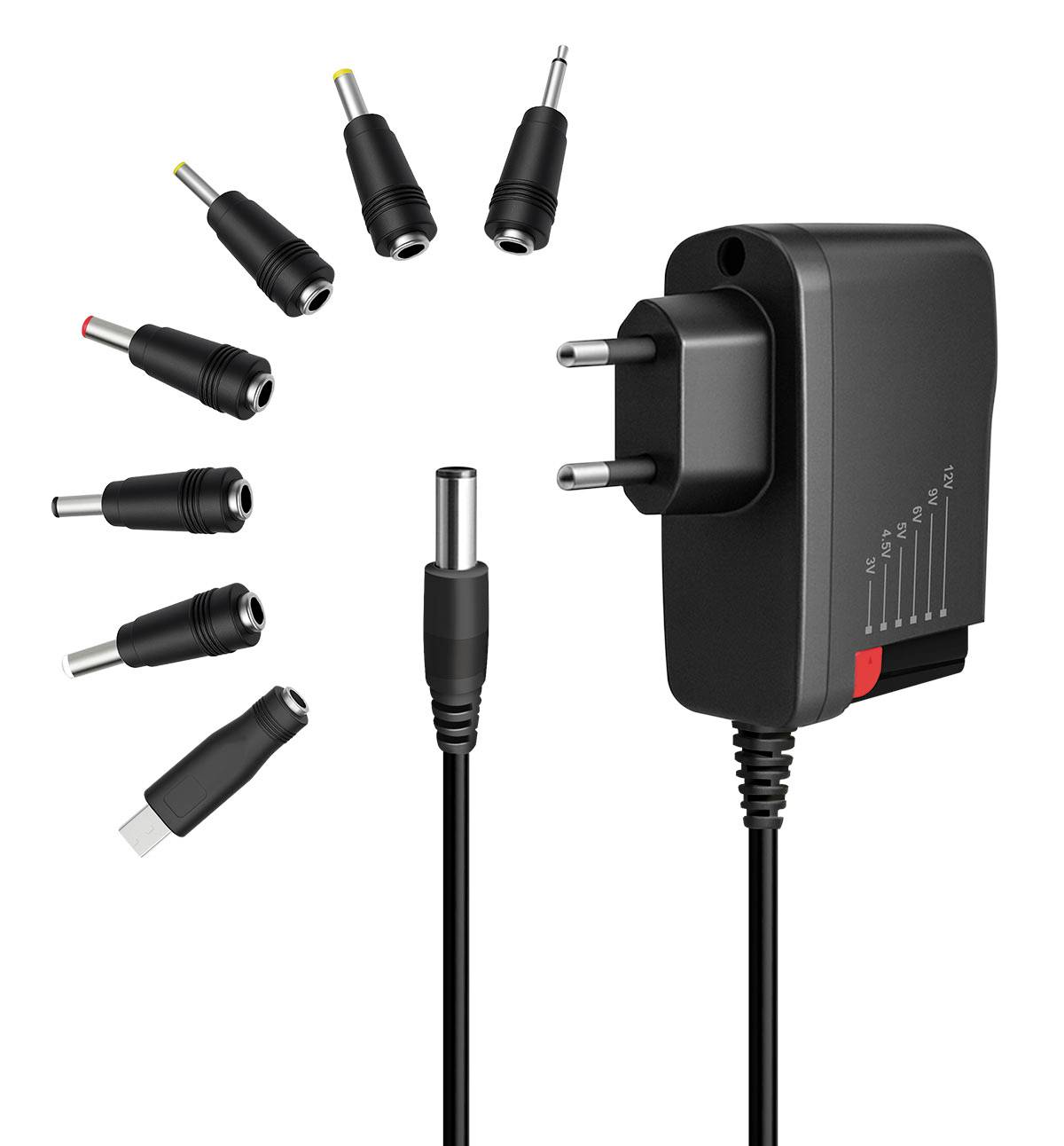

Universal power adapter with interchangeable plug tips and a DC barrel connector, showing compatibility for multiple devices and outlets.

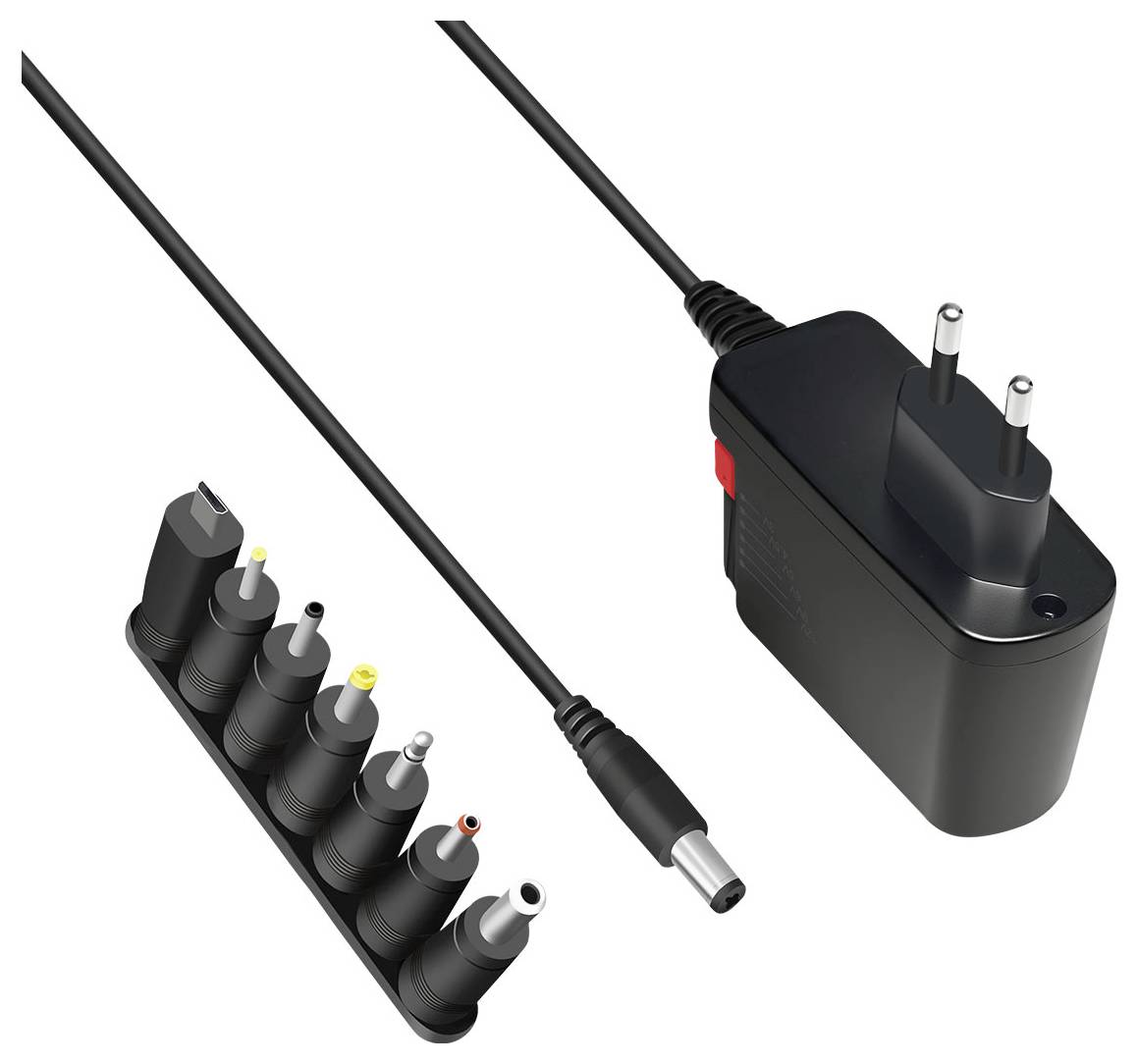

Universal AC power adapter with interchangeable plug tips and cable, shown with a European two-pin wall plug and multiple connector ends.<br>

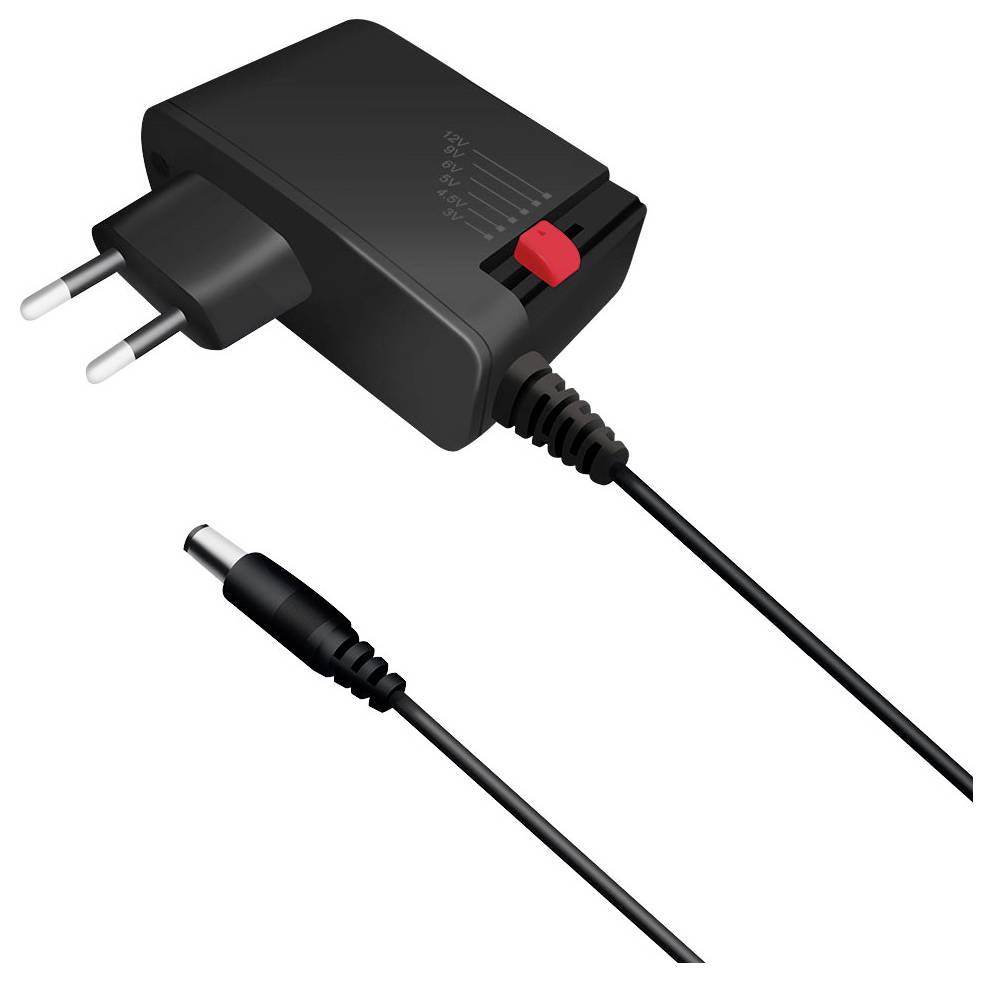

Black power adapter with two-prong plug, red slider switch, and attached DC barrel connector cable on white background.

Advertisement for a versatile use cable adapter, showing two black connectors on a teal background with the text 'Vielseitig Einsetzbar' and a list of compatible devices in German and English.

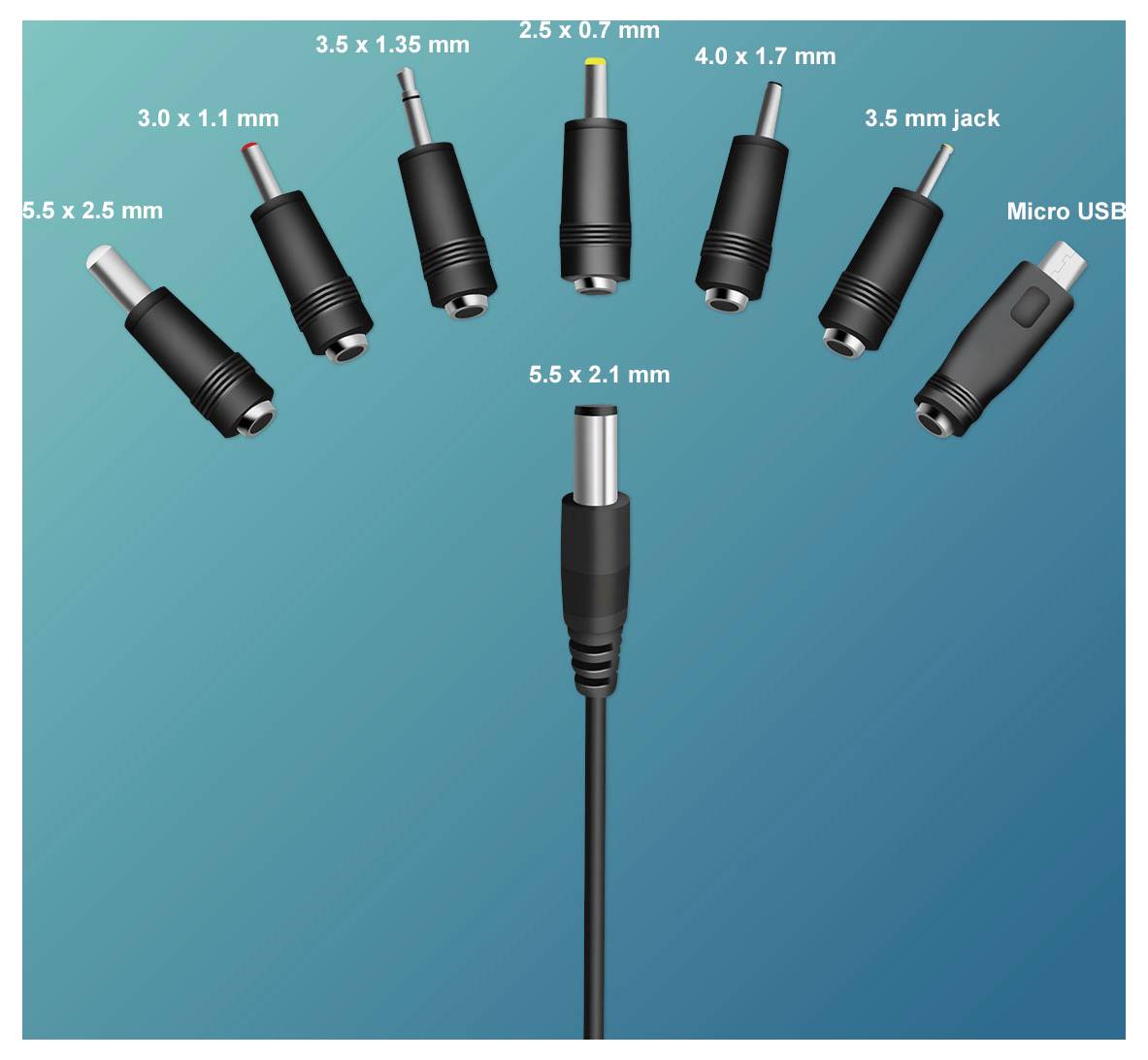

Diagram of power and device connector tips labeled with sizes: 5.5 x 2.5 mm, 3.0 x 1.1 mm, 3.5 x 1.35 mm, 2.5 x 0.7 mm, 4.0 x 1.7 mm, 3.5 mm jack, Micro USB, and 5.5 x 2.1 mm.

Person connects a power plug to a white security camera beside a row of 7 interchangeable plug tips; text says '7 plugs, 7 voltages – one solution.'<br>

Advertisement showing a wall charger powering a black cylindrical speaker, with the headline 'One power supply for (almost) everything' in German and English.

LogiLink Universal Power Adapter box showing a 3-12V, 24W adapter with 7 interchangeable tips, multiple protections, and a voltage switch.<br>

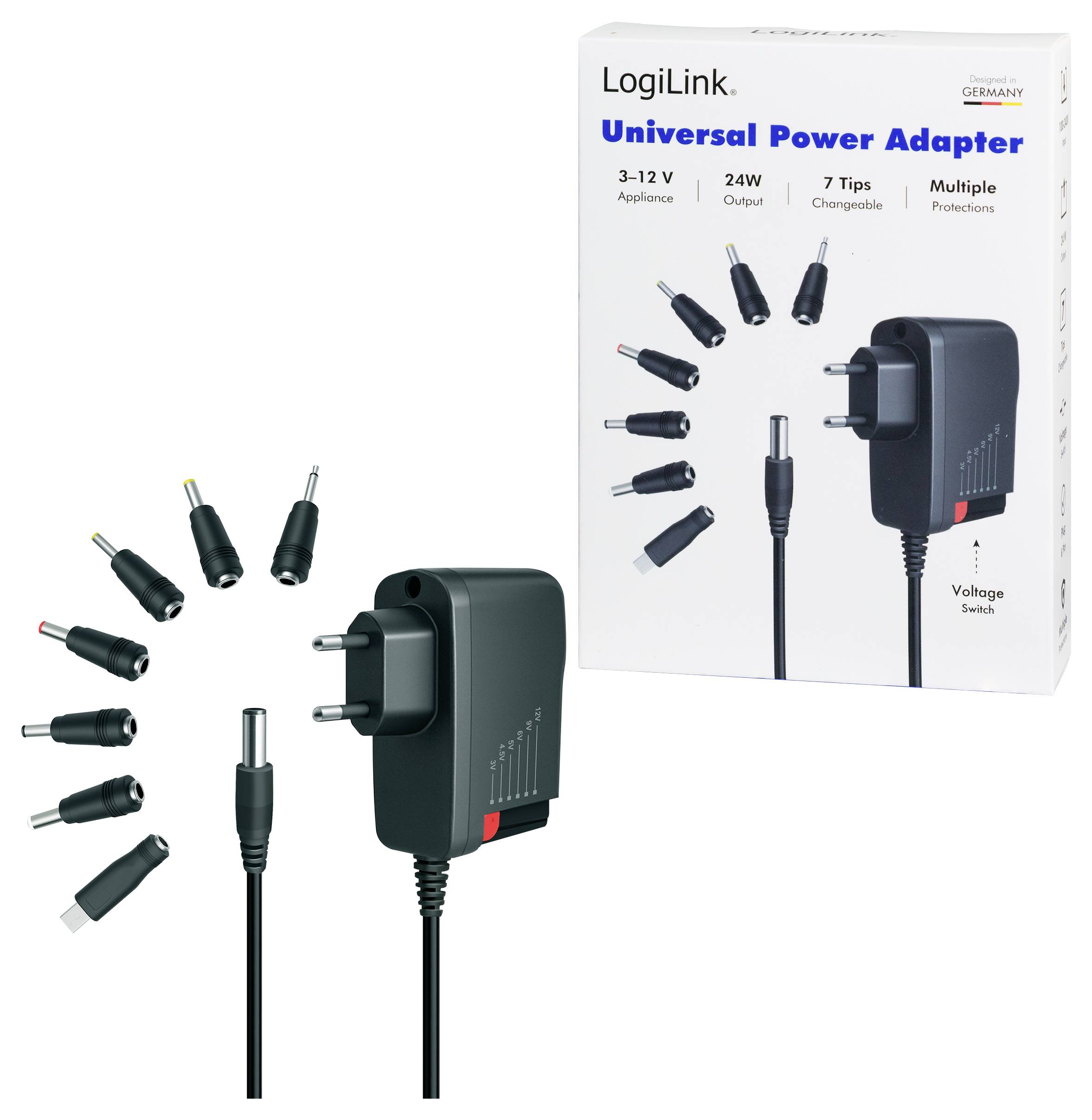

LogiLink universal power adapter with 7 interchangeable plug tips, 3–12V output, shown with product box and voltage switch.

1/9

Fast track dispatch on Wed, 5 Aug

7 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 15.12 / piece)

€ 15.12

plus VAT.

Only 7 Piece(s) available

Report legal concerns

Highlights & Details

LogiLink universal charger, adjustable voltage (V), 7 changeable plugs, can be used for many devices, 4-way protection

Input 100–240 V AC, 50/60 Hz
SELECTABLE OUTPUT VOLTAGE: 3 V / 4.5 V / 5 V / 6 V / 9 V / 12 V
Maximum power: Up to 24 W (constant 2 A at all voltage levels)
Interchangeable adapters: 5.5x2.5 mm, 3.5x1.35 mm, 3.5mm plug, 4.0x1.7 mm, 3.0x1.1 mm, 2.5x0.7 mm, micro USB
Device protection: Overcurrent, overvoltage, overheating and short circuit
Efficiency class VI
Cable length: 1.5 m

Technical specifications

Product type: PSU

Used at: Indoors

Type: Universal

Max. output current: 2 A

Output voltage: 12 V

Output current (max.) - rounded: 2 A

Output: 2.5/0.7 coaxial connector
3.0/1.0 coaxial connector
3.5/1.3 coaxial connector
4.0/1.7 coaxial connector
5.5/2.5 coaxial connector
3.5 jack
Micro USB

PSU features: Adjustable voltage output
Surge protection

Dim: (L x W x H) 80 x 87 x 32 mm

Weight: 146 g

Cable length: 1.5 m

Width: 87 mm

Height: 32 mm

Length: 80 mm

Type: PA0161A

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3776389 LogiLink PA0161A PSU 12 V 2 A Adjustable voltage output, Surge protection

Description

This versatile power supply serves as an ideal replacement or second adapter for a number of small electronic devices in the home and office, such as digital cameras, routers, game consoles or chargers. It has six manually selectable voltage levels from 3 V to 12 V, which can be set directly at the plug without tools. With seven adapter tips included in the delivery (including micro-USB) it covers the most common connection sockets and offers a maximum output power of up to 24 W.

This text is machine translated.

Scope of delivery

7x changeable adapter tips
1x user manual.
