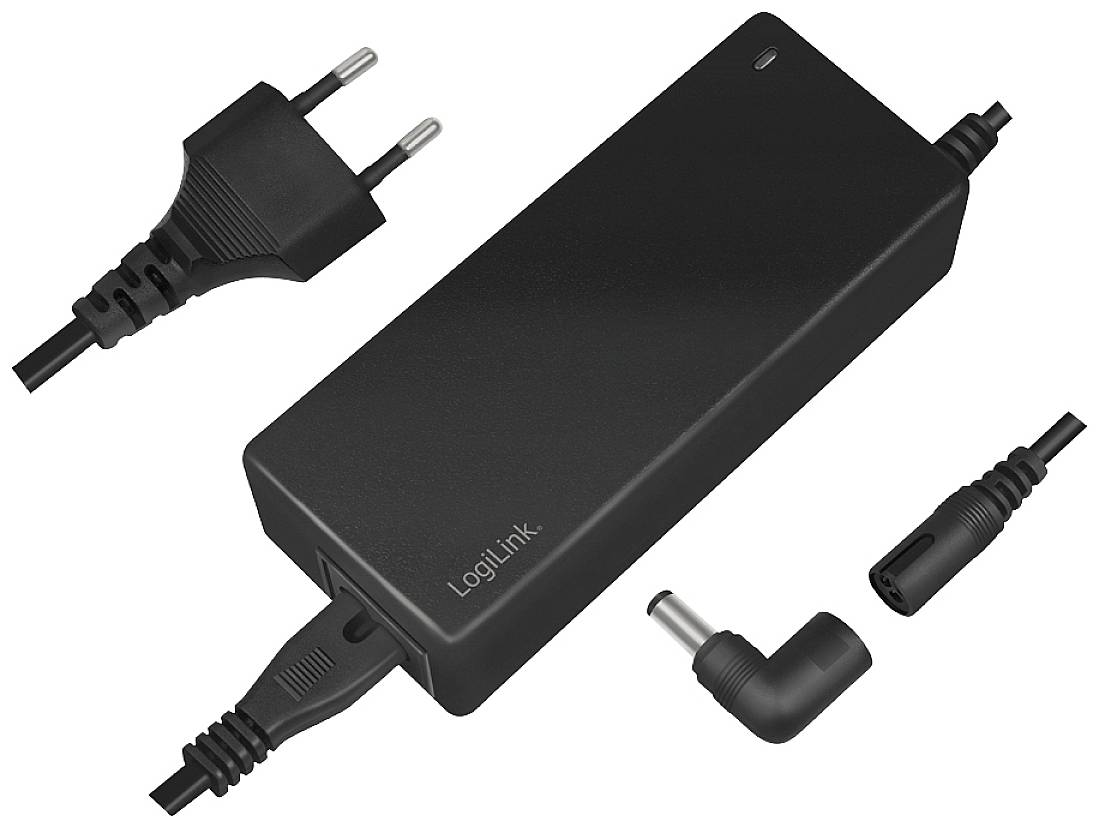

LogiLink PA0215 Laptop PSU 90 W 15 V, 16 V, 18.5 V, 19 V, 19.5 V, 20 V 4.90 A Adjustable voltage output
EAN:
Part number:
Item no:
Datasheet (PDF)
Notebook universal power supply, 90 W
Highlights & Details
- / 4.90 A
- 90 W Power
- Used at: Indoors
- Input voltage range 100 - 240 V
- Suited for notebooks from
Technical specifications
- Product type
Laptop PSU
- Type
PA0215
- Output
5.5/1.7 coaxial connector
5.5/2.1 coaxial connector
5.5/2.5 coaxial connector
6.3/3.0 coaxial connector
7.4/5.0 coaxial connector
90 W
- Inputs
1
- Input voltage
100 - 240 V
- No. of outputs
1 x
- Output voltage
15 V
16 V
18.5 V
19 V
19.5 V
20 V
- Output current (max.) - rounded
4.9 A
- Max. output current
4.90 A
- Dim
(L x W x H) 125 x 55 x 175 mm
- Length
125 mm
- Width
55 mm
- Height
175 mm
- Weight
471 g
- Factory colour
Black
- Used at
Indoors
- PSU features
Adjustable voltage output
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2620531 LogiLink PA0215 Laptop PSU 90 W 15 V, 16 V, 18.5 V, 19 V, 19.5 V, 20 V 4.90 A Adjustable voltage output
User & Safety Instructions
User & Safety Instructions 2620531 LogiLink PA0215 Laptop PSU 90 W 15 V, 16 V, 18.5 V, 19 V, 19.5 V, 20 V 4.90 A Adjustable voltage output
Description
With the universal power supplies, you can charge different notebooks with the same charger. Simply attach the appropriate adapter and you're ready to go. ideal as a reliable replacement or second power supply for home or office. All-round protection: Over-current, over-voltage, over-heating and short-circuit protection.
This text is machine translated.
This text is machine translated.
Features
- 90 W universal power supply with 9 interchangeable adapters for different notebook modelsReliable replacement or second power supply for home or officeWith overcurrent, overvoltage, overheating and short-circuit protectionInput: AC 100-240 V, 50/60 Hz, 1.5 A max.OUTPUT: 15 V/4.9 A, 16 V/4.9 A, 18.5 V/4.9 A, 19 V/4.7 A, 19.5 V/4.6 A, 20 V/4.5 A, 65 W MAX.Dimensions 137 x 71 x 35 mm (without cable)
Scope of delivery
- 1x Universal power supply
- 9x exchangeable Adpter
- 1x AC power cable
- User manual
