LogiLink PHC0102 MC4/M zu MC4/F Extension Cable length 3 m
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

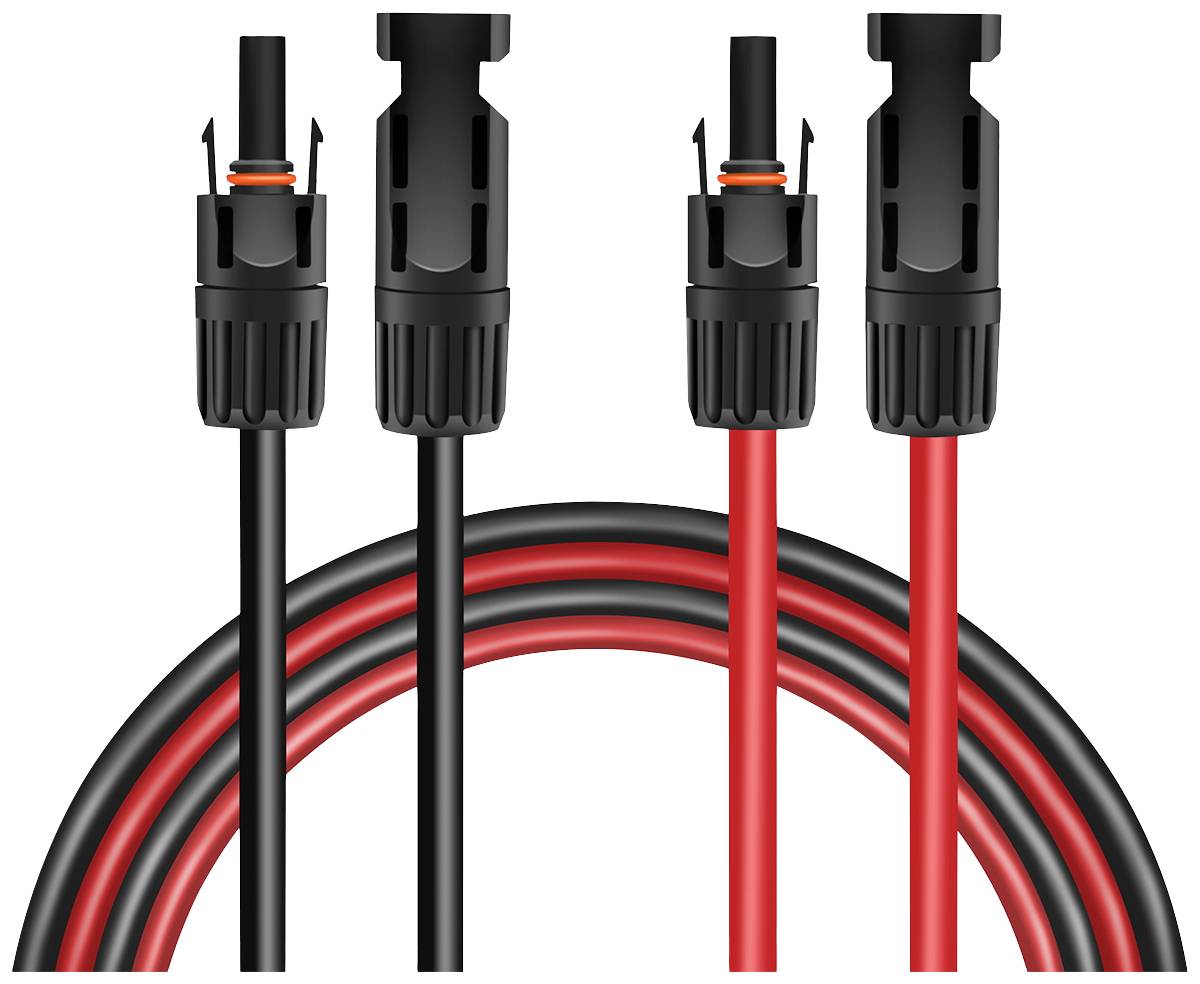

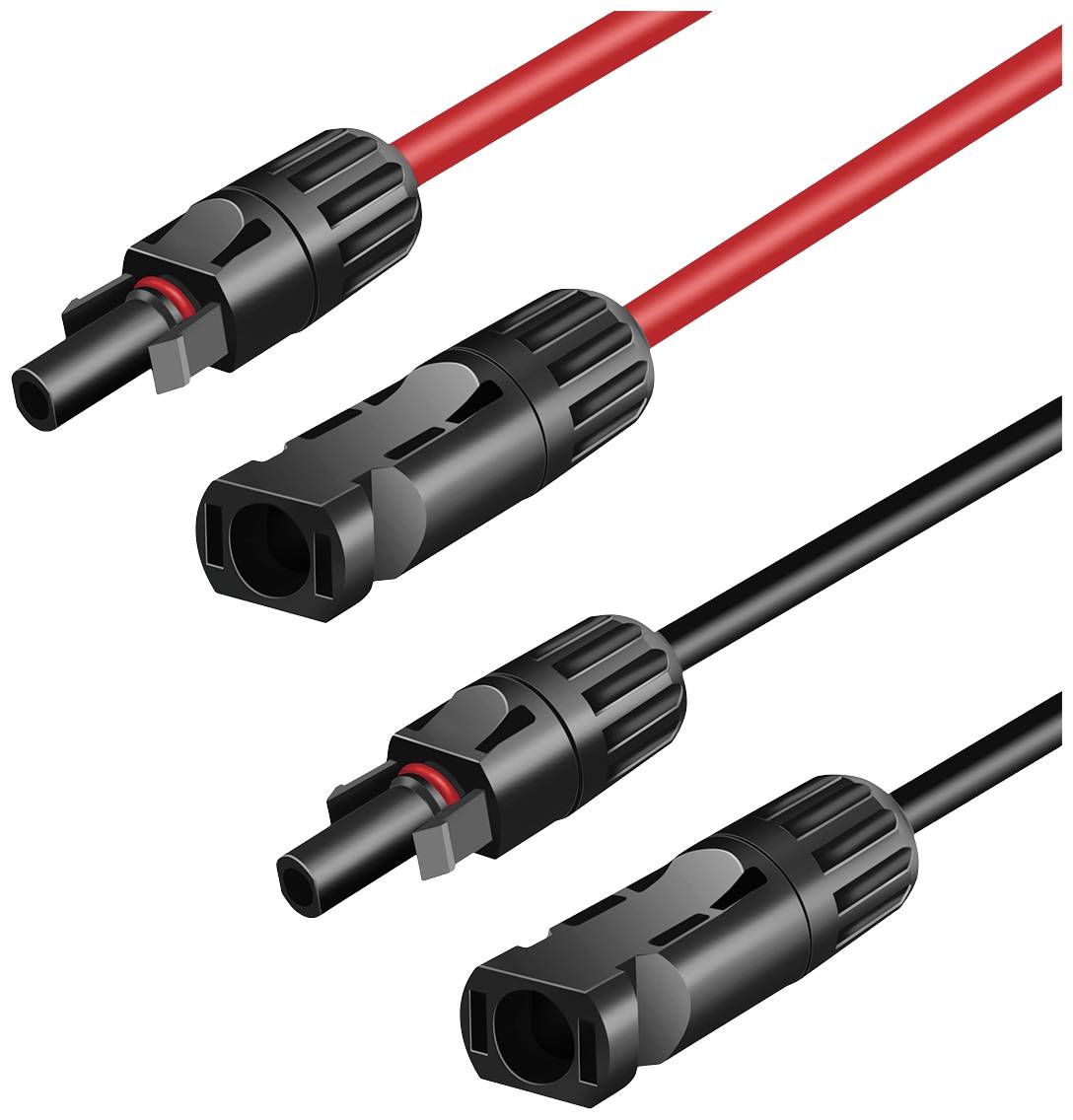

Solar extension cable set, MC4/M for MC4/F, 6 mm², CU, 3 m
- Track 1: MC4 connector (plug)
- Connection 2: MC4 connector (socket)
- 2 cable set for connection to plus and minus poles
- Complies with IEC 60332-1-2
Technical specifications
- Track 1: MC4 connector (plug)
- Connection 2: MC4 connector (socket)
- 2 cable set for connection to plus and minus poles
- Complies with IEC 60332-1-2
- Protection type IP67 ; Fire classification: UL94V-0
- Rated voltage: 1000 V ; Rated current: 30 A (DC)
- Operating temperature range: -40°C to 85°C.
- Wire cross-section: 6 mm²; core material: Copper
- Plastic housing
- Product type
Extension
- Cable length
3 m
- Factory colour
Black
Red
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2992055 LogiLink PHC0102 MC4/M zu MC4/F Extension Cable length 3 m
User & Safety Instructions
User & Safety Instructions 2992055 LogiLink PHC0102 MC4/M zu MC4/F Extension Cable length 3 m
Description
The MC4 solar extension cables by LogiLink are suitable for Ideal for connecting PV-panels to the micro-inverter, because for instance, when using multiple panels for a Photovoltaic-balcony power plant (PV-/solar plant) the available connection cables are often not long enough. The certified and tested cables provide good electrical conductivity, are UV- as well as weather-proof and ensure a good fire protection through the used flame-retardant materials. In the double pack (2x cable) for the plus and minus connections nothing stands in the way of a carefree installation.
