LogiLink PHC0201 H1Z2Z2-K, 6 mm² Cable Cable length 25 m
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

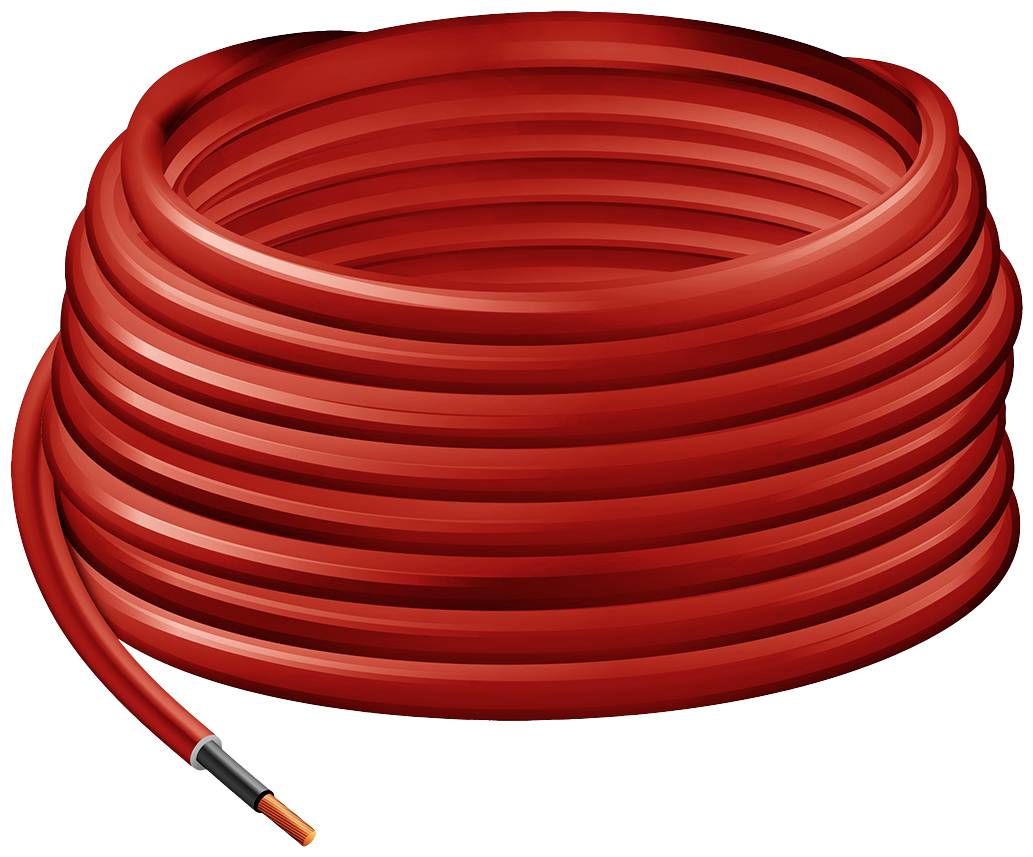

Solar Installation Cable, H1N1 Z2Z2-K, 6 mm², CU, red, 25 m
- Photovoltaic cable H1Z2Z2-K/PV1-F
- Acid and alkali resistant
- Ozone-resistant
- UV-resistant
Technical specifications
- Photovoltaic cable H1Z2Z2-K/PV1-F

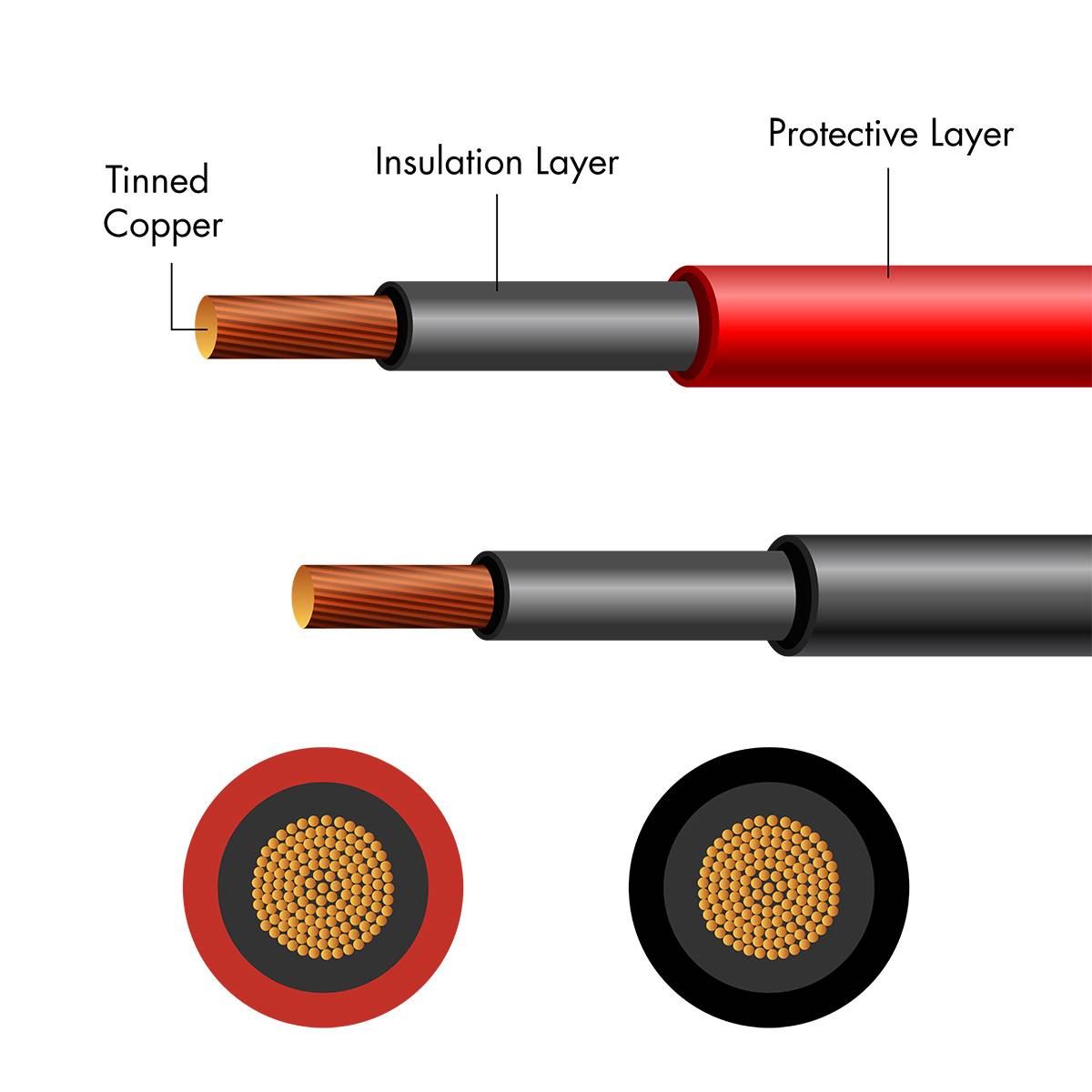

- Copper wire 84 x Ø 0,285 (6 mm²); external diameter 6.6 mm
- Acid and alkali proof according to IEC 60811-2-1
- Ozone-resistant according to EN 50396 UV-resistant according to EN 50289-4-17
- Continuous load test according to EN 60216-2; cold bend test according to EN 60811-1-4
- Halogen test according to EN 60754-1 & EN 60754-2
- Test of vertical flame propagation according to EN 60332-1-2
- Max. DC resistance at 20 °C, 3.39 Ohm/km.
- Nominal current 60 A
- Product type
Cable
- Cable length
25 m
- Factory colour
Red
- Version
Adapter
Cable
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2992060 LogiLink PHC0201 H1Z2Z2-K, 6 mm² Cable Cable length 25 m
User & Safety Instructions
User & Safety Instructions 2992060 LogiLink PHC0201 H1Z2Z2-K, 6 mm² Cable Cable length 25 m
Description

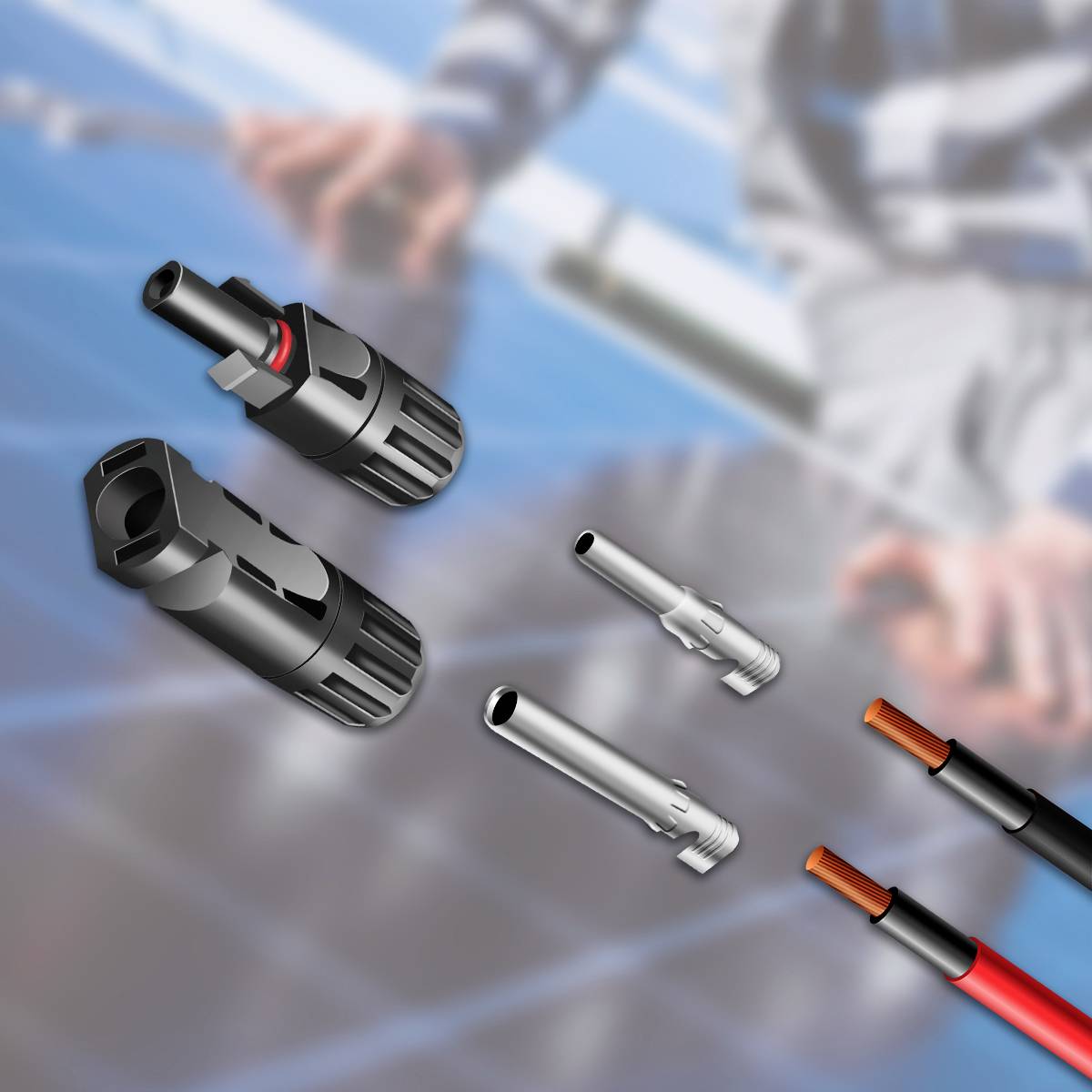

This high-quality solar power cable with copper inner conductor from LogiLink is suitable for Ideal for making short extension cables (for example MC4 cables) or for cabling the solar/PV-modules. The installation cable is suitable for use in and on insulated devices and systems (protection class II).
