LogiLink PHC0400 DC7909/M zu 2x MC4/MF PV connector Cable length 0.3 m
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

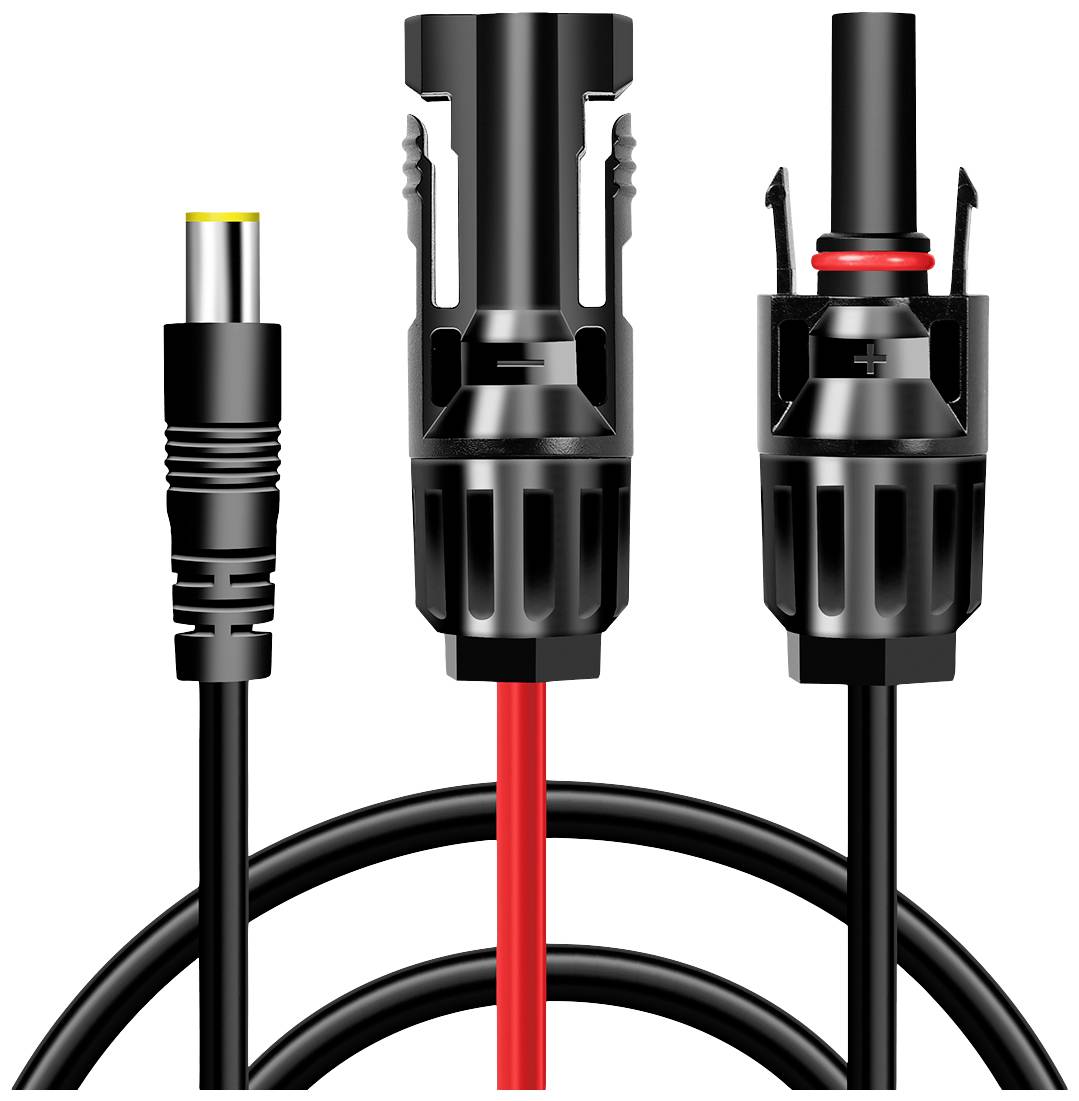

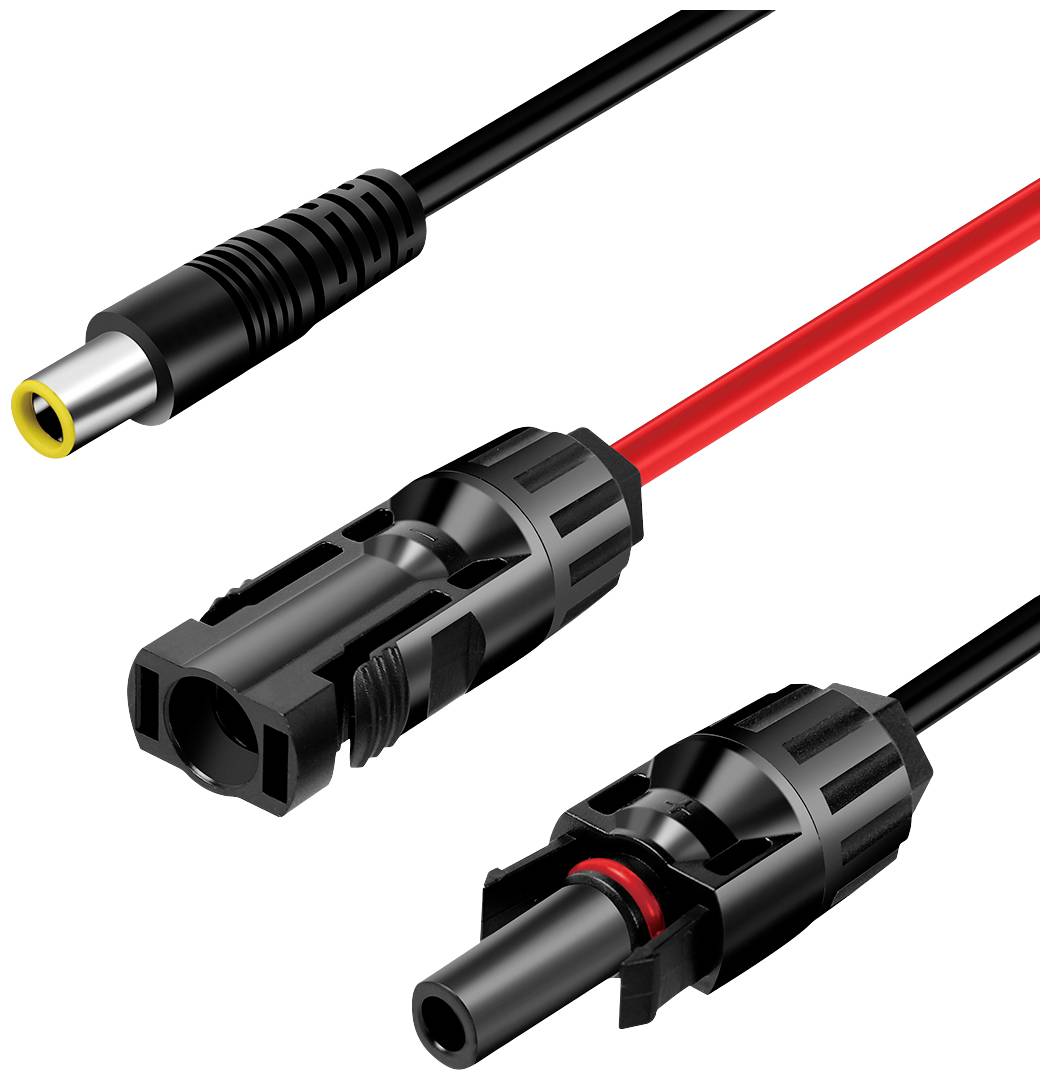

Solar adapter cable, DC7909/M for 2x MC4/MF, CU, black/red, 0.3 m
- Solar adapter cable for the connection of a solar module at a power inverter or a Power station
- Track 1: DC7909 (plug)
- Connection 2: 2x MC4 connectors (plug/socket)
- Complies with IEC 60332-1-2 and UL2464
Technical specifications
- Track 1: DC7909 (plug)
- Connection 2: 2x MC4 connectors (plug/socket)
- Complies with IEC 60332-1-2 and UL2464

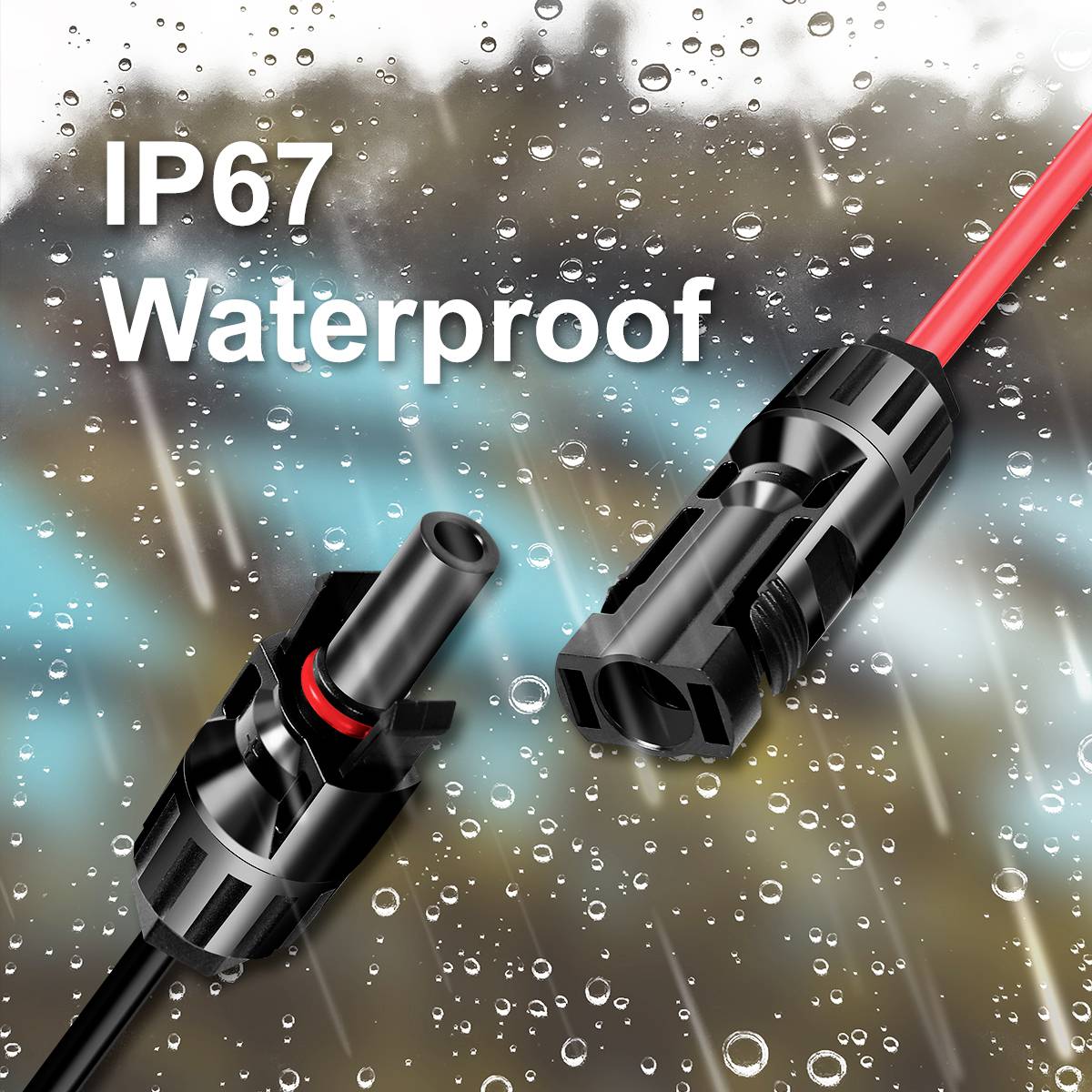

- Protection type IP67 ; Fire classification: UL94V-0
- Rated voltage: 1000 V ; Rated current: 30 A (DC)
- Operating temperature range: -40°C to 85°C.
- Wire cross-section: AWG16 ; wire material: Copper
- Plastic housing
- Product type
PV connector
- Cable length
0.3 m
- Factory colour
Black
Red
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2992064 LogiLink PHC0400 DC7909/M zu 2x MC4/MF PV connector Cable length 0.3 m
User & Safety Instructions
User & Safety Instructions 2992064 LogiLink PHC0400 DC7909/M zu 2x MC4/MF PV connector Cable length 0.3 m
Description

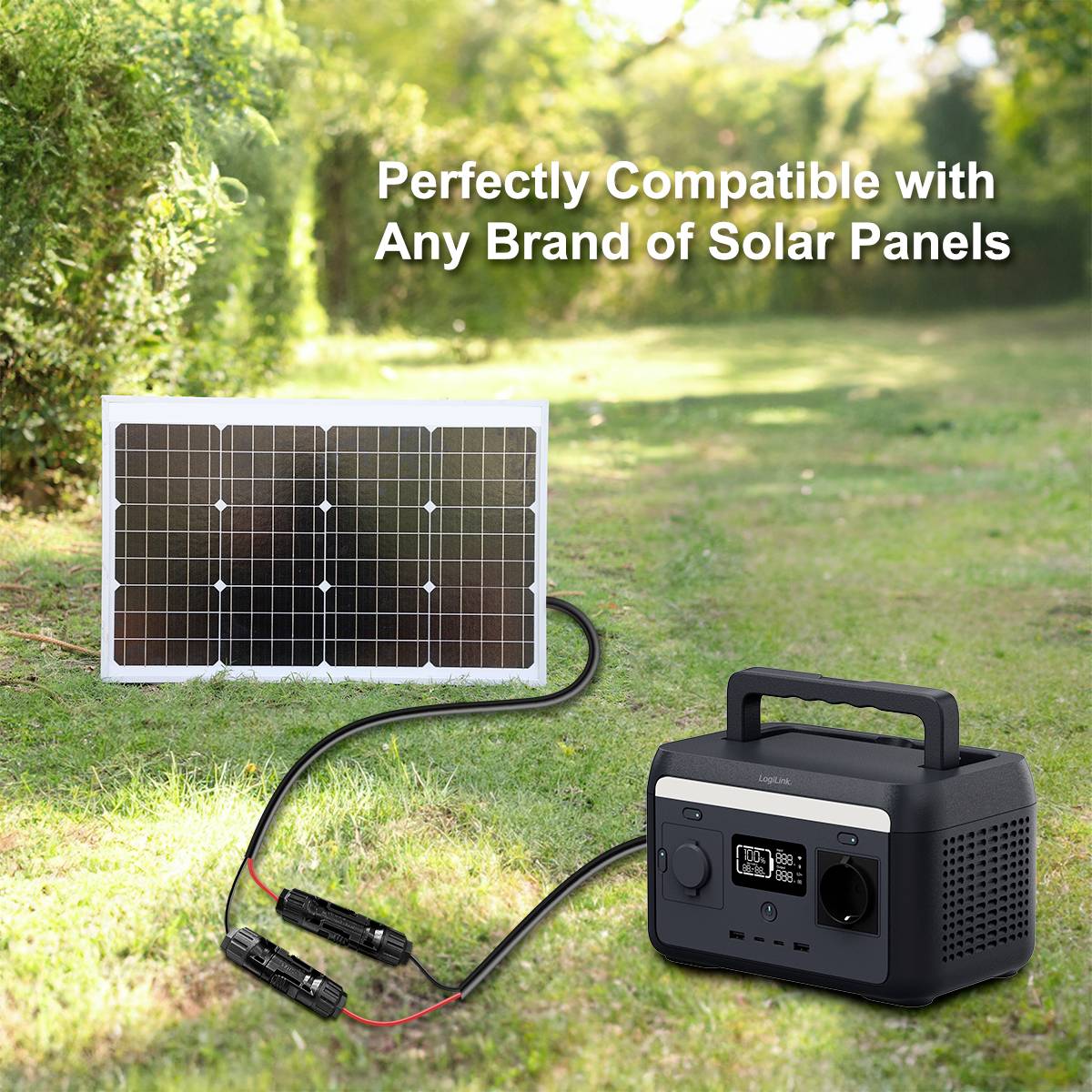

The solar adapter cable from LogiLink are suitable for Ideal mobile PV-panels with DC7909 connection to the Micro-inverter and use the panels alternatively as balcony power station. Also you can attach stationary panels of your balcony power plant with this adapter cable to a power station and charge this. The cable for direct current made of durable plastic and high quality copper wire have an excellent resistance against aging and UV rays. The cabling is rain-proof and can withstand extreme heat and cold.
