LogiLink PHC0401 DC7909/M zu 2x Multi-Contact 4/MF PV connector Cable length 1.8 m
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Solar adapter cable, DC7909/M for 2x MC4/MF, CU, black/red, 1.8 m

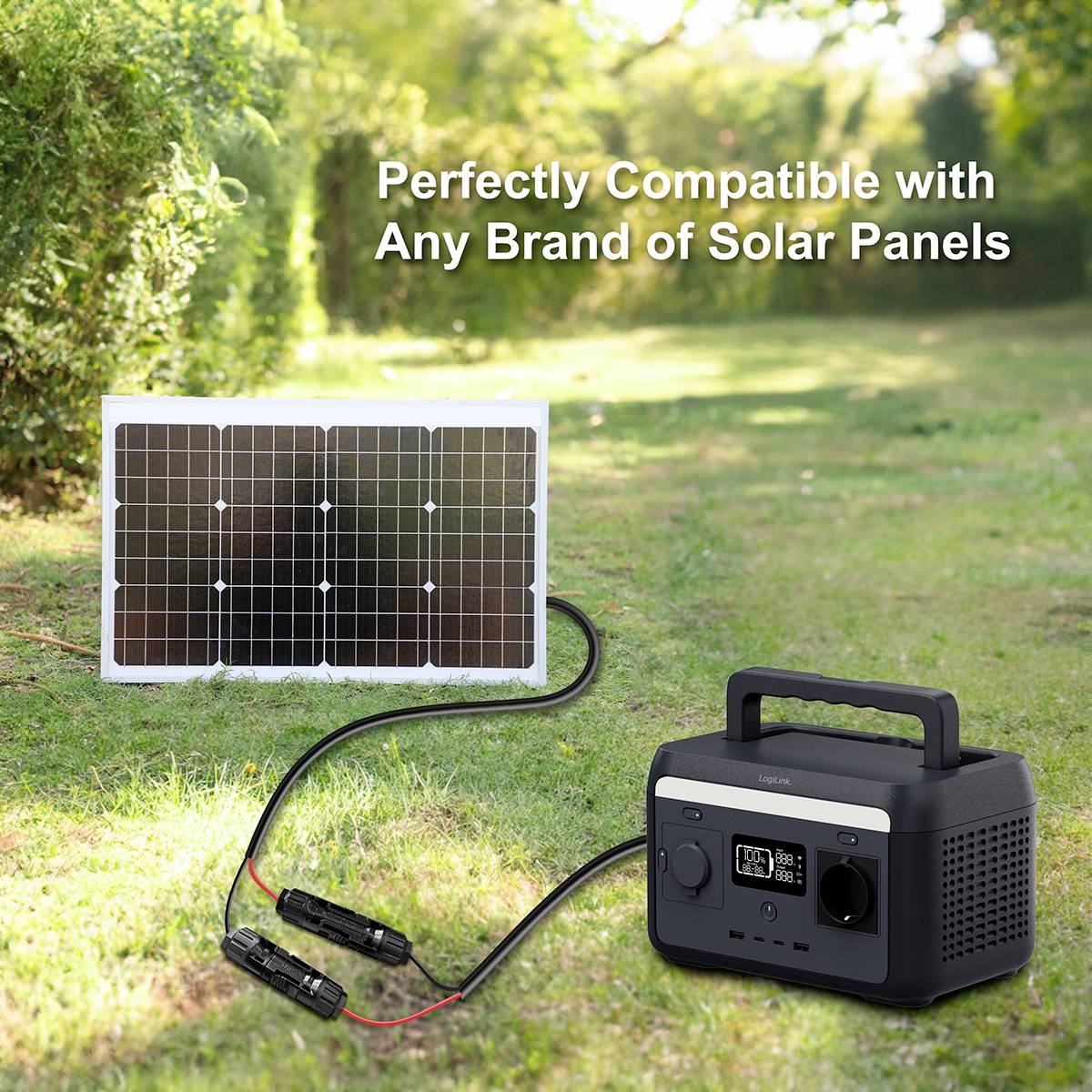

- Solar adapter cable for the connection of a solar module at a power inverter or a Power station

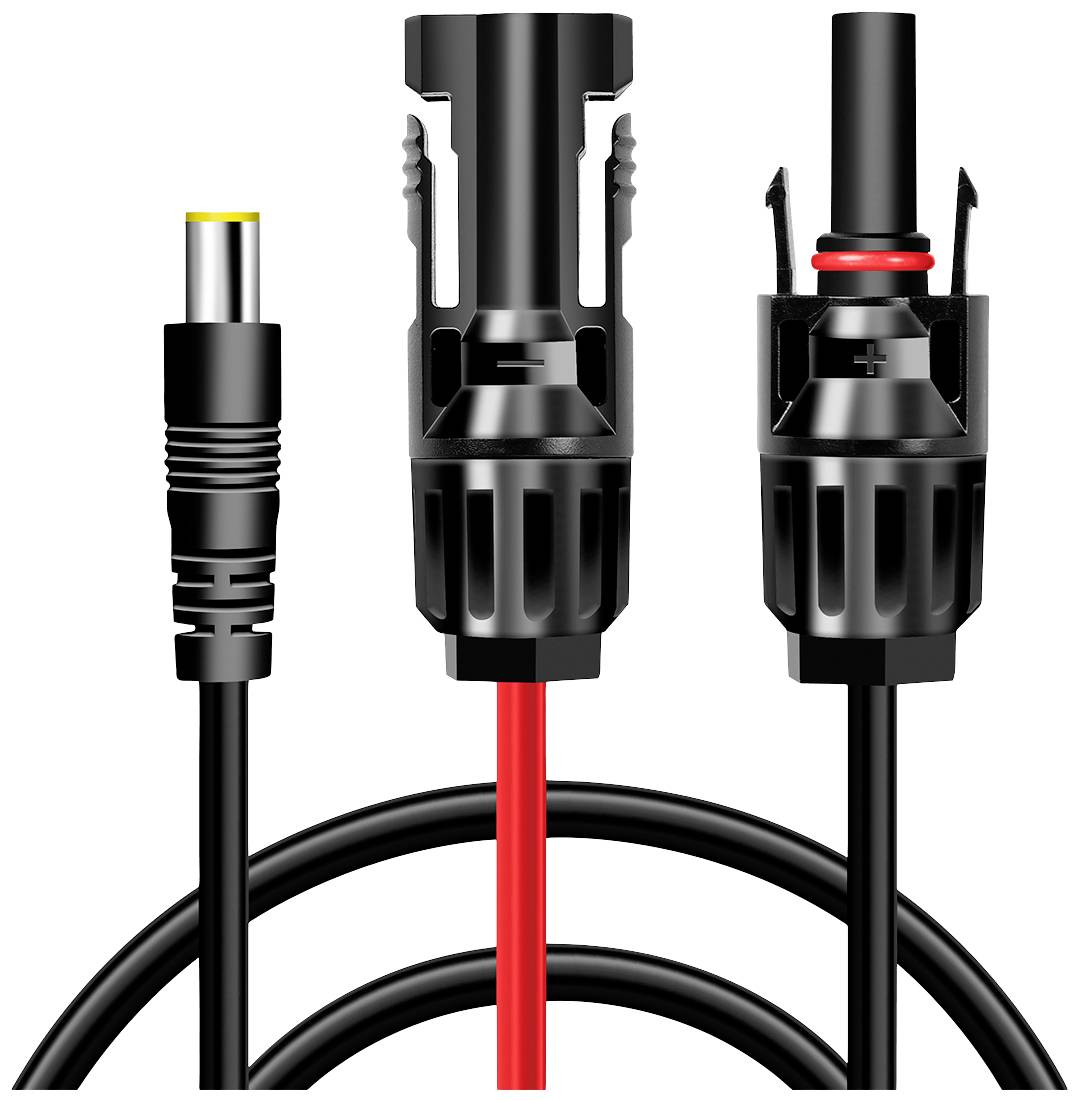

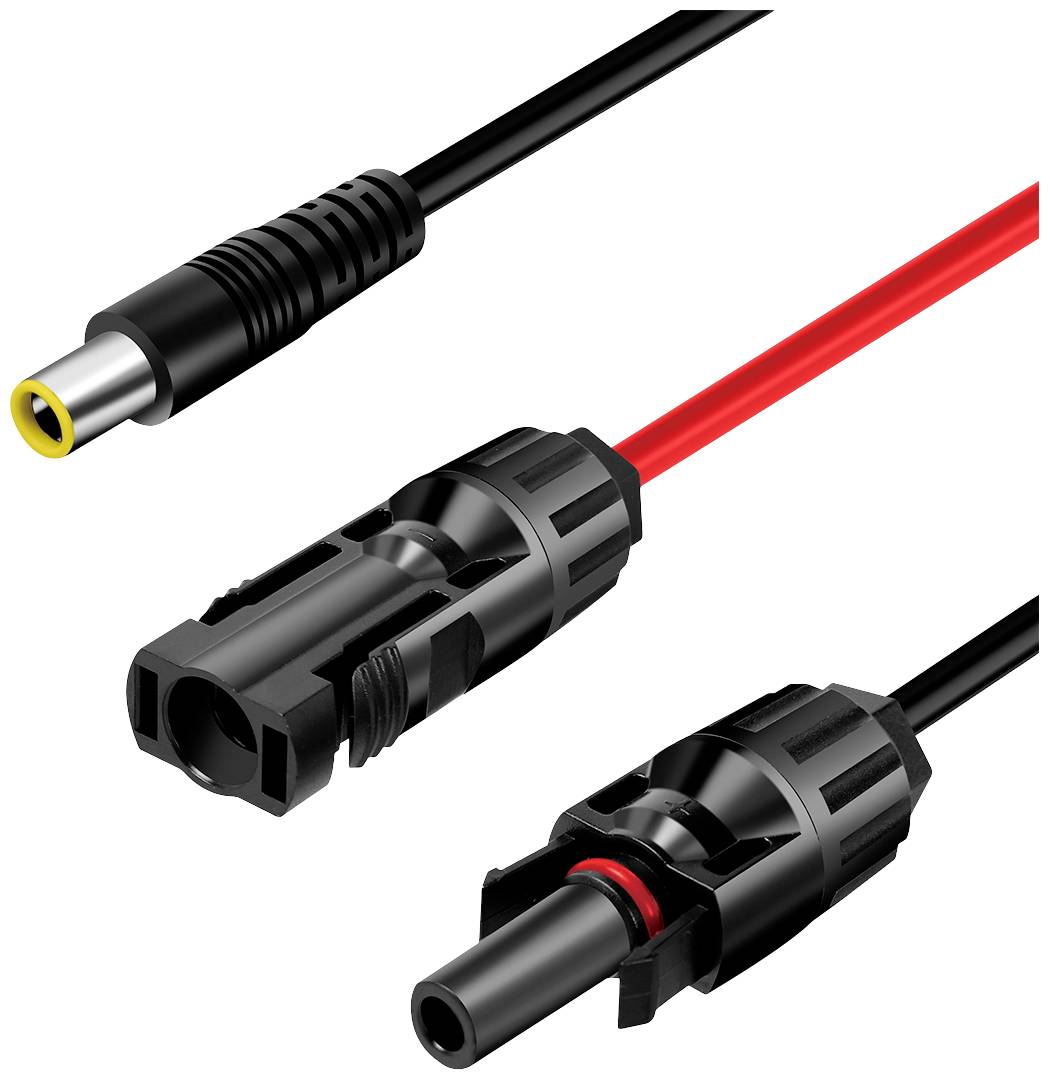

- Track 1: DC7909 (plug)
- Connection 2: 2x MC4 connectors (plug/socket)
- Complies with IEC 60332-1-2 and UL2464
Technical specifications
- Track 1: DC7909 (plug)
- Connection 2: 2x MC4 connectors (plug/socket)
- Complies with IEC 60332-1-2 and UL2464

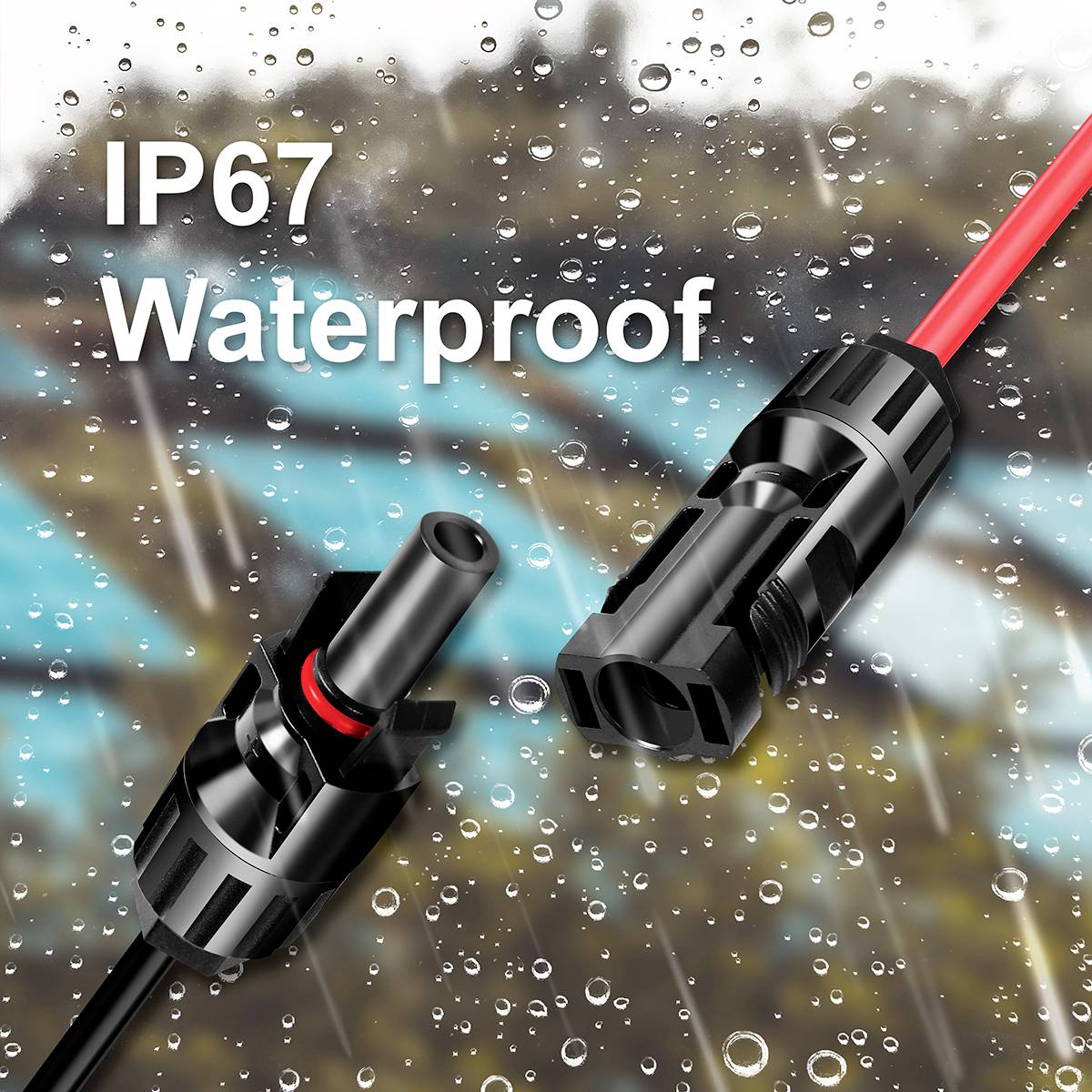

- Protection type IP67 ; Fire classification: UL94V-0
- Rated voltage: 1000 V ; Rated current: 30 A (DC)
- Operating temperature range: -40°C to 85°C.
- Wire cross-section: AWG16 ; wire material: Copper
- Plastic housing
- Product type
PV connector
- Cable length
1.8 m
- Factory colour
Black
Red
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2992065 LogiLink PHC0401 DC7909/M zu 2x Multi-Contact 4/MF PV connector Cable length 1.8 m
User & Safety Instructions
User & Safety Instructions 2992065 LogiLink PHC0401 DC7909/M zu 2x Multi-Contact 4/MF PV connector Cable length 1.8 m
Description
The MC4 solar extension cables by LogiLink are suitable for Ideal for connecting PV-panels to the micro-inverter, because for instance, when using multiple panels for a Photovoltaic-balcony power plant (PV-/solar plant) the available connection cables are often not long enough. The certified and tested cables provide good electrical conductivity, are UV- as well as weather-proof and ensure a good fire protection through the used flame-retardant materials. In the double pack (2x cable) for the plus and minus connections nothing stands in the way of a carefree installation.
