LogiLink POE004 PoE injector 10 / 100 / 1000 MBit/s IEEE 802.3at (25.5 W)
EAN:
Part number:
Item no:

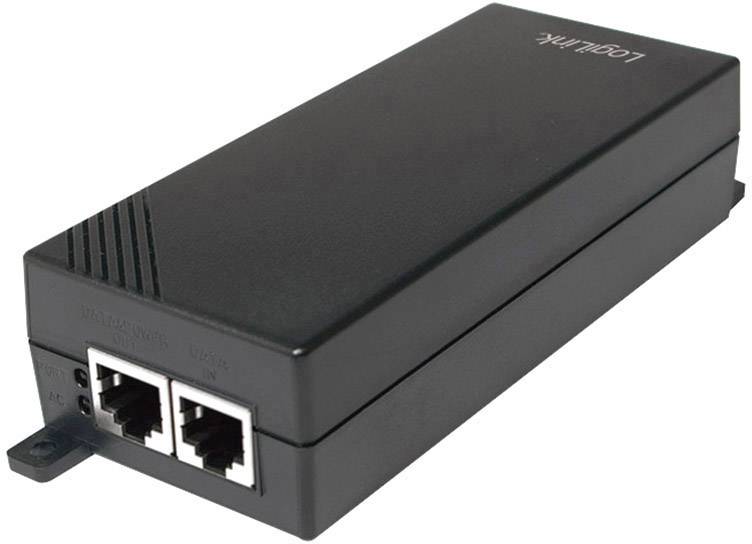

LogiLink ® PoE injector, 30 W power
Highlights & Details
- Automatic recognition of PoE-device and offers inline power
- Data port for connection to a passive hub or switch
- Data & Power port to connect to the PoE PD
Technical specifications
- Product type
PoE injector
- PoE
IEEE 802.3at (25.5 W)
- LAN data transfer rate
10 / 100 / 1000 MBit/s
- Width
155 mm
- Height
58 mm
- Length
36 mm
- Depth
36 mm
- Version
Mains cable
- Factory colour
Black
- Cable use
Networks
CAT 6
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1515944 LogiLink POE004 PoE injector 10 / 100 / 1000 MBit/s IEEE 802.3at (25.5 W)
Description
Ideal solution in case of missing power connections. Cost reduction (no expensive laying power cables is necessary). You can use the available switch to the PoE is not supported.
This text is machine translated.
This text is machine translated.
Features
- Standard: IEEE 802.3 10BASE-T/IEEE 802.3u 100BASE-TX/IEEE 802.3ab 1000BASE-T/IEEE 802.3af
- LED Definitions: Power Green (1x), LED off: not connected with PD or failed, LED on: Connected PD
- LED Definitions: AC: Green (1x), LED off: not connected or has failed, LED on: Connected

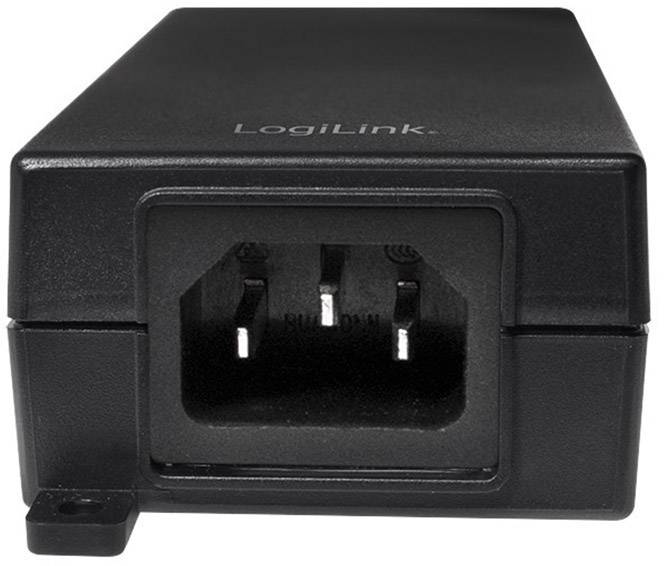

- Input power: 100-240V AC, 50/60 Hz
- Power output: 53 V
- Provides current up to 25.5 W (max. 30 W)
- Size: 155 x 58 x 36 mm
Scope of delivery
- PoE injector
- Power Cables
- Fixing screws
- User manual.
