LogiLink PS0015 Rail mounted PSU (DIN) 12 V 1.25 A 15 W Content 1 pc(s)
EAN:
Part number:
Item no:

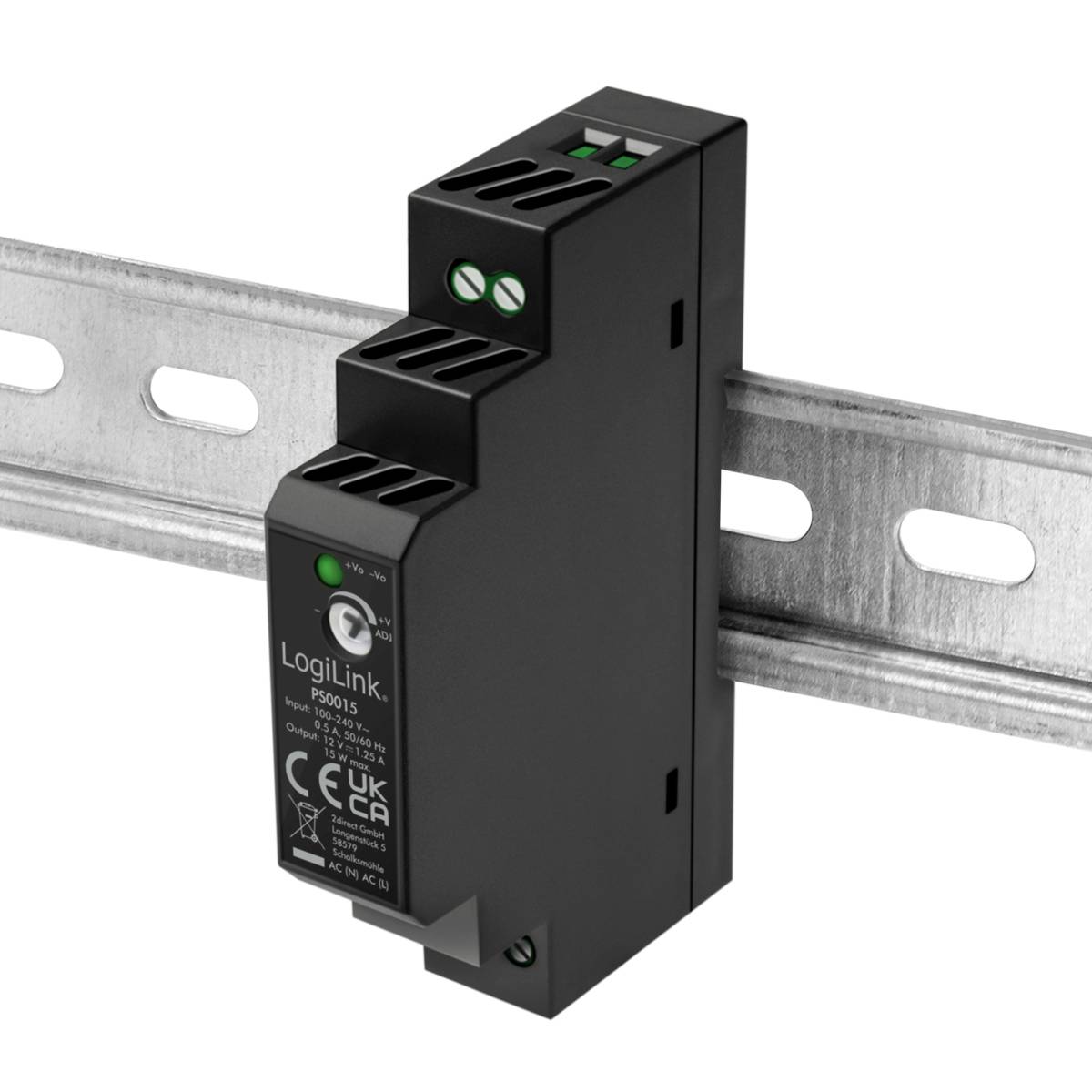

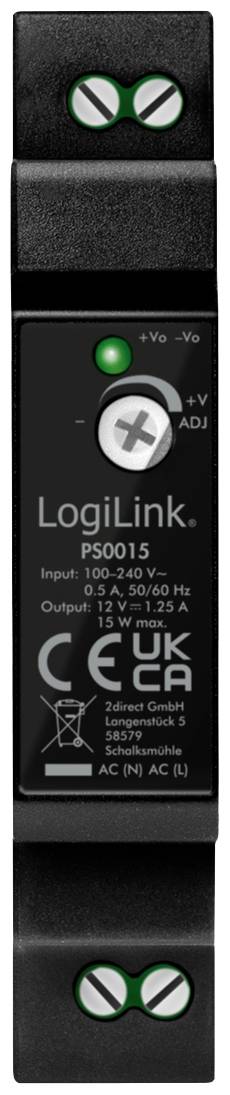

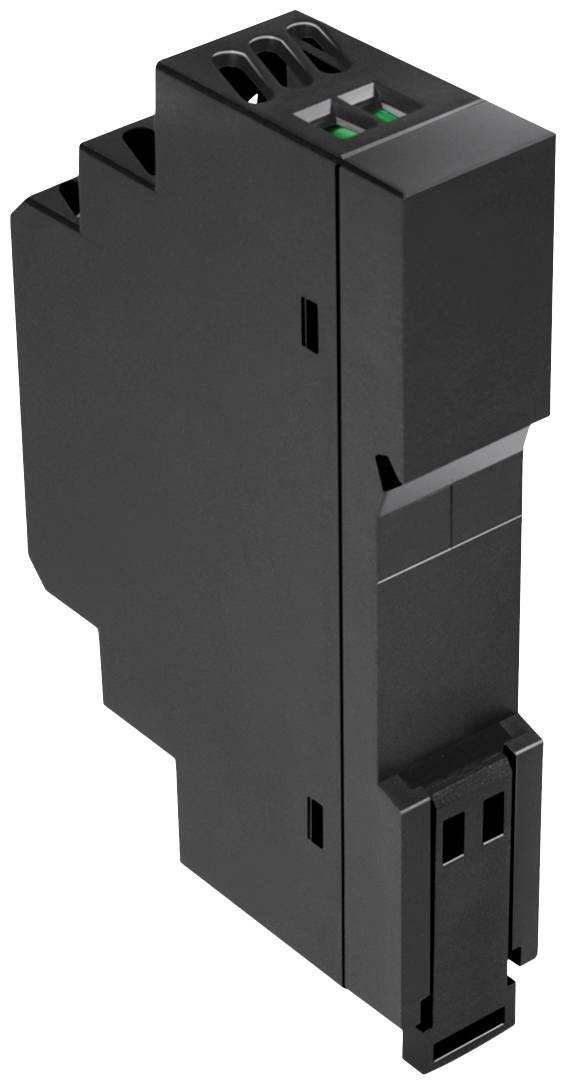

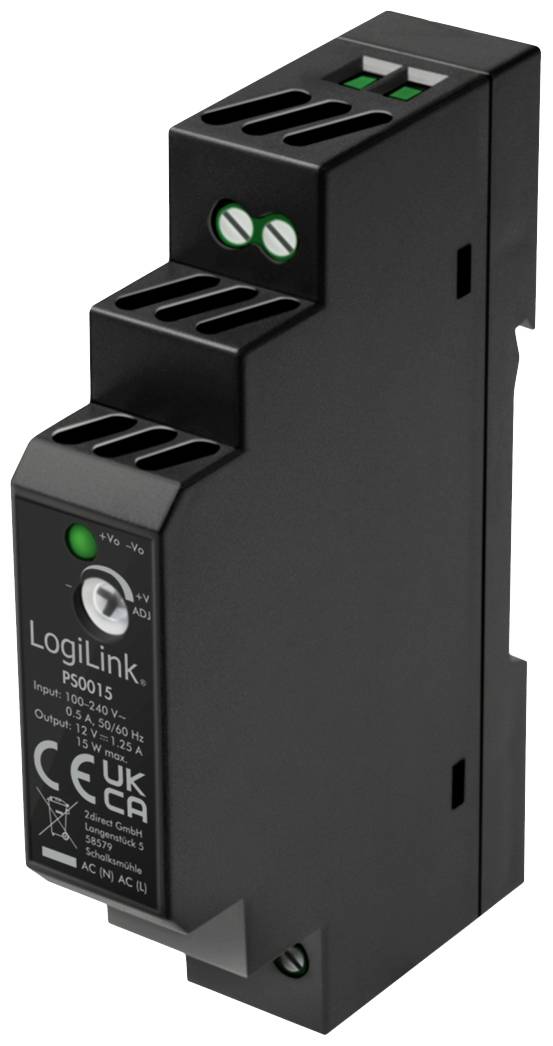

DIN rail power supply 15 W / 12 V
Highlights & Details
- Universal AC/DC rail mount switching power supply
- Mounting:DIN rail (DIN Rail) TS-35
- Low power consumption in standby mode
- Efficiency at 230 V AC: 85 %
Technical specifications
- Product type
Rail mounted PSU (DIN)
- Max. output current
1.25 A
- Output current (max.) - rounded
1.25 A
15 W
- Output voltage (nominal)
12 V
- Connection
Punchdown block
- Dim
(L x W x H) 90 x 58 x 17.5 mm
- Weight
61 g
- Manufacturer part #
PS0015
- Content
1 pc(s)
- Width
58 mm
- Height
17.5 mm
- Length
90 mm
- Type
PS0015
- Efficiency
85 %
- Factory colour
Multicolour
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3221501 LogiLink PS0015 Rail mounted PSU (DIN) 12 V 1.25 A 15 W Content 1 pc(s)
Description
The LogiLink switched-mode power supplies are designed for the DIN rail TS-35 and have short-circuit, overload, overvoltage and overheating protection as standard. They feature high efficiency, compact dimensions and minimum heat generation. Thus, they are suitable for Ideal for a reliable power supply in many areas.
