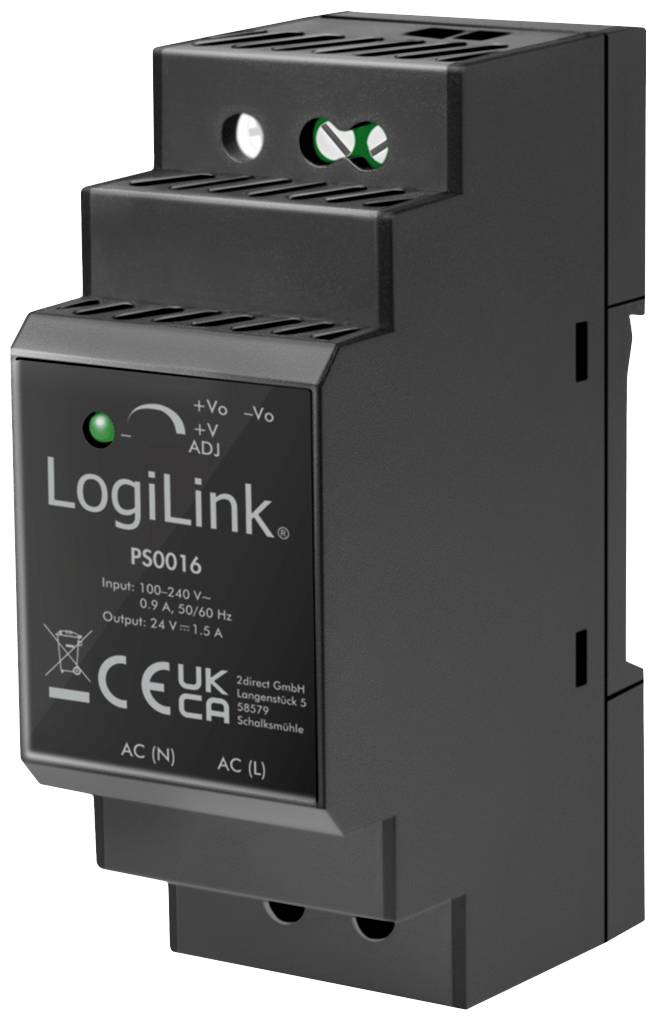

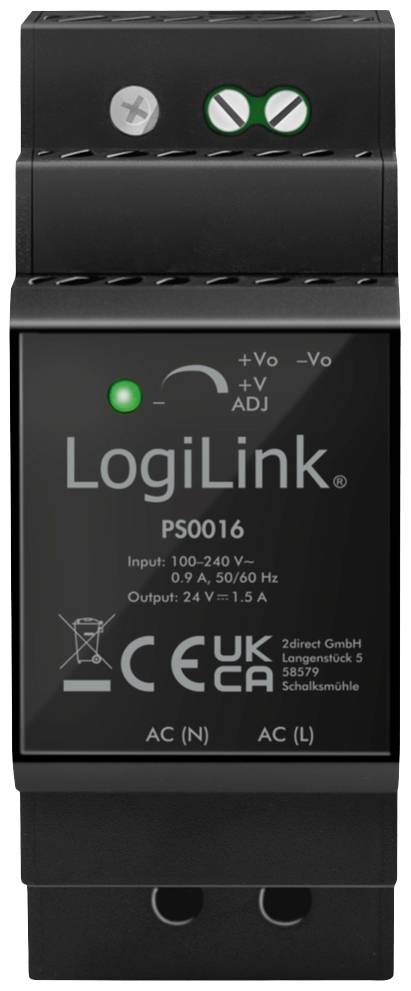

LogiLink PS0016 Rail mounted PSU (DIN) 24 V 1.5 A 36 W Content 1 pc(s)
EAN:
Part number:
Item no:
DIN rail power supply 36 W / 24 V
Highlights & Details
- Universal AC/DC rail mount switching power supply

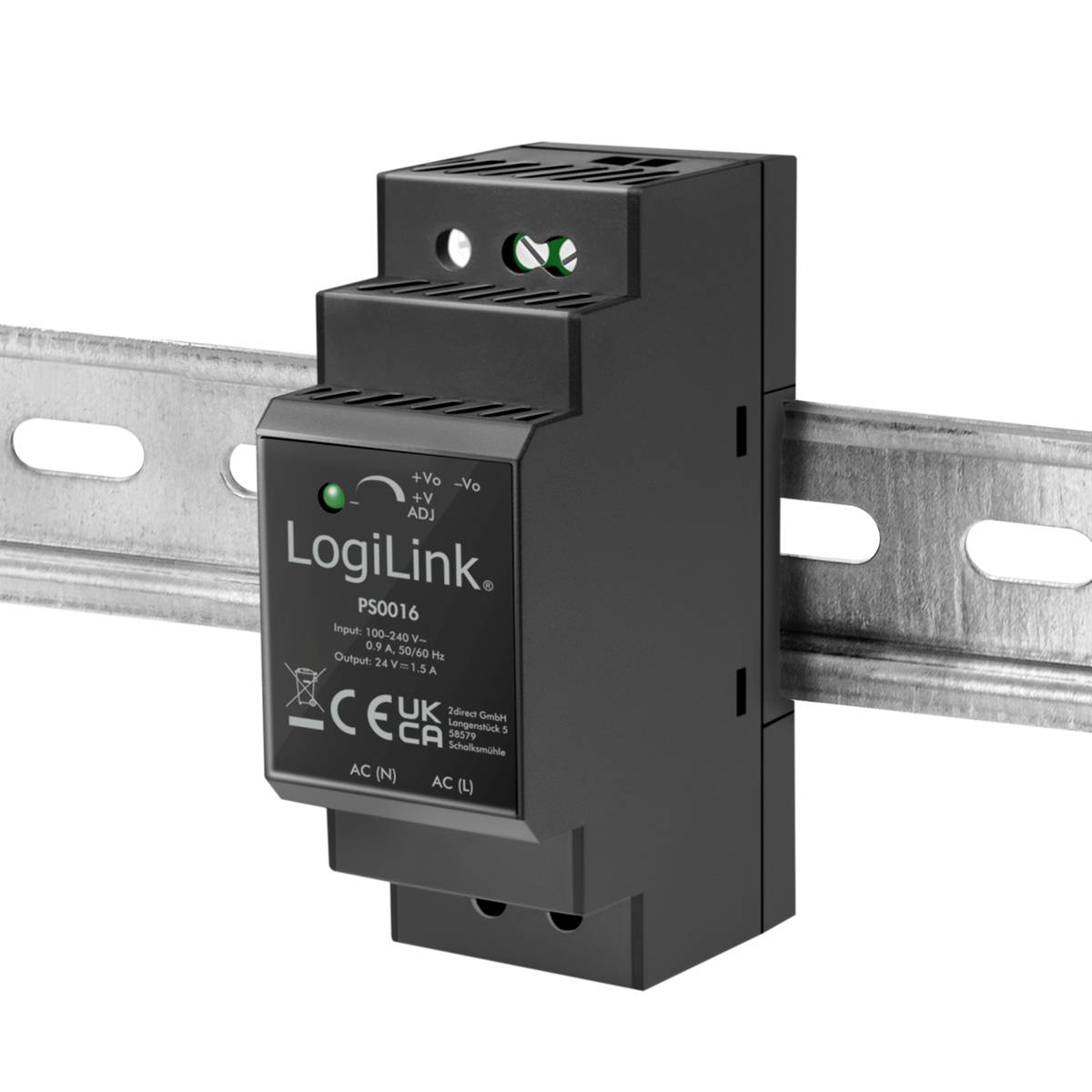

- Mounting:DIN rail (DIN Rail) TS-35
- Low power consumption in standby mode
- Efficiency at 230 V AC: 88 %
Technical specifications
- Product type
Rail mounted PSU (DIN)
- Max. output current
1.5 A
- Output current (max.) - rounded
1.5 A
36 W
- Output voltage (nominal)
24 V
- Connection
Punchdown block
- Dim
(L x W x H) 93 x 58 x 35 mm
- Weight
119 g
- Manufacturer part #
PS0016
- Content
1 pc(s)
- Width
58 mm
- Height
35 mm
- Length
93 mm
- Type
PS0016
- Efficiency
88 %
- Factory colour
Multicolour
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3221502 LogiLink PS0016 Rail mounted PSU (DIN) 24 V 1.5 A 36 W Content 1 pc(s)
Description
The LogiLink switched-mode power supplies are designed for the DIN rail TS-35 and have short-circuit, overload, overvoltage and overheating protection as standard. They feature high efficiency, compact dimensions and minimum heat generation. Thus, they are suitable for Ideal for a reliable power supply in many areas.
