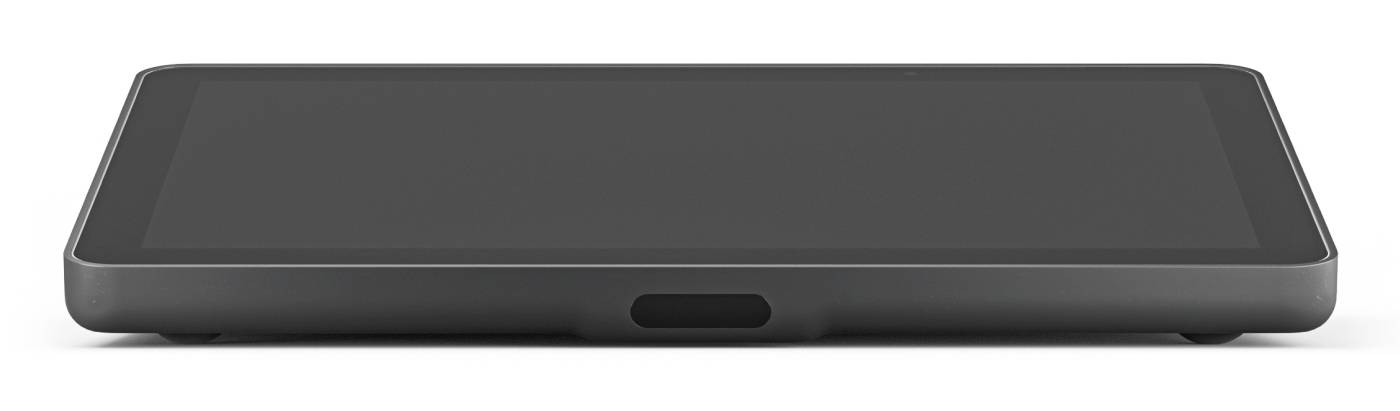

Black smartphone or tablet lying flat in landscape orientation with a dark screen and case.

Black smartphone or tablet lying flat in landscape orientation with a dark screen and case.

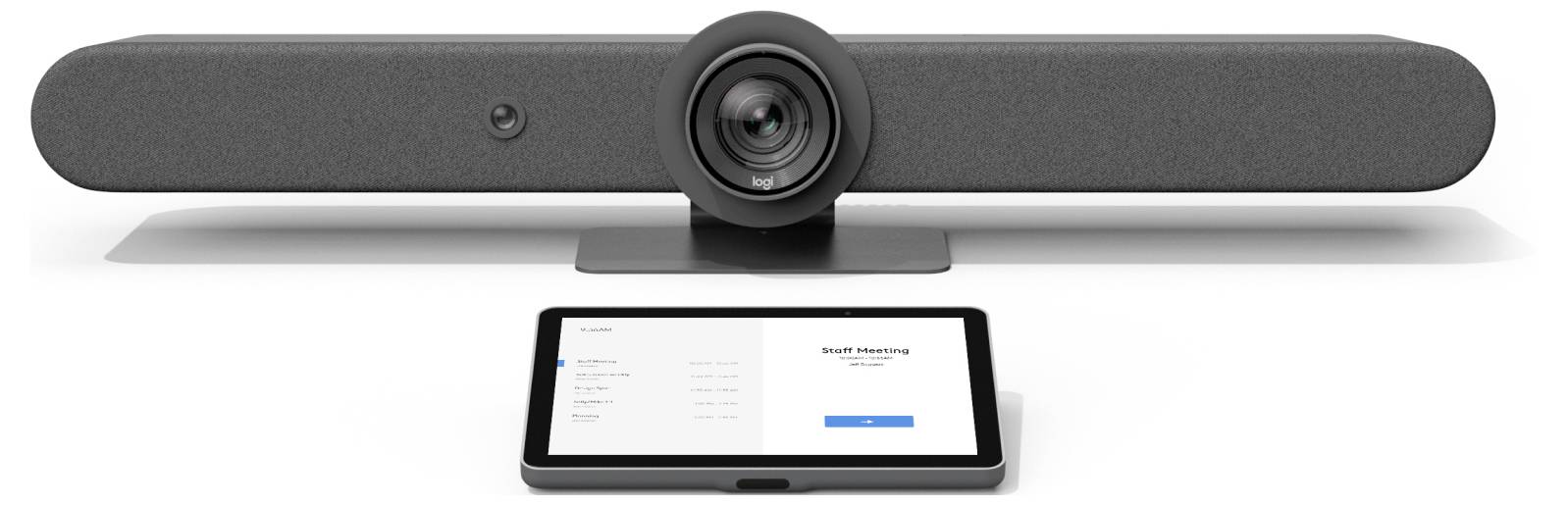

Video conferencing bar with built-in camera and microphone above a tablet displaying a setup or control screen on a desk.

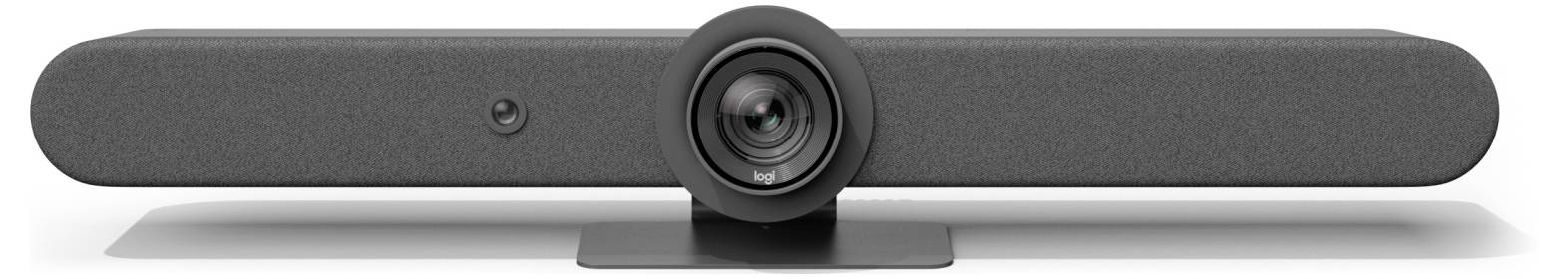

Gray video conference soundbar camera with a centered lens and long speaker bar on a small stand.

1/3

Logitech

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Product type: Modular 4K video conferencing system

Video resolution: 3840 x 2160 Pixel

Factory colour: Graphite

Width: 910 mm

Height: 164 mm

Depth: 160 mm

Dim: (W x H x D) 910 x 164 x 160 mm

Weight: 7.08 kg

Rechargeable battery technology: Lithium

Screen size diagonal (inches): 10.1 inch

Display resolution: 1280 x 800 Pixel

No. of HDMI ports: 3 x

No. of USB type A 3.1 / 3.2 1st Gen: 3 x

Touchscreen (display): Yes

Battery capacity: 220 mAh

10/100/1000 Mbps ports: 1 x

Audio power (max.): 8 W

Sensitivity (microphone): -36 dB

Brightness: 400 cd/m²

Hor. viewing angle: 85°

Vertical viewing angle: 85°

Wi-Fi: Yes

UKCA: yes

Operating temperature (T-T): 0 - 40 °C

Number of batteries supported: 1

Ethernet LAN: yes

Cable lock slot: yes

Sample rates: 0 - 48 kHz

Output level: 92/99 dB

Remote control included: yes

Heat dissipation: 64 BTU/h

Microphone frequency: 90 - 16000 Hz

Master (outer) case gross weight: 13 kg

Camera included: yes

Master (outer) case length: 1013 mm

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1

DC-in jack: yes

Built-in speaker(s): yes

Noise reduction: yes

Pan range: -25 - 25°

Interface module dimensions (W x D x H): 246,2 x 171,3 x 56,1 mm

Interface module weight: 1 kg

Interface module RJ-45 ports quantity: 1

Line-out impedance: 4 Ohm

Telepresence: no

HDMI cable length: 2 m

HDMI input ports quantity: 1

HDMI output ports quantity: 2

Oleophobic coating: yes

Quick start guide: yes

Audio beamforming: yes

Master (outer) case height: 327 mm

Master (outer) case width: 270 mm

Zoom capability: yes

Digital zoom: 3 x

Batteries included: yes

Combined zoom: 15 x

Operating relative humidity (H-H): 10 - 95 %

Echo cancellation: yes

Number of microphones: 6

Microphone pick-up range: 4.5 m

Optical zoom: 5 x

PTZ control: yes

Output voltage Total Harmonic Distortion (THD): 2 %

Storage temperature (T-T): -40 - 70 °C

Package weight: 13 kg

Current: 4.74 A

Power cable length: 1.5 m

Mounting kit: yes

Sound pressure level (max): 90 dB

Driver diameter: 7 cm

Horizontal field of view: 82.1°

Vertical field of view: 52.2°

Diagonal field of view: 90°

Motion sensor: yes
