Lorch HandyTIG 180 AC/DC TIG blow torch 3 - 180 A incl. blow torch
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Compact all-rounder for aluminum and stainless steel.
- "3-steps and welding" operating concept
- Simple current setting - also possible on burner (UpDown)
- Ampere-accurate 7 segment display
- Switching 2-/4-cycle
- Including high-frequency ignition
- With remote control connection as standard
- Job storage for 2 TIG and electrode welding tasks each
- Option for connecting the Lorch Powermaster remote control burner
Technical specifications
- Protection class: IP23S
- Product type
TIG blow torch
- Feature
incl. blow torch
- Welding current (min.)
3 A
- Welding current (max.)
180 A
- Welding current (range)
3 - 180 A
- Electrode diameter
4 mm
- Fused
16 A
- Operating voltage
230 V
- Length
480 mm
- Width
185 mm
- Height
326 mm
- Dim
(L x W x H) 480 x 185 x 326 mm
Documents & Downloads
Datasheet
Datasheet 3731643 Lorch HandyTIG 180 AC/DC TIG blow torch 3 - 180 A incl. blow torch
User & Safety Instructions
User & Safety Instructions 3731643 Lorch HandyTIG 180 AC/DC TIG blow torch 3 - 180 A incl. blow torch
Description
Masters of all disciplines.
If you do any job professionally at any location, you may well call yourself an all-rounder. Lorch welding devices from the HandyTIG AC/DC series feel just as comfortable in a workshop as they are on mounting.
The welder feels even better: His professional welding machine from Lorch makes it extremely easy for him to weld perfect seams – with aluminum or stainless steel.
Its special feature: As aluminum is a very good heat conductor, every millimeter of material thickness requires more power. For this reason, the HandyTIG 180 AC/DC is available for aluminum up to 5 mm thickness and the HandyTIG 200 AC/DC for aluminum up to 8 mm thickness.
Trust this compact all-rounder: Whether in machine construction or sheet metal processing with fixed work place or while on the move during repair, maintenance and final assembly: The HandyTIG AC/DC series delivers top performance – always and everywhere. With just over 13 kg it is very mobile.
This text is machine translated.
If you do any job professionally at any location, you may well call yourself an all-rounder. Lorch welding devices from the HandyTIG AC/DC series feel just as comfortable in a workshop as they are on mounting.
The welder feels even better: His professional welding machine from Lorch makes it extremely easy for him to weld perfect seams – with aluminum or stainless steel.
Its special feature: As aluminum is a very good heat conductor, every millimeter of material thickness requires more power. For this reason, the HandyTIG 180 AC/DC is available for aluminum up to 5 mm thickness and the HandyTIG 200 AC/DC for aluminum up to 8 mm thickness.
Trust this compact all-rounder: Whether in machine construction or sheet metal processing with fixed work place or while on the move during repair, maintenance and final assembly: The HandyTIG AC/DC series delivers top performance – always and everywhere. With just over 13 kg it is very mobile.
This text is machine translated.

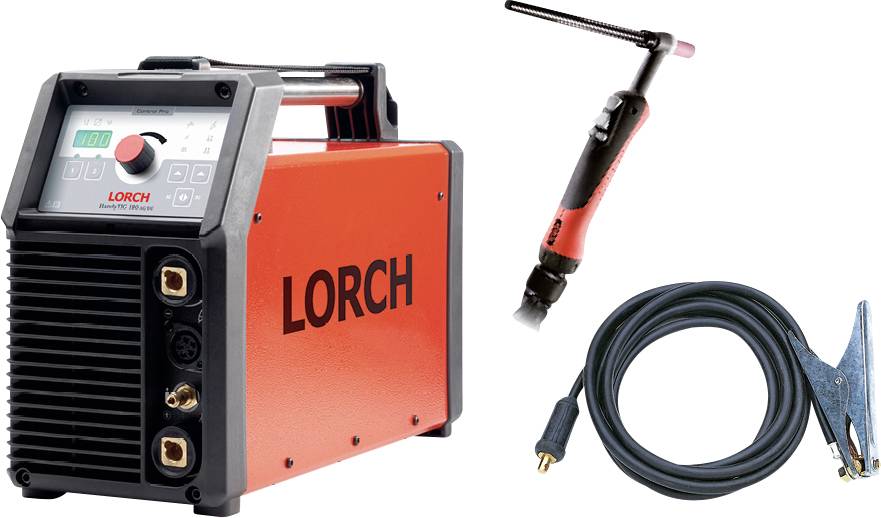

Scope of delivery
- HandyTIG 180 AC/DC Control Pro
- Workpiece cable 25 mm²
- WIG Burner a-LTG 2600 UD 4 m
