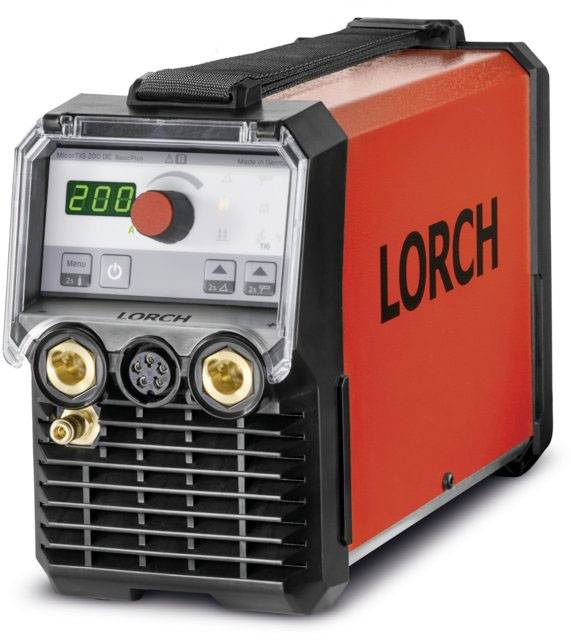

Lorch MicorTIG 200 DC BasicPlus TIG blow torch 5 - 200 A
EAN:
Part number:
Item no:
Technical specifications
- Product type
TIG blow torch
- Welding current (min.)
5 A
- Welding current (max.)
200 A
- Welding current (range)
5 - 200 A
- Electrode diameter
1.5 - 4 mm
- Fused
16 A
- Operating voltage
230 V
- Length
360 mm
- Width
130 mm
- Height
215 mm
- Dim
(L x W x H) 360 x 130 x 215 mm
- Weight
6.8 kg
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2240291 Lorch MicorTIG 200 DC BasicPlus TIG blow torch 5 - 200 A
Description
Portable WIG welding inverter
Mobile and compact 200 DC-WIG welding system with MicorBoost technology, non-contact high frequency ignition and electrode welding function.
Unique flexibility
Full independence through all-in technology for mains, generator and battery operation.
Powerful
welding with maximum welding current without safety problems on the 230 V grid.
Graphic display with language selection and job memory
the MicorTIG 200 ControlPro provides for an intuitive device control with a clearly structured user interface.
Pulses and fast pulses
The integrated pulse function up to 5 kHz is particularly suitable for the processing of thin welding plates.
Safety
by IP23 and S-mark optimally suitable for the installation application.
Robust and crash-proof up
to 80 cm high The MicorTIG 200 DC is guaranteed up to 80 cm high thanks to special crash protection. So if the welder should fall out of your hand or from the workbench, you can simply continue working.
Remote control on the burner
no back and her between the workpiece and the machine. With optional Powermaster burners, you have all the important welding parameters on and under control.
Energy-efficient
the MicorTIG series achieves a high degree of efficiency and low energy consumption through the latest power electronics and stand-by function.

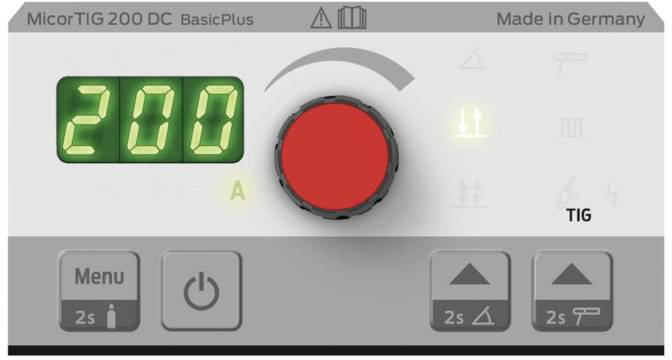

Operating concept: BasicPlus
- "3-step and welding" operating concept
- Digital ampere display
- Remote controller connection
- Infinitely variable current setting
- User-oriented operation via light symbols and welding sequence control
- Pulse function
This text is machine translated.
Mobile and compact 200 DC-WIG welding system with MicorBoost technology, non-contact high frequency ignition and electrode welding function.
Unique flexibility
Full independence through all-in technology for mains, generator and battery operation.
Powerful
welding with maximum welding current without safety problems on the 230 V grid.
Graphic display with language selection and job memory
the MicorTIG 200 ControlPro provides for an intuitive device control with a clearly structured user interface.
Pulses and fast pulses
The integrated pulse function up to 5 kHz is particularly suitable for the processing of thin welding plates.
Safety
by IP23 and S-mark optimally suitable for the installation application.
Robust and crash-proof up
to 80 cm high The MicorTIG 200 DC is guaranteed up to 80 cm high thanks to special crash protection. So if the welder should fall out of your hand or from the workbench, you can simply continue working.
Remote control on the burner
no back and her between the workpiece and the machine. With optional Powermaster burners, you have all the important welding parameters on and under control.
Energy-efficient
the MicorTIG series achieves a high degree of efficiency and low energy consumption through the latest power electronics and stand-by function.
Operating concept: BasicPlus
- "3-step and welding" operating concept
- Digital ampere display
- Remote controller connection
- Infinitely variable current setting
- User-oriented operation via light symbols and welding sequence control
- Pulse function
This text is machine translated.
Scope of delivery
- MicorTIG 200 DC BasicPlus (battery-ready)
- Power cable;
- Carry strap
- Cable Clips & Fixings
- Gas hose
- Operating manual
- LorchNet connection.
