LUKAS-ERZETT A10011625608 Planer Carbide metal Cylindrical Product size (Ø) 16 mm Shank diameter 6 mm
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 68.90 / piece)
€ 68.90
plus VAT.
Highlights & Details
Cutter HFA cylinder shape for steel 16x25 mm shaft 6 mm | Galvanised 7
- Process perfectly with cross-toothing steel and cast steel

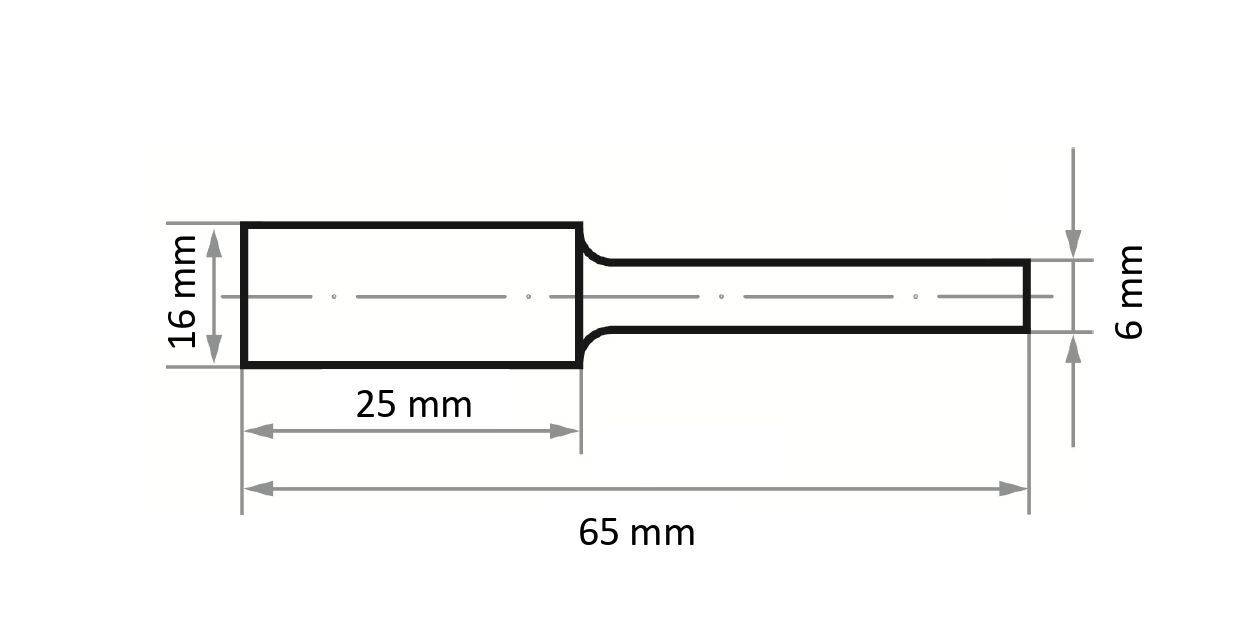

Technical specifications
- Tool holder: Shaft
- Tool holder dimensions 6 mm
- Shaft length 40 mm
- Cylinder shape
- Shape: HFA cylinder
- Tool head-Ø 16 mm
- Tool head length 25 mm
- Teeth: Z7 Steel medium cross serrations
- Stars: 2
- Suitability Steel and cast steel RM up to 800 N/mm²: Well suitable
- Suitability alloyed, coated steels RM up to 1200: Well suited
- Suitability for tool steels RM up to 1300 N/mm²: Well suited
- Suitability rust, acid, heat-resistant. Suitable cast steel
- Suitability cast iron: Well suitable
- Suitability titanium and nickel alloys: Suitable
- Chamfer application: Well suited
- Application deburring: Well suited
- Milling application: Well suited
- Application cast: Well suitable
- Suitable for steel: Well suited
- Suitable for Inox/Steel
- Suitable for cast: Well suited
- Suitable for titanium
- Product type
Planer
- Type
Cylindrical
- Material
Carbide metal
- Shank Ø
6 mm
- Content
1 pc(s)
- (Ø)
16 mm
Documents & Downloads
Datasheet
Datasheet 3440186 LUKAS-ERZETT A10011625608 Planer Carbide metal Cylindrical Product size (Ø) 16 mm Shank diameter 6 mm
User & Safety Instructions
User & Safety Instructions 3440186 LUKAS-ERZETT A10011625608 Planer Carbide metal Cylindrical Product size (Ø) 16 mm Shank diameter 6 mm
Description
Process perfectly with cross-toothing steel and cast steel
Efficient working: Fast and aggressive erosion can be achieved with good surface results at the same time
Thanks to cross-toothing even the harder materials can be machining
No dangerous shank breakage thanks to high-quality steel shaft
Perfect dimensional stability: Fits optimally into the drive machine
Little effort required while working: The cross-toothing provides increased contact forces

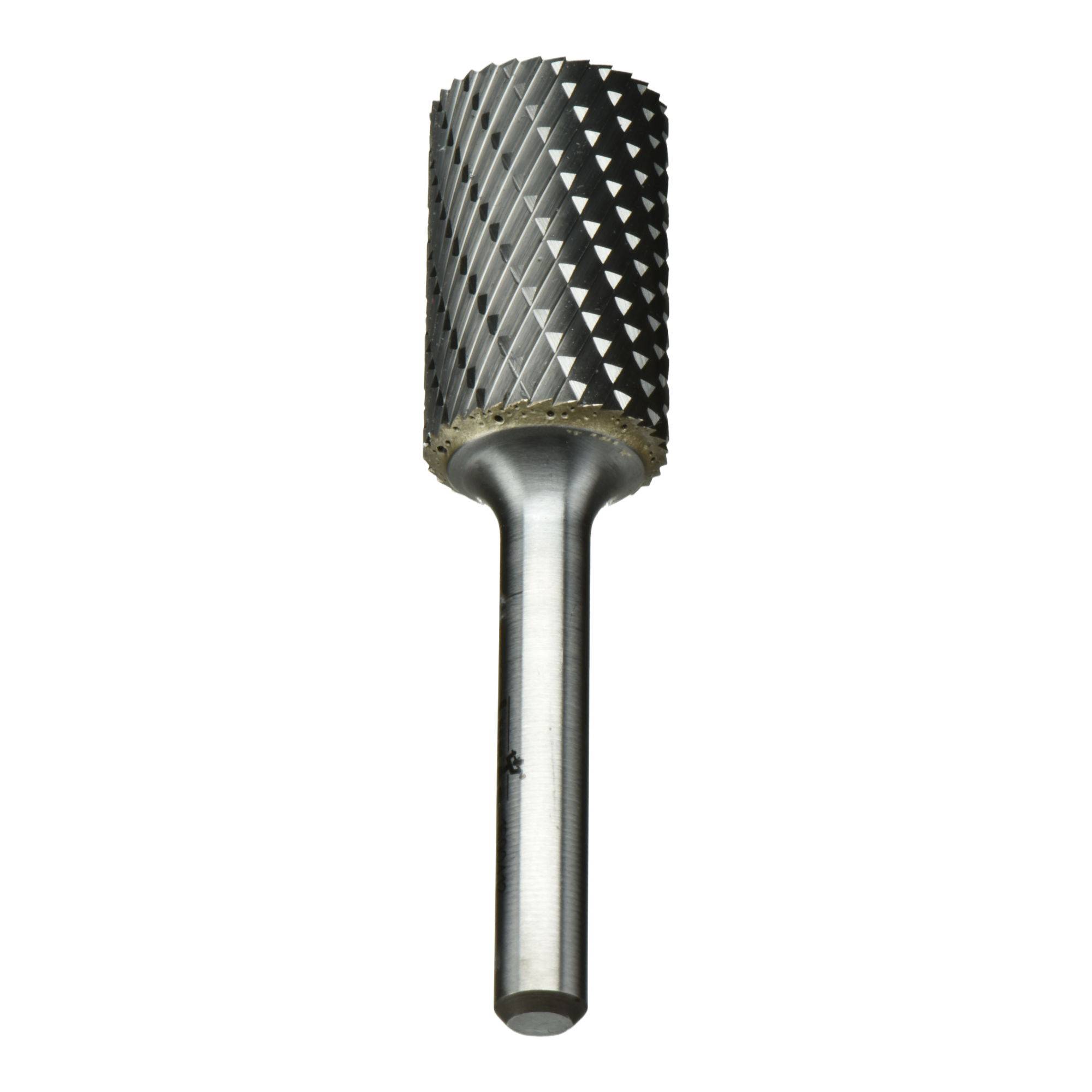

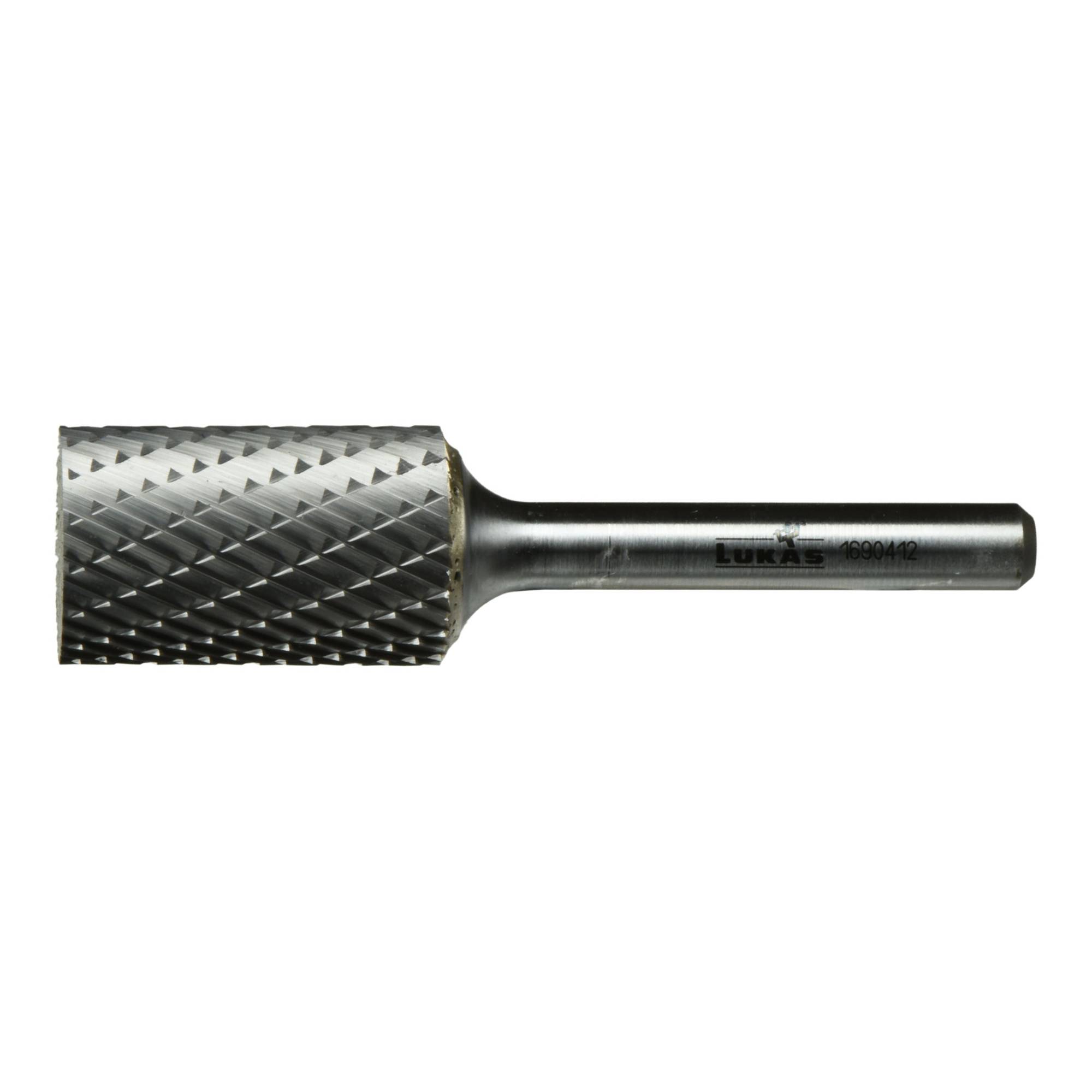

The LUKAS milling pin Z7 made of carbide is characterized by its medium cross teeth, which can be used excellently on hard materials with low application of force. In addition, this type of interlocking provides increased contact forces, which reduce the application of force while working and thus relieve the user. During machining of cast steel, welded seams, hardened and unhardened steels with high strength and stainless steel, high material removal is possible in a very short time. The high-quality steel shaft of the tool fits optimally in the drive machine. Clamps, slip or even shaft breakage are a thing of the past. Our selection of shapes allows you to find the right tool for every machining case.
This text is machine translated.
Efficient working: Fast and aggressive erosion can be achieved with good surface results at the same time
Thanks to cross-toothing even the harder materials can be machining
No dangerous shank breakage thanks to high-quality steel shaft
Perfect dimensional stability: Fits optimally into the drive machine
Little effort required while working: The cross-toothing provides increased contact forces
The LUKAS milling pin Z7 made of carbide is characterized by its medium cross teeth, which can be used excellently on hard materials with low application of force. In addition, this type of interlocking provides increased contact forces, which reduce the application of force while working and thus relieve the user. During machining of cast steel, welded seams, hardened and unhardened steels with high strength and stainless steel, high material removal is possible in a very short time. The high-quality steel shaft of the tool fits optimally in the drive machine. Clamps, slip or even shaft breakage are a thing of the past. Our selection of shapes allows you to find the right tool for every machining case.
This text is machine translated.
System requirements
- Straight grinder
