LUKAS-ERZETT A200200510353 Grinding bit 20 pc(s)
EAN:
Part number:
Item no:
Number (Package size 20 pc(s))
Total (€ 3.10 / piece)
€ 61.99
incl. VAT
14-day return policy included
Highlights & Details

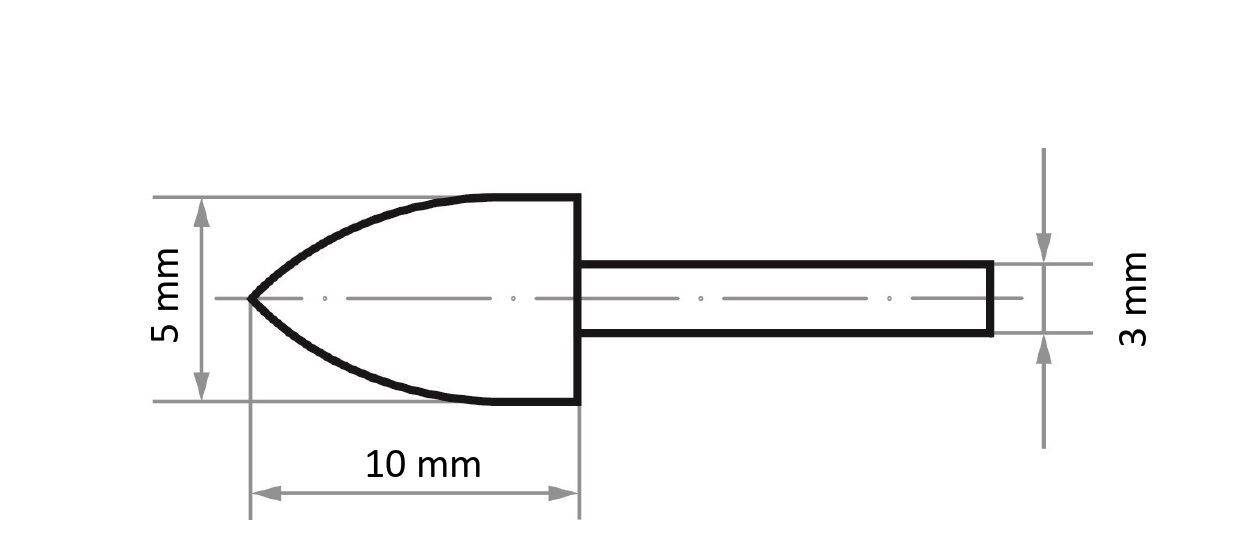

Grinding point SP pointed arch form for steel/steel casting 5x10 mm shaft 3 mm x 50 mm | Grain 100
- Optimized corundum mixture for unhardened and hardened tool steel
Technical specifications
- Safety standard EN 12413
- Tool holder: Shaft
- Tool holder dimensions 3 mm
- Shaft length 50 mm
- Pointed arch
- Grain size - FEPA 100
- Form group - GS: SP - pointed arch
- Grinding material: NDW
- Hardness: Q
- Binding type: V ceramic binding
- Binding: V115
- Stars: 3
- Suitability alloyed, coated steels RM up to 1200: Well suited
- Suitability for tool steels RM up to 1300 N/mm²: Suitable
- Application Precision machining: Suitable
- Suitable for steel: Well suited
- Product type
Grinding bit
- Shank Ø
3 mm
- Grit size
100
- Shape
pointed cone
- Content
20 pc(s)
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3441147 LUKAS-ERZETT A200200510353 Grinding bit 20 pc(s)
Description
Optimized corundum mixture for unhardened and hardened tool steel
High-quality combination of corundum grades for efficient machining of unhardened tool steels
Stainless steel, zinc-nickel coating
Perfect dimensional stability: Fits optimally into the drive machine
Combination of abrasives made from very tough and splinter grains for high abrasion with good surface result at the same time
No chrome coating
No dangerous shank breakage thanks to high-quality steel shaft
Quality-tested: High safety through regular testing
The NDW ceramic grinding pin convinces with a high-quality combination of normal corundum, noble corundum and single-crystal corundum for an efficient processing of hardened and unhardened tool steels. The abrasive combination of very tough and splinter grains enables a high abrasion and at the same time good surface result. The high-quality steel shaft of the tool fits optimally in the drive machine. Clamps, slip or even shaft breakage are a thing of the past. Regular tests ensure a high level of safety and a tested quality. Abrasive bodies can be manufactured in a variety of dimensions and different fabrics. This means that the individual tool is available for every application.
This text is machine translated.
High-quality combination of corundum grades for efficient machining of unhardened tool steels
Stainless steel, zinc-nickel coating
Perfect dimensional stability: Fits optimally into the drive machine
Combination of abrasives made from very tough and splinter grains for high abrasion with good surface result at the same time
No chrome coating
No dangerous shank breakage thanks to high-quality steel shaft
Quality-tested: High safety through regular testing
The NDW ceramic grinding pin convinces with a high-quality combination of normal corundum, noble corundum and single-crystal corundum for an efficient processing of hardened and unhardened tool steels. The abrasive combination of very tough and splinter grains enables a high abrasion and at the same time good surface result. The high-quality steel shaft of the tool fits optimally in the drive machine. Clamps, slip or even shaft breakage are a thing of the past. Regular tests ensure a high level of safety and a tested quality. Abrasive bodies can be manufactured in a variety of dimensions and different fabrics. This means that the individual tool is available for every application.
This text is machine translated.
System requirements
- Straight grinder
