LUKAS-ERZETT A201100808353 Grinding bit 20 pc(s)
EAN:
Part number:
Item no:
Number (Package size 20 pc(s))
Total (€ 2.60 / piece)
€ 52.09
plus VAT.
14-day return policy included
Highlights & Details

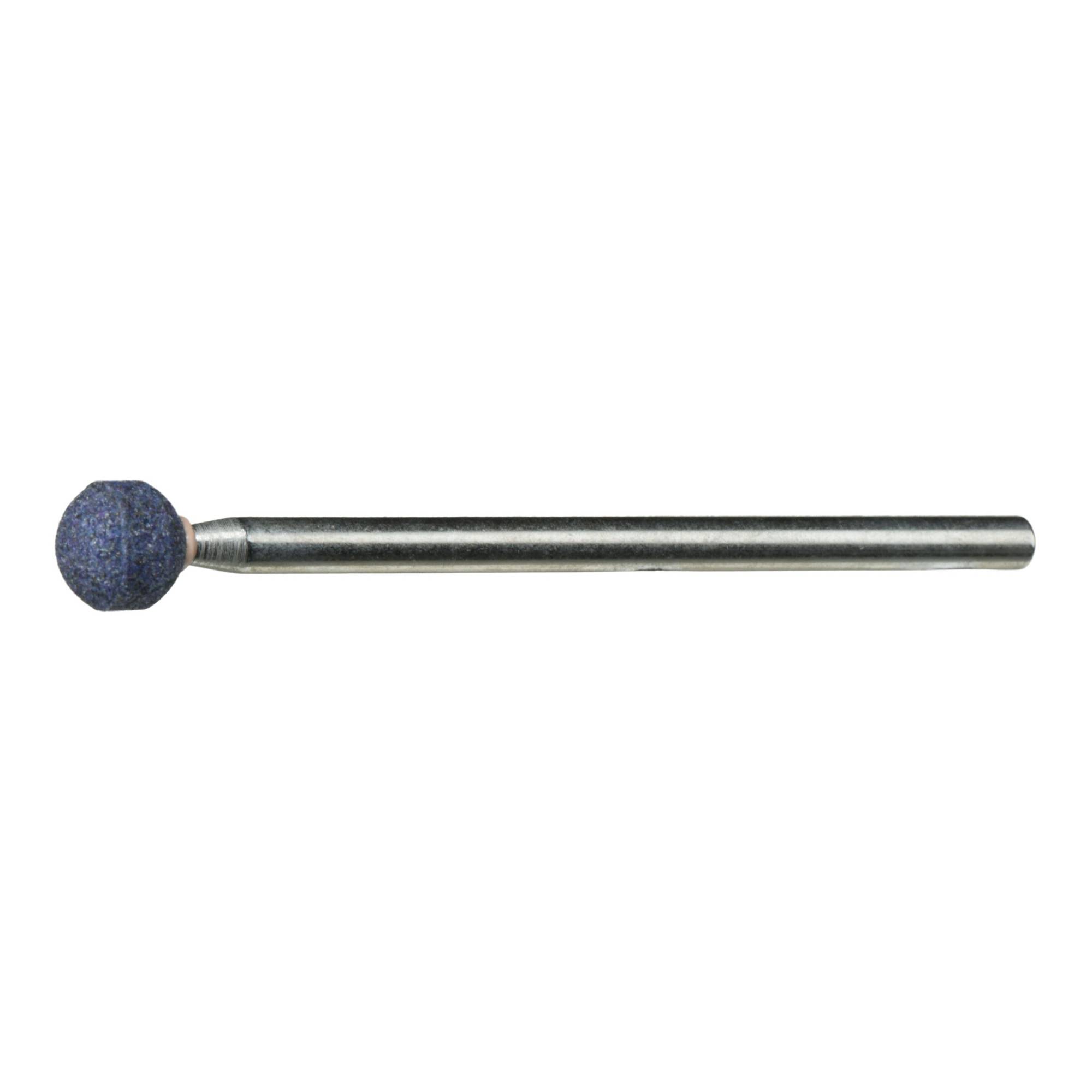

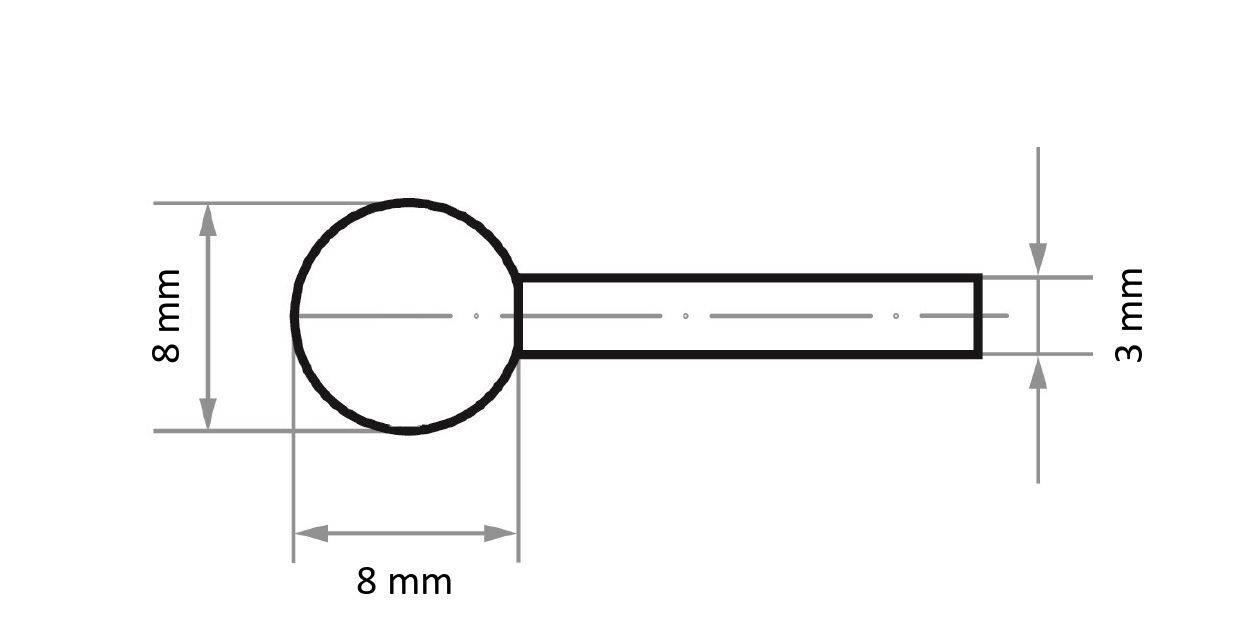

Grinding point KU ball-shaped steel/steel core 8 x 8 mm shaft 3 mm x 50 mm | grain 100
- Optimized corundum mixture for unhardened and hardened tool steel
Technical specifications
- Safety standard EN 12413
- Tool holder: Shaft
- Tool holder dimensions 3 mm
- Shaft length 50 mm
- Tool form: Ball
- Grain size - FEPA 100
- Form group - GS: KU - ball
- Grinding material: NDW
- Hardness: Q
- Binding type: V ceramic binding
- Binding: V115
- Stars: 3
- Suitability alloyed, coated steels RM up to 1200: Well suited
- Suitability for tool steels RM up to 1300 N/mm²: Suitable
- Application Precision machining: Suitable
- Suitable for steel: Well suited
- Product type
Grinding bit
- Shank Ø
3 mm
- Grit size
100
- Shape
spherical
- Content
20 pc(s)
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3441174 LUKAS-ERZETT A201100808353 Grinding bit 20 pc(s)
Description
Optimized corundum mixture for unhardened and hardened tool steel
No dangerous shank breakage thanks to high-quality steel shaft
Combination of abrasives made from very tough and splinter grains for high abrasion with good surface result at the same time
High-quality combination of corundum grades for efficient machining of unhardened tool steels
Stainless steel, zinc-nickel coating
Perfect dimensional stability: Fits optimally into the drive machine
No chrome coating
Quality-tested: High safety through regular testing
The NDW ceramic grinding pin convinces with a high-quality combination of normal corundum, noble corundum and single-crystal corundum for an efficient processing of hardened and unhardened tool steels. The abrasive combination of very tough and splinter grains enables a high abrasion and at the same time good surface result. The high-quality steel shaft of the tool fits optimally in the drive machine. Clamps, slip or even shaft breakage are a thing of the past. Regular tests ensure a high level of safety and a tested quality. Abrasive bodies can be manufactured in a variety of dimensions and different fabrics. This means that the individual tool is available for every application.
This text is machine translated.
No dangerous shank breakage thanks to high-quality steel shaft
Combination of abrasives made from very tough and splinter grains for high abrasion with good surface result at the same time
High-quality combination of corundum grades for efficient machining of unhardened tool steels
Stainless steel, zinc-nickel coating
Perfect dimensional stability: Fits optimally into the drive machine
No chrome coating
Quality-tested: High safety through regular testing
The NDW ceramic grinding pin convinces with a high-quality combination of normal corundum, noble corundum and single-crystal corundum for an efficient processing of hardened and unhardened tool steels. The abrasive combination of very tough and splinter grains enables a high abrasion and at the same time good surface result. The high-quality steel shaft of the tool fits optimally in the drive machine. Clamps, slip or even shaft breakage are a thing of the past. Regular tests ensure a high level of safety and a tested quality. Abrasive bodies can be manufactured in a variety of dimensions and different fabrics. This means that the individual tool is available for every application.
This text is machine translated.
System requirements
- Straight grinder
