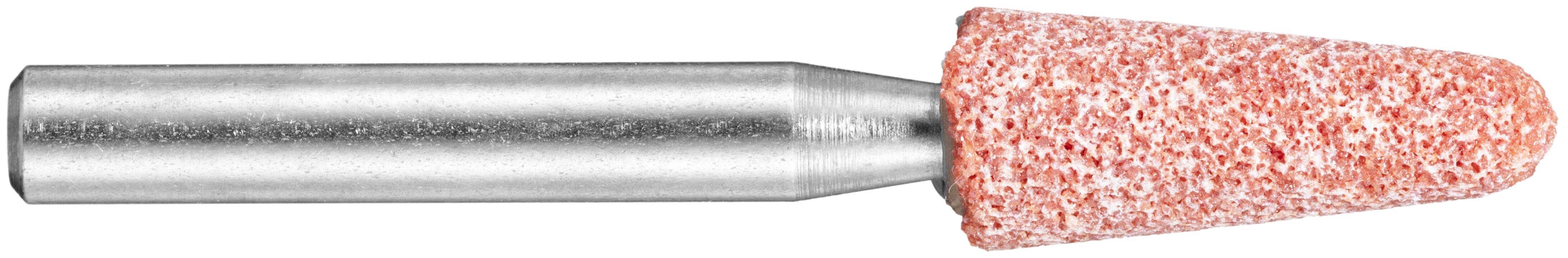

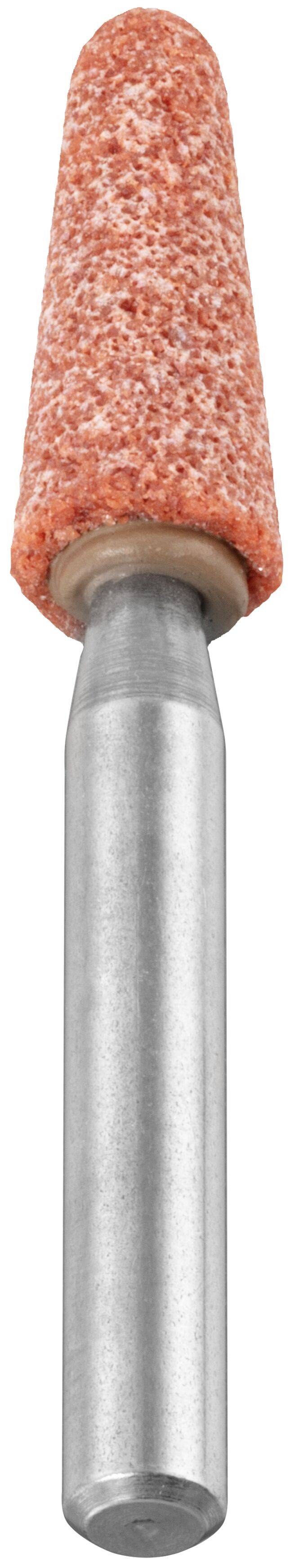

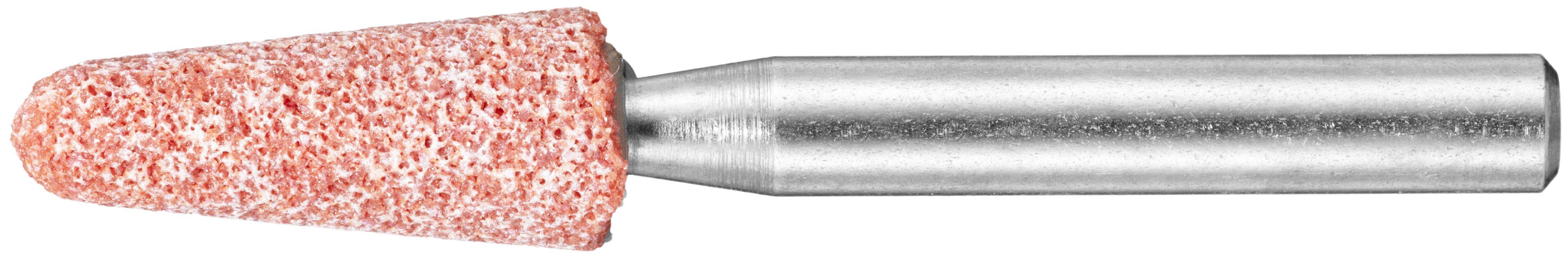

LUKAS-ERZETT A201601025606 Grinding bit 20 pc(s)
EAN:
Part number:
Item no:
Number (Package size 20 pc(s))
Total (€ 2.44 / piece)
€ 48.73
plus VAT.
14-day return policy included
Highlights & Details

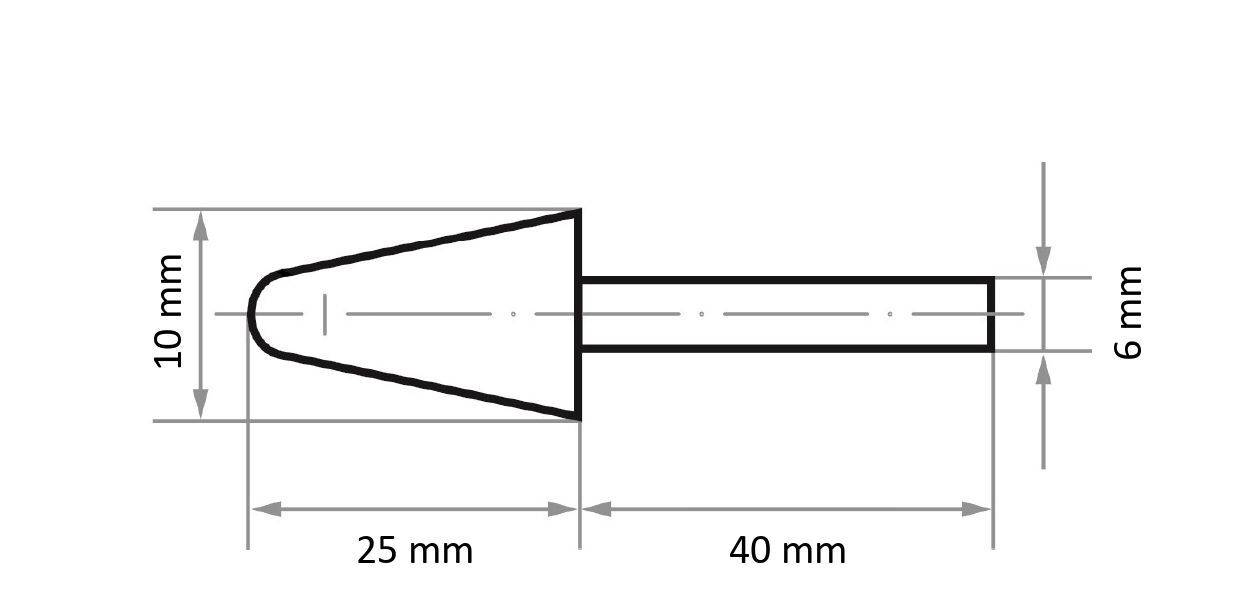

Grinding point KE round cone shape for steel/steel casting 10x25 mm shaft 6 mm | corn 46/60
- The all-rounder among the grinding pins
Technical specifications
- Safety standard EN 12413
- Tool holder: Shaft
- Tool holder dimensions 6 mm
- Shaft length 40 mm
- Tool form: Round cone
- Grain size - FEPA 46
- Form group - GS: KE - cone
- Abrasive:EKRBR
- Hardness: P
- Binding type: V ceramic binding
- Binding: V7
- Stars: 2
- Suitability Steel and cast steel RM up to 800 N/mm²: Well suitable
- Suitability of alloyed, coated steels RM up to 1200: Suitable
- Suitability for tool steels RM up to 1300 N/mm²: Suitable
- Suitability rust, acid, heat-resistant. Suitable cast steel
- Application Precision machining: Suitable
- Suitable for steel: Well suited
- Suitable for Inox/Steel
- Product type
Grinding bit
- Shank Ø
6 mm
- Grit size
46
60
- Shape
round-tapered
- Content
20 pc(s)
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3441252 LUKAS-ERZETT A201601025606 Grinding bit 20 pc(s)
Description
The all-rounder among the grinding pins
The all-rounder quality (type), when it comes to cost-efficient applications
Quality-tested: High safety through regular testing
Good life thanks to tough grain binding for robust applications
High hardness and sharpness for long durability
Also efficiently splints even harder materials
No chrome coating
Perfect dimensional stability: Fits optimally into the drive machine
Stainless steel, zinc-nickel coating
No dangerous shank breakage thanks to high-quality steel shaft
The wide range of application technology for grinding from coarse machining to fine machining requires grinding pins which are optimally matched in terms of chip power, surface quality to be achieved and service life. The special grain mix of high-quality corundum pink in a brown version of this grinding pin offers an optimum compromise between hardness, shatter and grain size. As a classic all-rounder for grinding applications, the grinding pin can be used cost-efficiently on many materials. Thanks to tough grain bonding and good durability, this all-rounder is also ideal for robust applications. The high-quality steel shaft of the milling pin fits optimally in the drive machine. Clamps, slip or even shaft breakage are a thing of the past. Regular tests ensure a high level of safety. The zinc-nickel coating keeps this tool free of rust.
This text is machine translated.
The all-rounder quality (type), when it comes to cost-efficient applications
Quality-tested: High safety through regular testing
Good life thanks to tough grain binding for robust applications
High hardness and sharpness for long durability
Also efficiently splints even harder materials
No chrome coating
Perfect dimensional stability: Fits optimally into the drive machine
Stainless steel, zinc-nickel coating
No dangerous shank breakage thanks to high-quality steel shaft
The wide range of application technology for grinding from coarse machining to fine machining requires grinding pins which are optimally matched in terms of chip power, surface quality to be achieved and service life. The special grain mix of high-quality corundum pink in a brown version of this grinding pin offers an optimum compromise between hardness, shatter and grain size. As a classic all-rounder for grinding applications, the grinding pin can be used cost-efficiently on many materials. Thanks to tough grain bonding and good durability, this all-rounder is also ideal for robust applications. The high-quality steel shaft of the milling pin fits optimally in the drive machine. Clamps, slip or even shaft breakage are a thing of the past. Regular tests ensure a high level of safety. The zinc-nickel coating keeps this tool free of rust.
This text is machine translated.
System requirements
- Straight grinder
