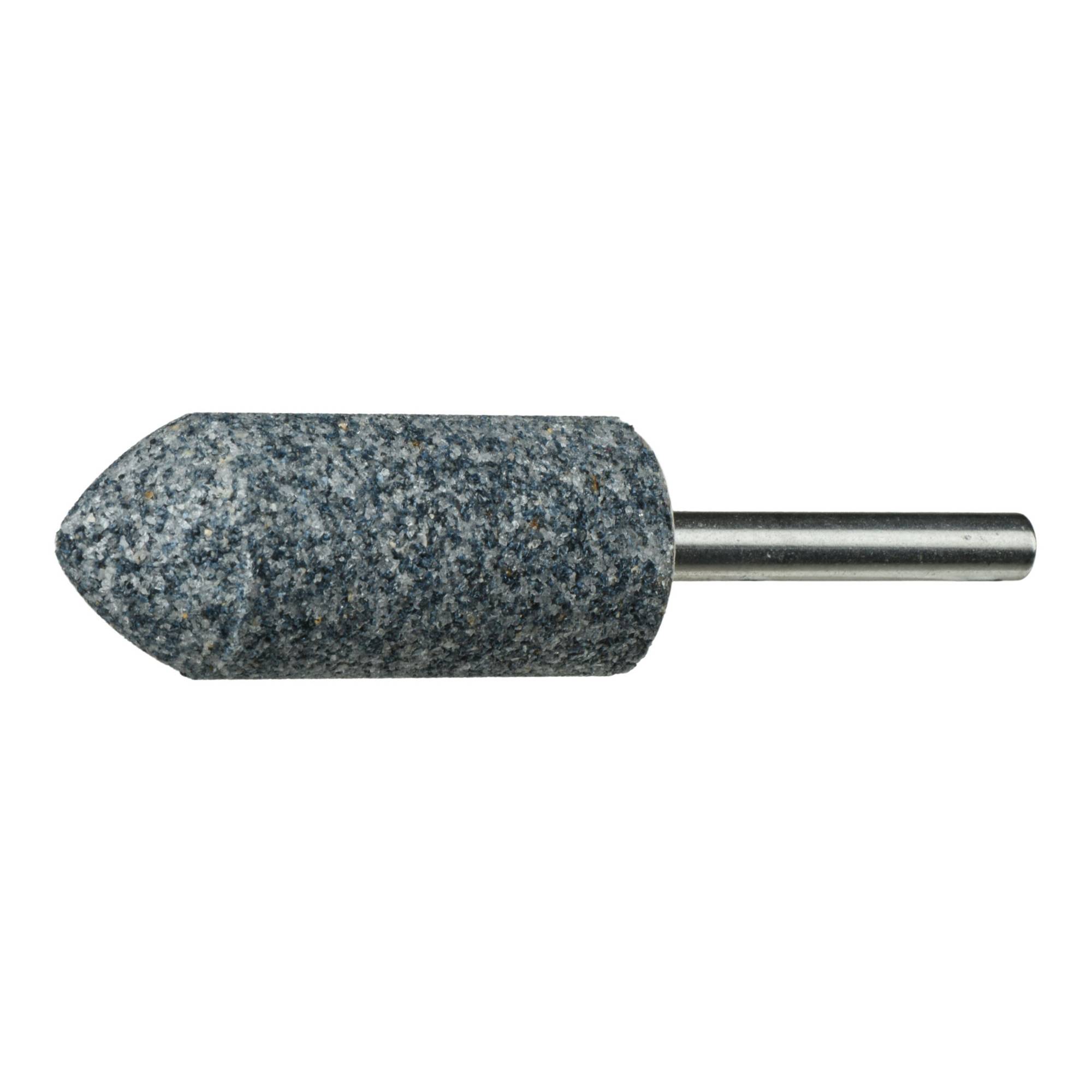

LUKAS-ERZETT A206201645633 Grinding bit Diameter 6 mm 20 pc(s)
EAN:
Part number:
Item no:
Number (Package size 20 pc(s))
Total (€ 3.87 / piece)
€ 77.30
plus VAT.
14-day return policy included
Highlights & Details

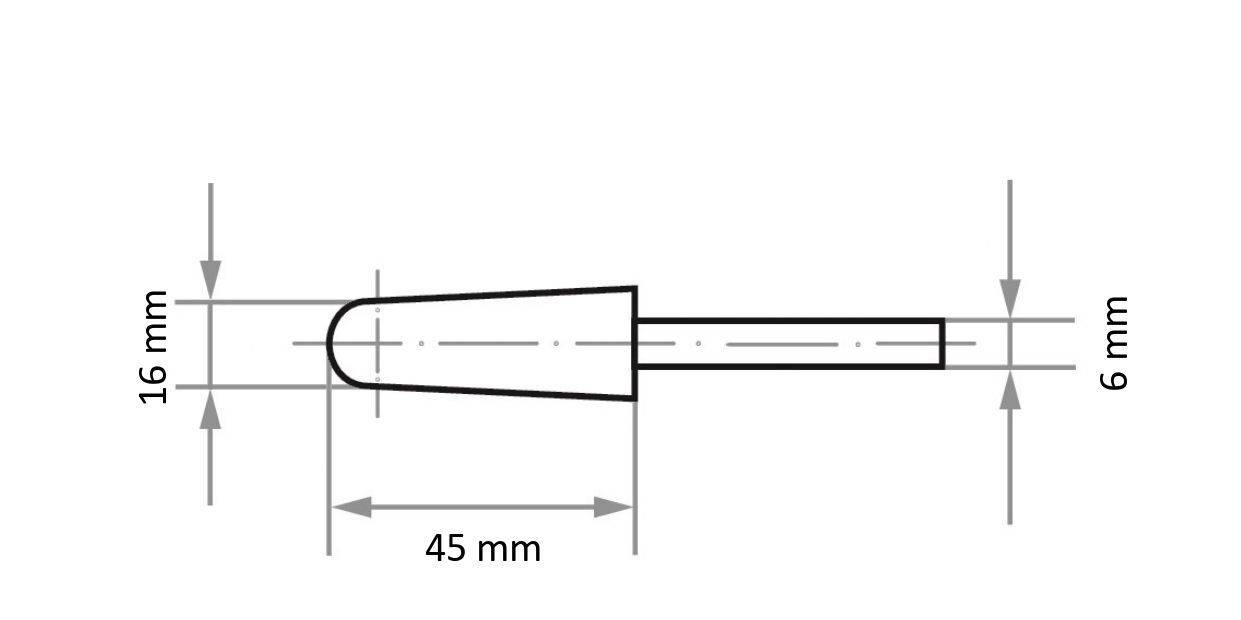

Grinding point AS-3 circular roll shape for cast 16x45 mm
- Perfect results on cast iron with the mixture of white and normal corundum
Technical specifications
- Safety standard EN 12413
- Tool holder: Shaft
- Tool holder dimensions 6 mm
- Shaft length 40 mm
- Tool form: Round rolled
- Grain size - FEPA 36
- Form group - GS: A - forms
- Grinding agent: HK
- Hardness: M
- Binding type: V ceramic binding
- Binding: V13
- Stars: 2
- Suitability Steel and cast steel RM up to 800 N/mm²: Suitable
- Suitability rust, acid, heat-resistant. Suitable cast steel
- Suitability cast iron: Well suitable
- Application cast: Well suitable
- Application Precision machining: Well suited
- Suitable for steel: Well suited
- Suitable for Inox/Steel
- Suitable for cast: Well suited
- Product type
Grinding bit
- Shank Ø
6 mm
- Grit size
36
- Material
Ceramic
- (Ø)
6 mm
- Length
40 mm
- Use
Stainless steel
- Shape
drum-shaped
- Content
20 pc(s)
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3441357 LUKAS-ERZETT A206201645633 Grinding bit Diameter 6 mm 20 pc(s)
Description
Perfect results on cast iron with the mixture of white and normal corundum
Quality-tested: High safety through regular testing
No dangerous shank breakage thanks to high-quality steel shaft
Stainless steel, zinc-nickel coating
Perfect dimensional stability: Fits optimally into the drive machine
No chrome coating
Combination of hard and tough grain: For machining cast iron and cast steel
The ceramic grinding pin HK is characterized by a mixture of pink and normal corundum and achieves perfect results on castings by combining hard and tough grain. The properties of the various castings are largely determined by their carbon content and by the shape in which the carbon is excreted in the structure. The machining of castings is usually "rough". Often the jobs to be edited are difficult to access. With the grinding pin HK large burr, sprue and riser can be removed without any problem. Our grinding tools for the machining of cast materials include special mixed grains and resistant bonds, which are optimally suited for the above-mentioned applications. The good "grip" of the grinding grain and the smooth running of the grinding tools support ergonomic work with low application of force. Abrasive bodies can be manufactured in a variety of dimensions and different fabrics. This means that the individual tool is available for every application.
This text is machine translated.
Quality-tested: High safety through regular testing
No dangerous shank breakage thanks to high-quality steel shaft
Stainless steel, zinc-nickel coating
Perfect dimensional stability: Fits optimally into the drive machine
No chrome coating
Combination of hard and tough grain: For machining cast iron and cast steel
The ceramic grinding pin HK is characterized by a mixture of pink and normal corundum and achieves perfect results on castings by combining hard and tough grain. The properties of the various castings are largely determined by their carbon content and by the shape in which the carbon is excreted in the structure. The machining of castings is usually "rough". Often the jobs to be edited are difficult to access. With the grinding pin HK large burr, sprue and riser can be removed without any problem. Our grinding tools for the machining of cast materials include special mixed grains and resistant bonds, which are optimally suited for the above-mentioned applications. The good "grip" of the grinding grain and the smooth running of the grinding tools support ergonomic work with low application of force. Abrasive bodies can be manufactured in a variety of dimensions and different fabrics. This means that the individual tool is available for every application.
This text is machine translated.
System requirements
- Straight grinder
