Buy LUKAS-ERZETT A2203030206106 Flap wheel 10 pc(s)

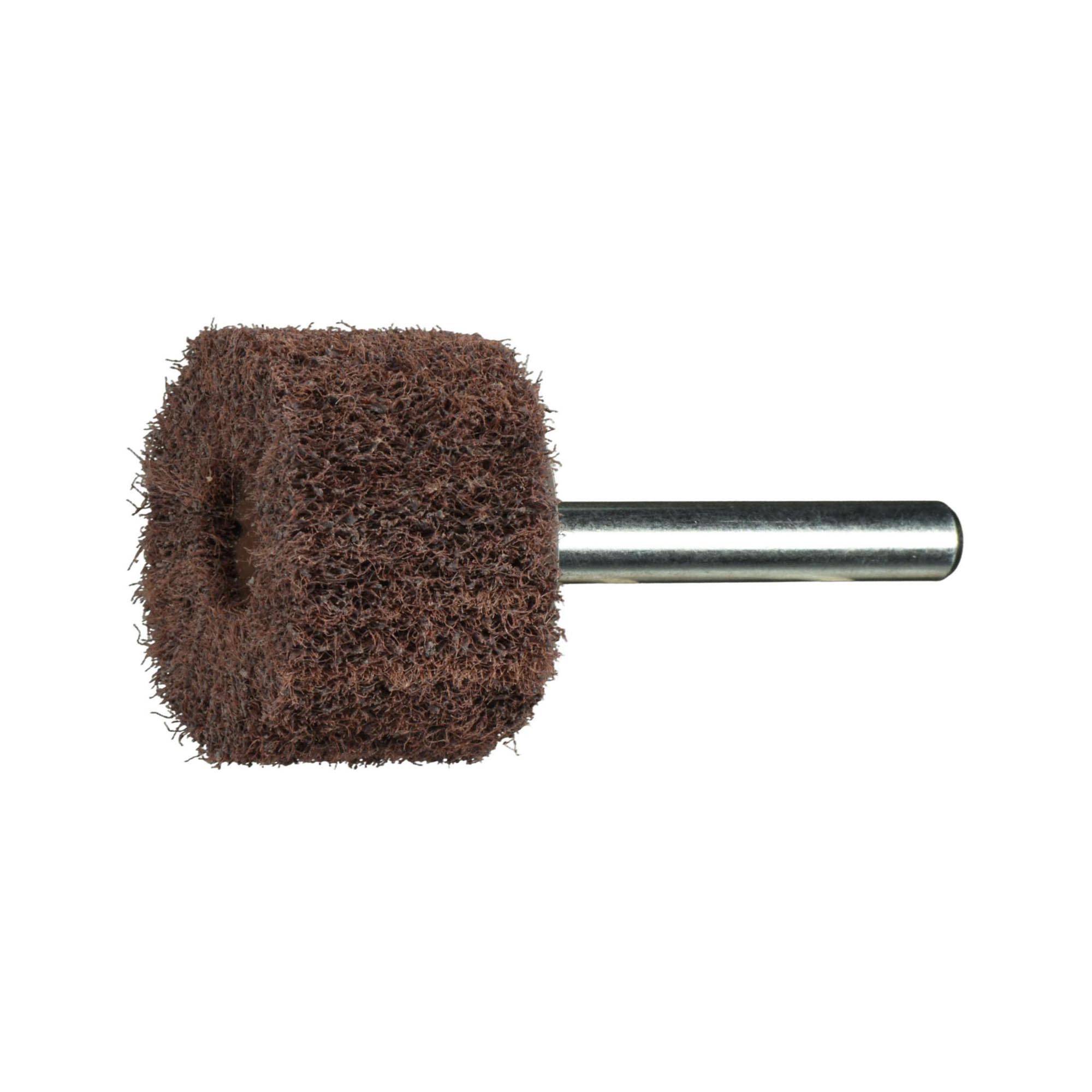

A cylindrical brown abrasive wheel with a metal shank, typically used for polishing or sanding surfaces.

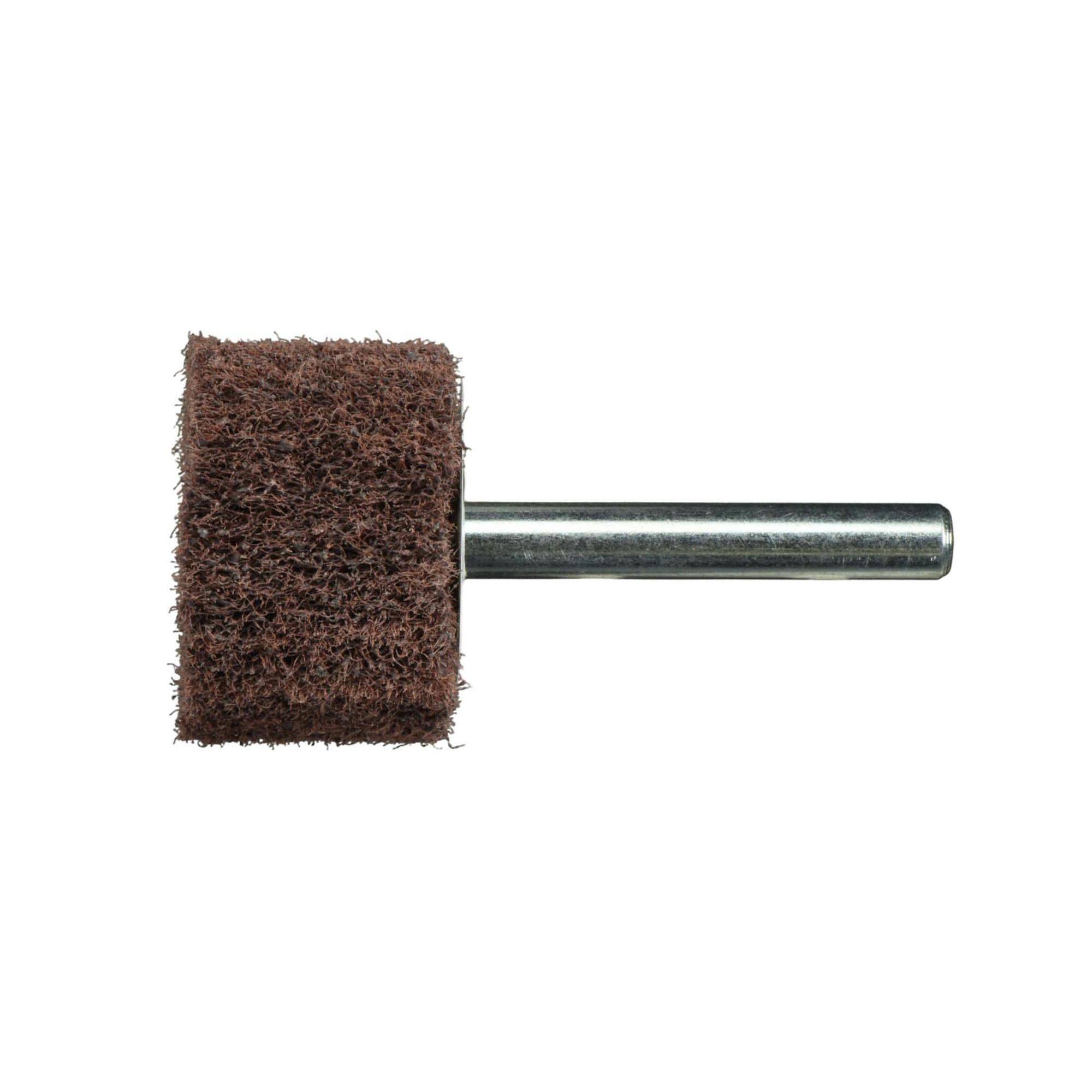

A cylindrical abrasive polishing attachment with a metal shank, used for smoothing surfaces, on a white background.

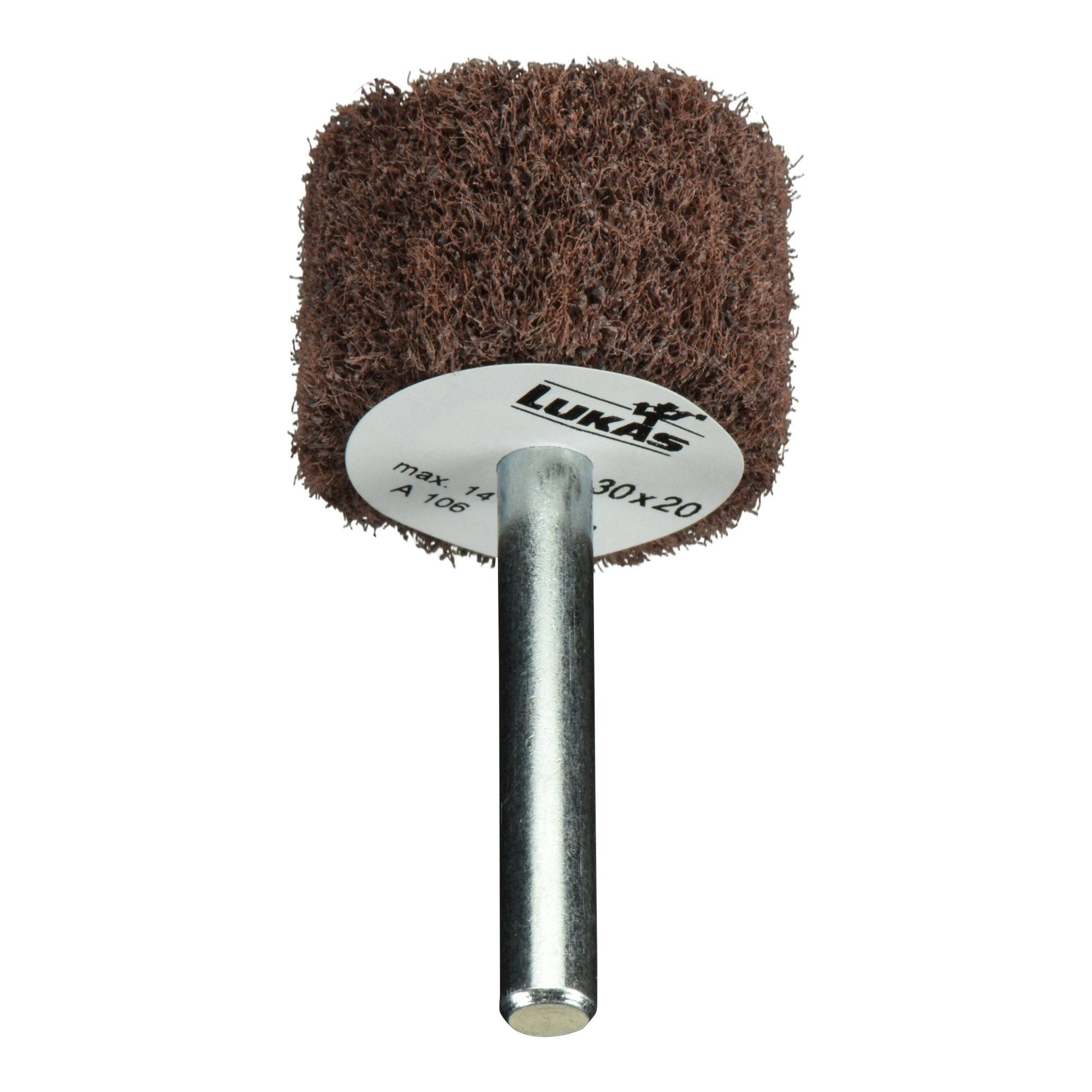

'Alox non-woven flap wheel 30x20 mm with 6 mm shaft for sanding and finishing curved surfaces, suitable for power tools.'

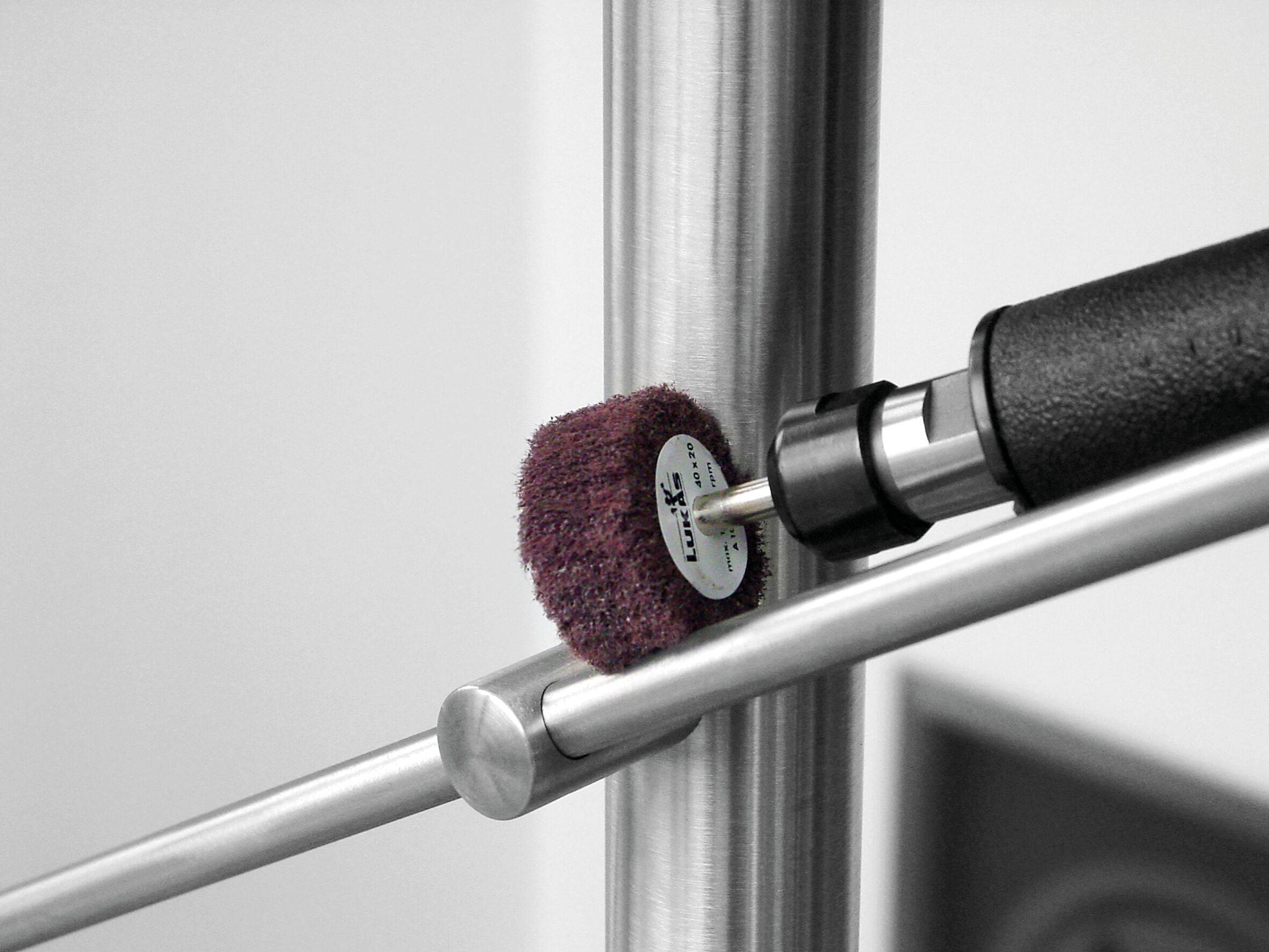

A close-up of a polishing tool with a circular abrasive pad smoothing a metal rod on a modern, industrial machine.

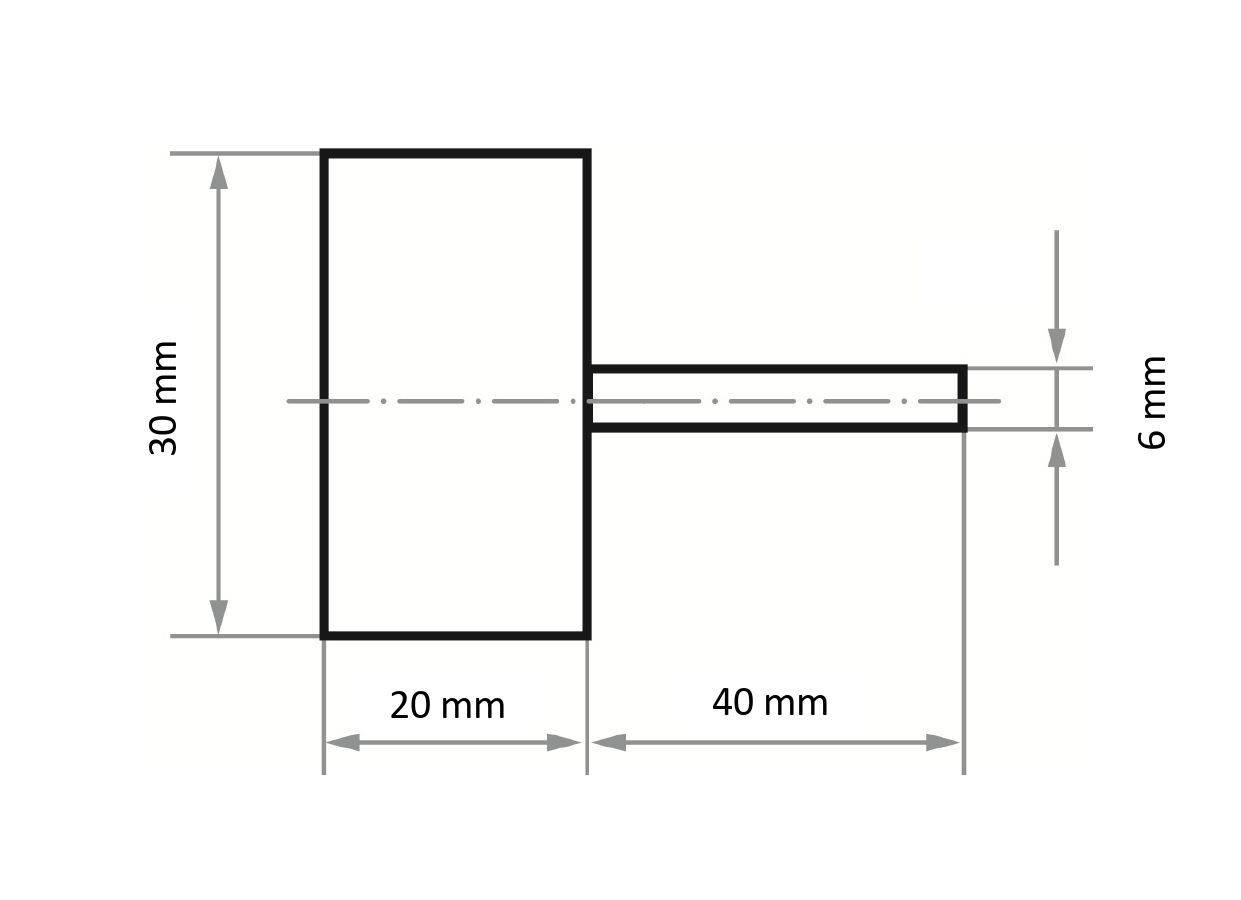

Cross-sectional diagram showing two rectangular shapes joined at right angles. One is 30x20mm, the other 6x40mm, with labeled dimensions.

1/5

Fast track dispatch on Mon, 12 Oct

2 Set(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number (Package size 10 pc(s))

Set(s)

Total (€ 5.88 / piece)

€ 58.82

plus VAT.

Only 2 Set(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Fan sander SFV universal 30x20 mm shaft 6 mm corundum grit 180

Grind surfaces efficiently and flexibly

Technical specifications

Safety standard EN 13743 & OSA
Tool holder: Shaft
Tool holder dimensions 6 mm
Shaft length 40 mm
V max. (m/s): 30
n max. (1/min): 14000
Cylinder shape
Stars: 2
Fleece/material: 180
Shape (trays): Cylinder (ZY)
Suitability Steel and cast steel RM up to 800 N/mm²: Well suitable
Suitability alloyed, coated steels RM up to 1200: Well suited
Suitability for tool steels RM up to 1300 N/mm²: Suitable
Suitability rust, acid, heat-resistant. Suitable cast steel
Suitability cast iron: Well suitable
Suitable Al, Mg and Cu alloys: Well suited
Suitability titanium and nickel alloys: Suitable
Suitability titanium and nickel alloys: Well suitable
Application deburring: Well suited
Application fine sharpening: Well suitable
Polishing application: Suitable
Application Cleaning: Well suited
Application welding seam processing: Suitable
Suitable for steel: Well suited
Suitable for Inox/Steel
Suitable for cast: Well suited
Suitable for Aluminum: Well suitable
Suitable for titanium
Suitable for plastic / wood: Well suited

Product type: Flap wheel

Shank Ø: 6 mm

Grit size: 180

Content: 10 pc(s)

UKCA: not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3441703 LUKAS-ERZETT A2203030206106 Flap wheel 10 pc(s)

Description

Grind surfaces efficiently and flexibly
Quality-tested: High safety through regular testing
Good life on various materials, rough and fine grinding
Good price-performance ratio thanks to normal corundum
No dangerous shank breakage thanks to high-quality steel shaft
The flexible bearing surface allows it to work in saving time
Perfect dimensional stability: Fits optimally into the drive machine
Perfect result even on uneven surfaces
Stainless steel, zinc-nickel coating
Soft material: Hardly any force required when using
No chrome coating
This sanding compartment consists of individual non-woven slats which are attached to the axle of the tool in a fan-shaped way and is so well suited in manual use for matting, glazing, polishing, smoothing or the final grinding of tool surfaces. Thanks to the used polyamide, the sanding fleece fits even the uneven surfaces perfectly. They save power and time while working and still achieve a perfect surface result. The normal corundum used in this sanding compartment stands out with good durability on construction steel, while roughing and coarse grinding. It allows you to work cost-effectively. The high-quality steel shaft of the sanding fan fits perfectly into the drive machine. Clamps, slip or even shaft breakage are a thing of the past. Regular tests ensure a high level of safety. The zinc-nickel coating keeps this tool free of rust.

This text is machine translated.
