Buy LUKAS-ERZETT A2203060306306 Flap wheel 10 pc(s)

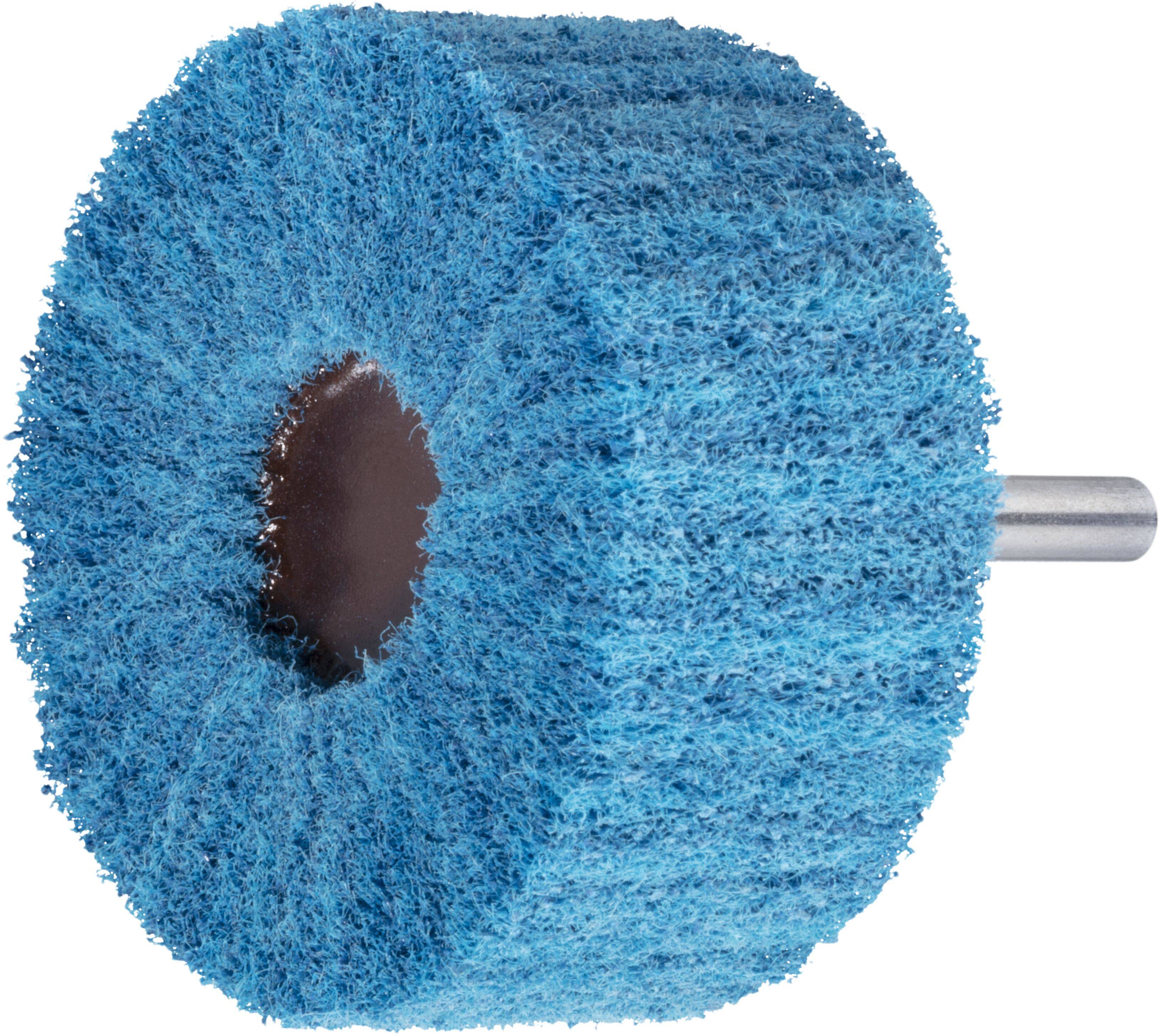

A cylindrical blue polishing brush with a central metal shaft used for surface finishing and smoothing tasks.

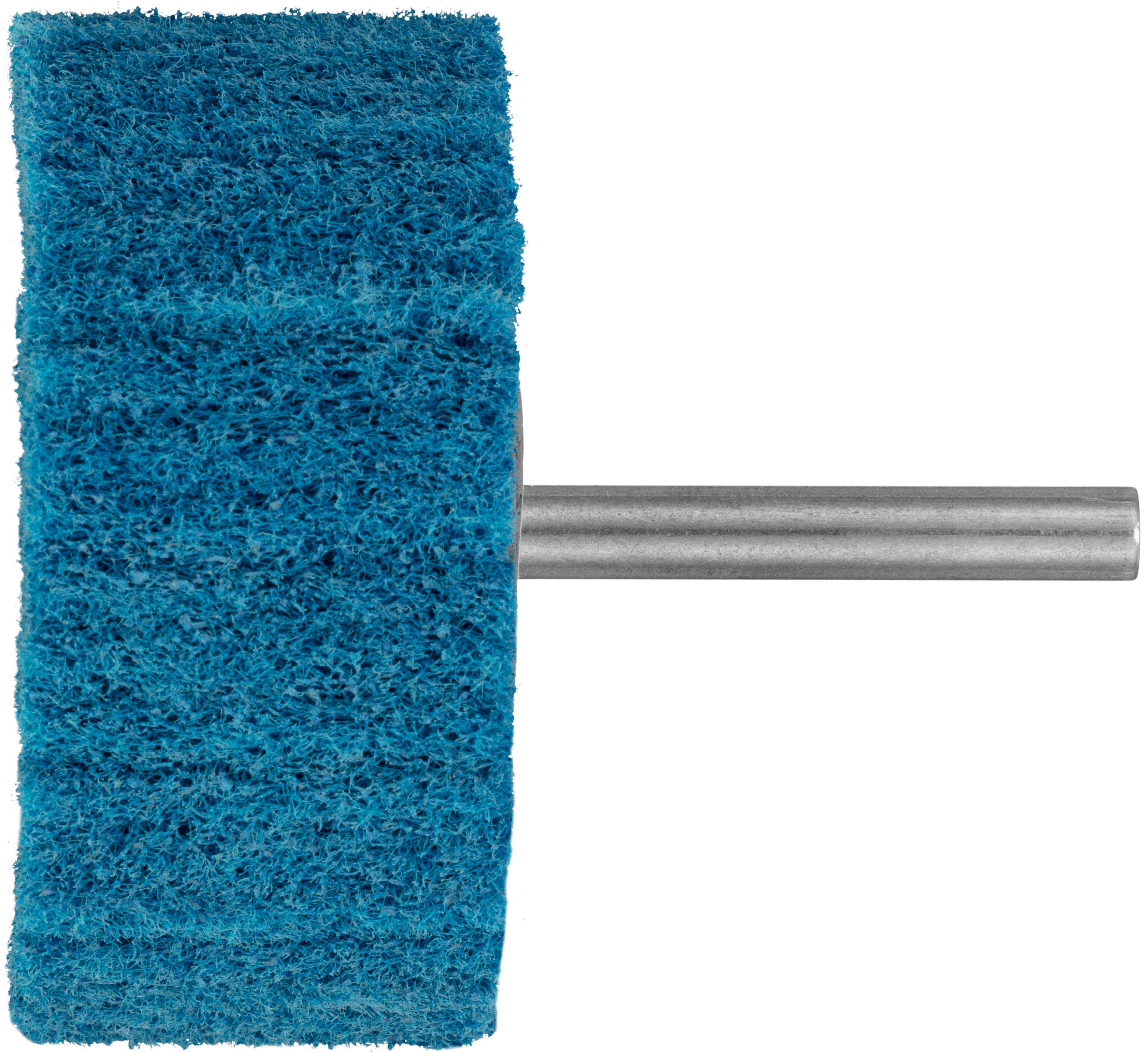

A blue abrasive wheel with a cylindrical metal shaft for attachment, used for sanding or polishing surfaces.

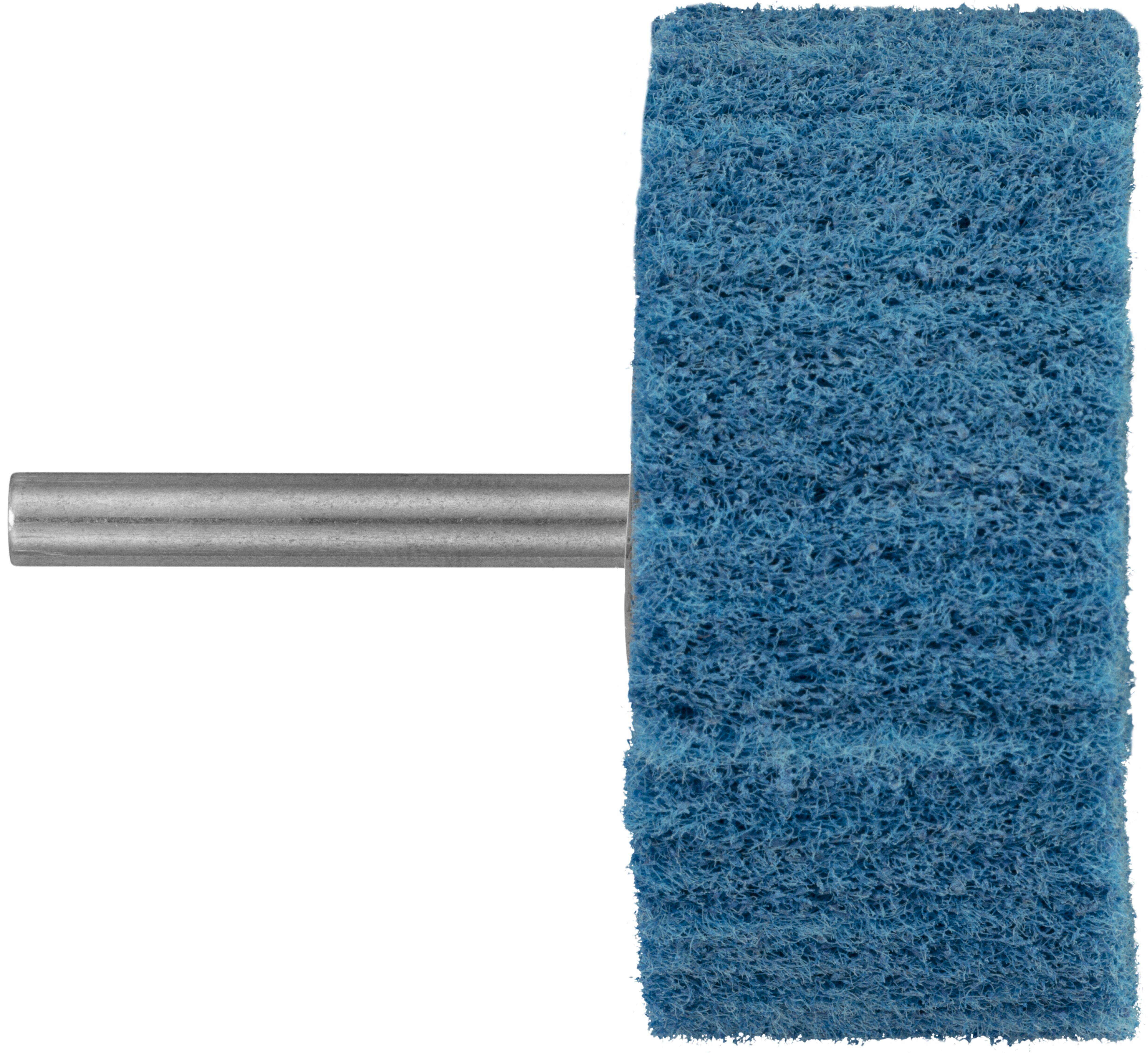

'Grinding Wheel with Shank', a blue, abrasive wheel attached to a metal rod, used for sanding or surface finishing tasks.

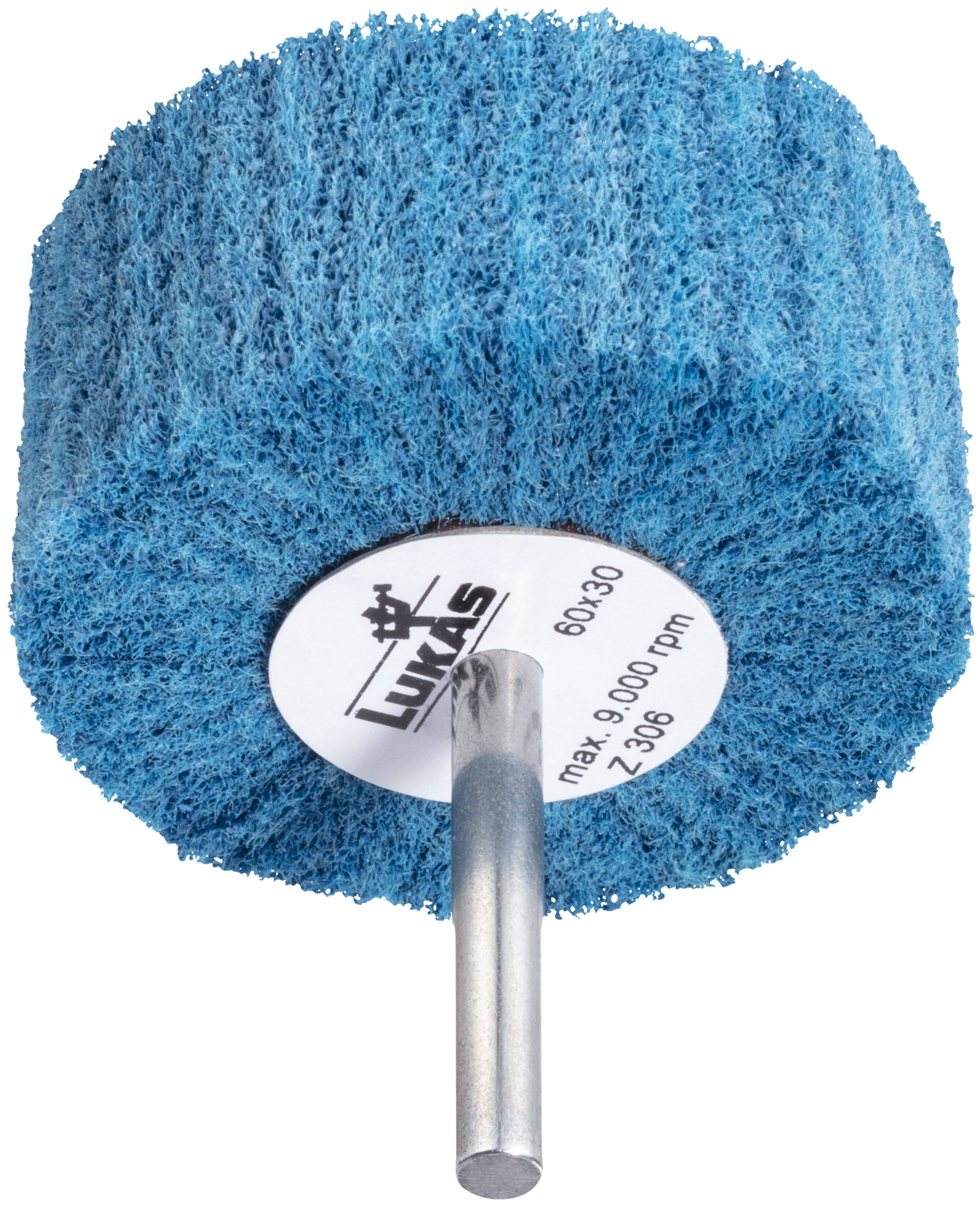

A blue abrasive brush wheel with a cylindrical design attached to a metallic rod, labeled 'Lukas 60x30 max. 9,000 rpm Z:308'.

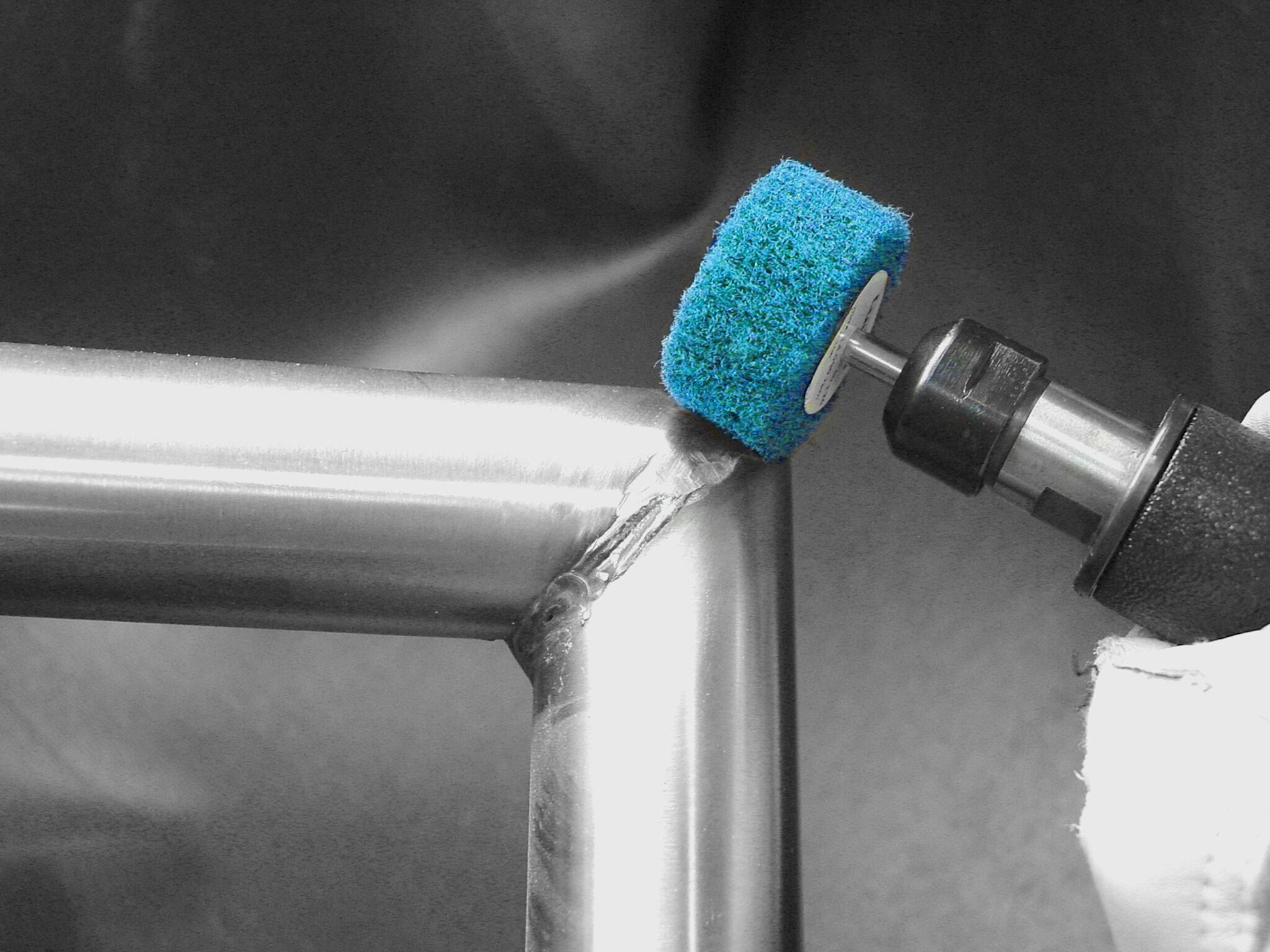

A close-up image of a blue polishing tool smoothing the welded joint of a stainless steel pipe frame.

Cross-section diagram of an L-shaped bracket. Vertical section is 60 mm by 30 mm; horizontal section is 40 mm by 6 mm.

1/6

Dispatches on Tue, 20 Oct

Sales and shipping:

Conrad Electronic Terms & Conditions

Number (Package size 10 pc(s))

Set(s)

Total (€ 8.82 / piece)

€ 88.23

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

Fan head grinding SFV for stainless steel 60x30 mm shaft 6 mm zircon corundum grund 180

Grind flexibly and surfaces with Hohem abrasion

Technical specifications

Safety standard EN 13743 & OSA
Tool holder: Shaft
Tool holder dimensions 6 mm
Shaft length 40 mm
V max. (m/s): 30
n max. (1/min): 9000
Cylinder shape
Stars: 3
Fleece/material: 180
Shape (trays): Cylinder (ZY)
Suitability Steel and cast steel RM up to 800 N/mm²: Well suitable
Suitability alloyed, coated steels RM up to 1200: Well suited
Suitability for tool steels RM up to 1300 N/mm²: Well suited
Suitability rust, acid, heat-resistant. Steel/cast: Well suited
Suitability cast iron: Well suitable
Suitability titanium and nickel alloys: Well suitable
Suitability titanium and nickel alloys: Suitable
Application deburring: Suitable
Application fine sharpening: Well suitable
Polishing application: Suitable
Application welding seam processing: Suitable
Suitable for steel: Well suited
Suitable for Inox/Steel: Well suited
Suitable for cast: Suitable
Suitable for titanium: Well suited

Product type: Flap wheel

Shank Ø: 6 mm

Grit size: 180

Content: 10 pc(s)

UKCA: not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3441736 LUKAS-ERZETT A2203060306306 Flap wheel 10 pc(s)

Description

Grind flexibly and surfaces with Hohem abrasion
Quality-tested: High safety through regular testing
High hardness and sharpness for long durability
No dangerous shank breakage thanks to high-quality steel shaft
No chrome coating
Perfect dimensional stability: Fits optimally into the drive machine
Also efficiently splints even harder materials
Stainless steel, zinc-nickel coating
Self-sharpening effect: High abrasion particularly on stainless steel
Soft material: Hardly any force required when using
The flexible bearing surface allows it to work in saving time
Perfect result even on uneven surfaces
This sanding compartment consists of individual non-woven slats which are attached to the axle of the tool in a fan-shaped way and is so well suited in manual use for matting, glazing, polishing, smoothing or the final grinding of tool surfaces. Thanks to the used polyamide, the sanding fleece fits even the uneven surfaces perfectly. They save power and time while working and still achieve a perfect surface result. Due to the self-sharpening effect of the zirconium oxide, combined with a high hardness and sharpness of the grinding grain, this tool achieves high deposits and a long service life especially on hard and tough materials such as stainless steel. The high-quality steel shaft of the sanding fan fits perfectly into the drive machine. Clamps, slip or even shaft breakage are a thing of the past. Regular tests ensure a high level of safety. The zinc-nickel coating keeps this tool free of rust.

This text is machine translated.
