Buy LUKAS-ERZETT A2223060506104 Flap wheel 10 pc(s)

A brown abrasive flap wheel with a cylindrical shape and a metal shank extends from one end. It's used for sanding or polishing surfaces.

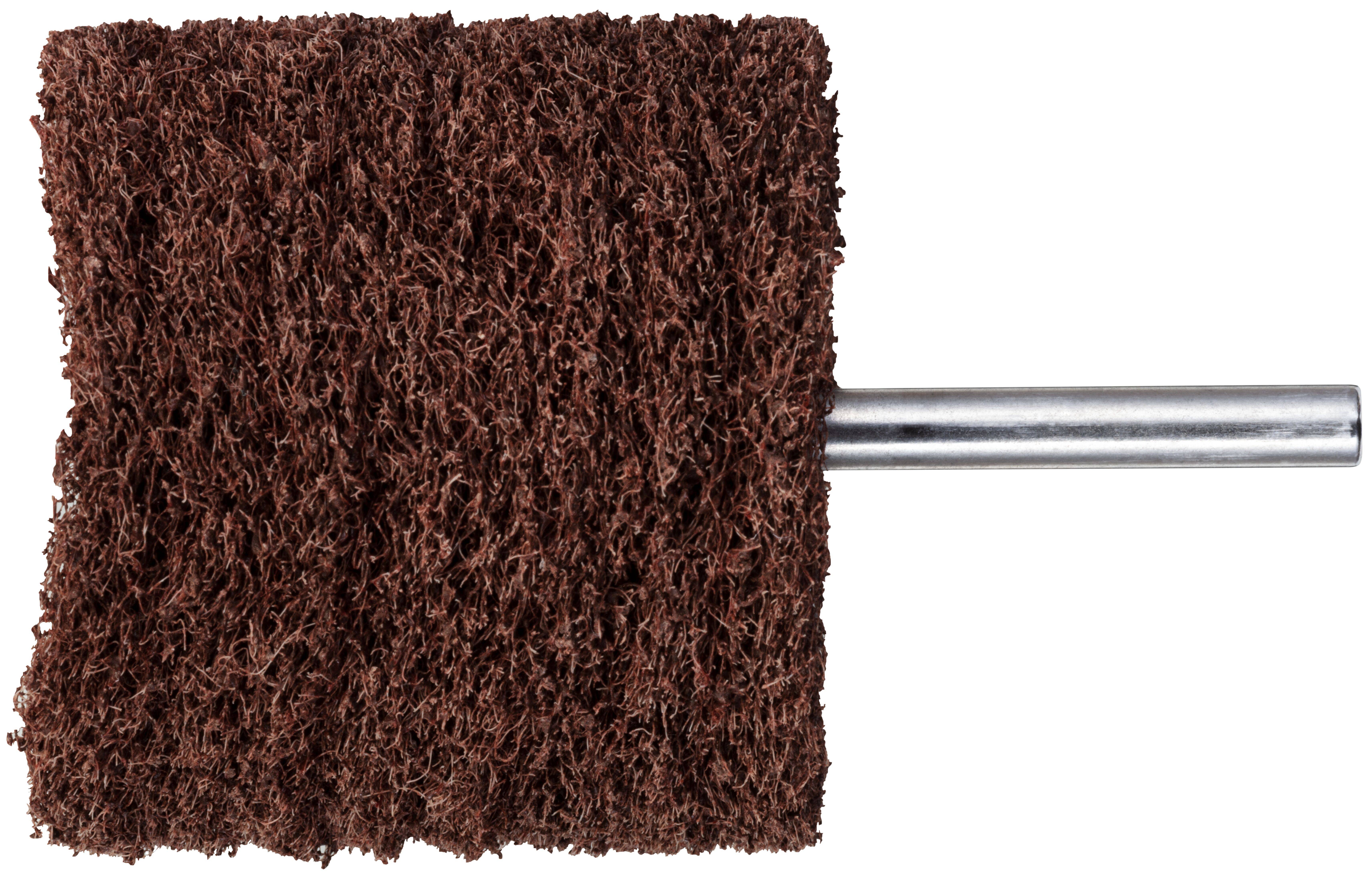

A square brush with thick brown bristles and a metal handle, used for cleaning or scrubbing surfaces.

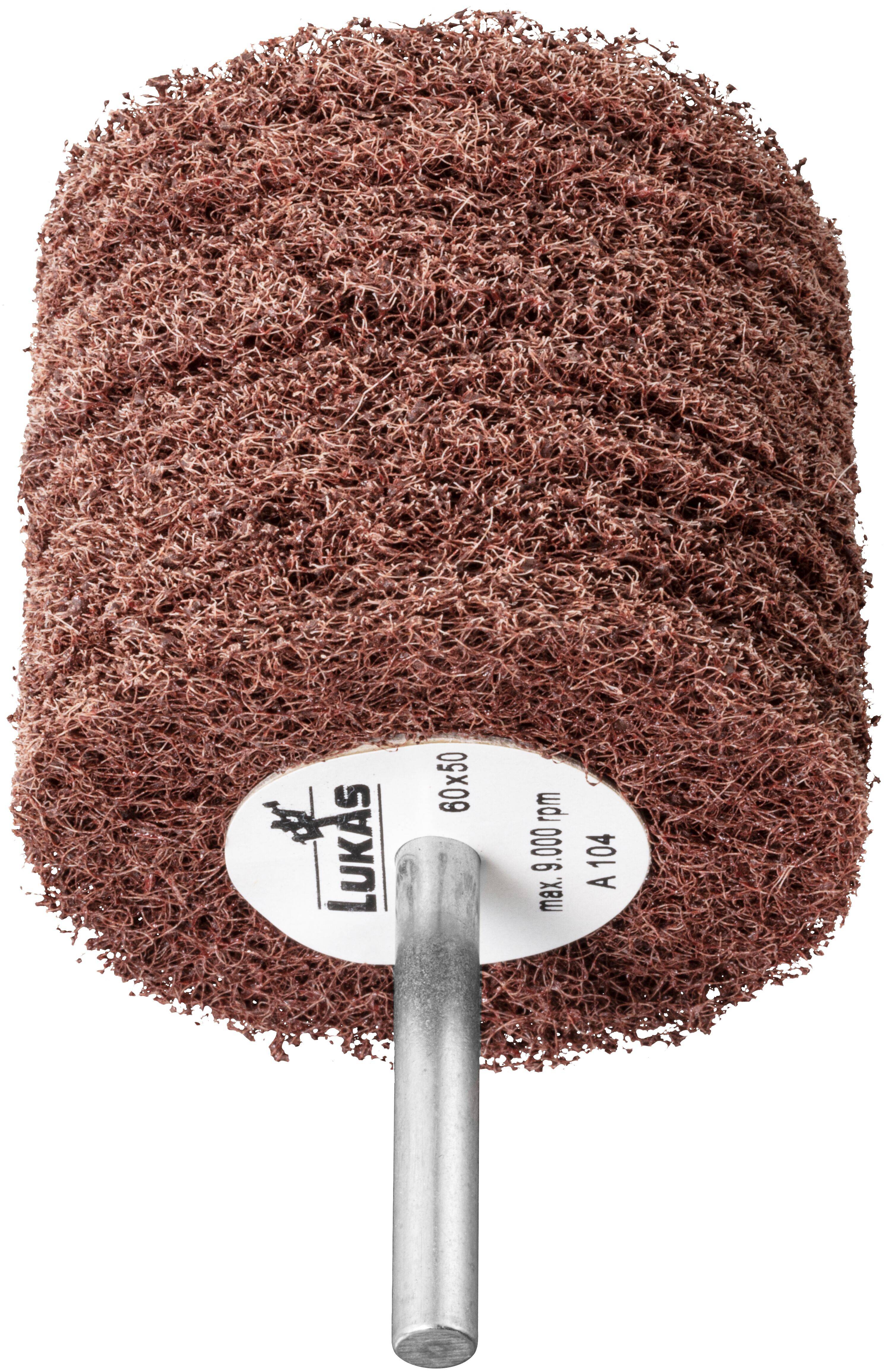

'Abrasive flap wheel with a cylindrical shape and brown textured surface, attached to a metal spindle, used for surface finishing.'

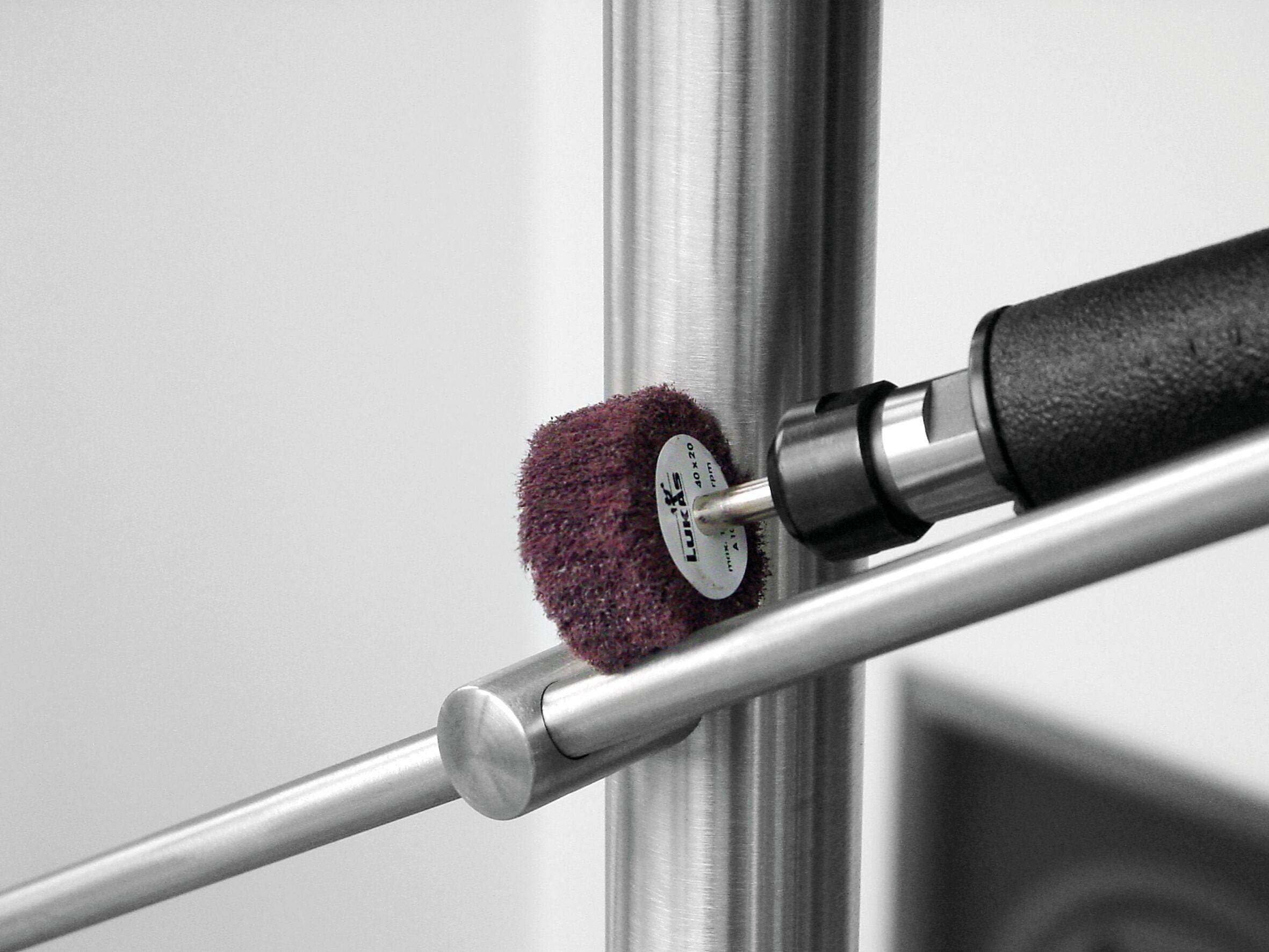

A polishing tool with a maroon abrasive wheel is applied to a metal rod, smoothing its surface. The scene is mechanical and industrial.

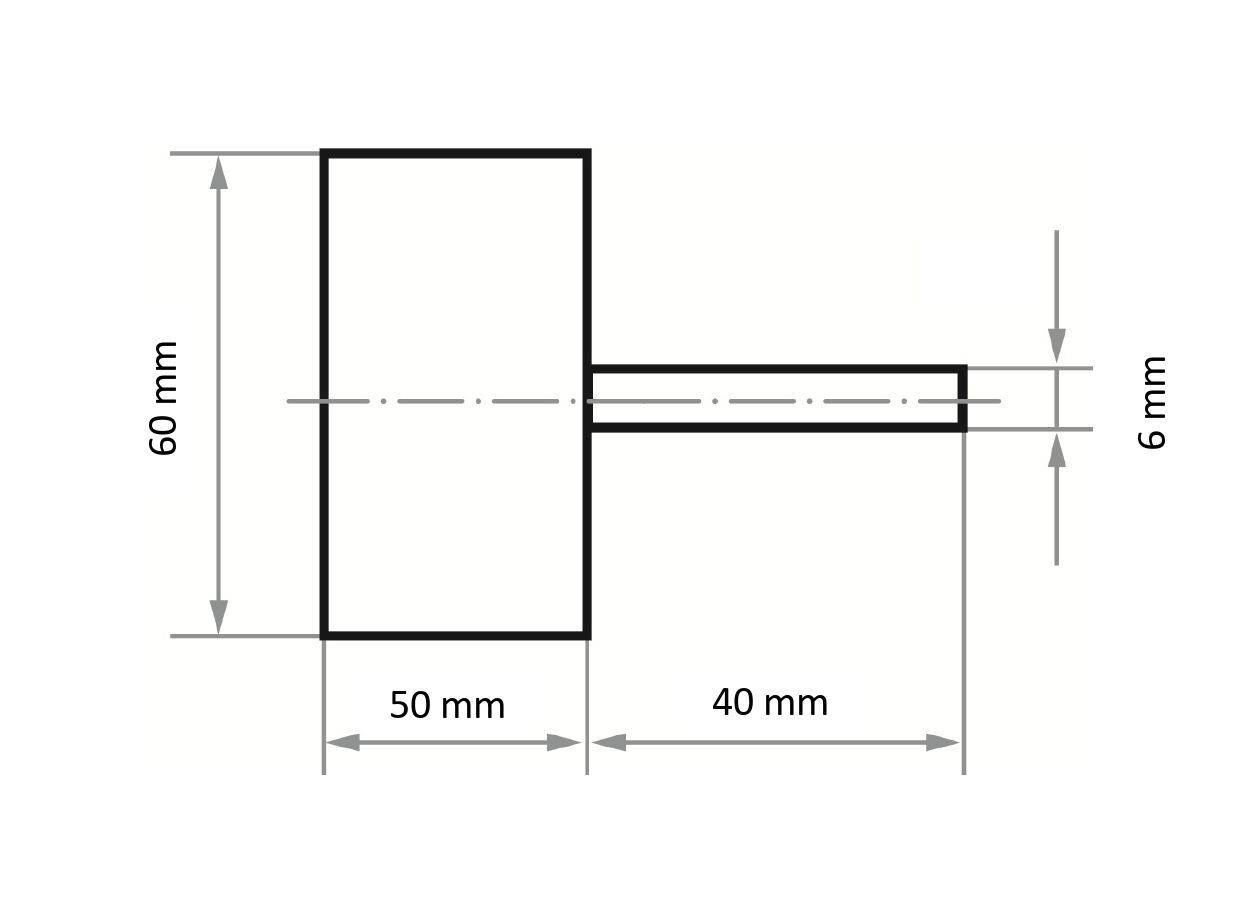

Technical drawing of an object showing a left vertical rectangle measuring 50 mm wide by 60 mm high, and a right horizontal rectangle measuring 40 mm long by 6 mm high, attached on the right side.

1/5

Dispatches on Tue, 20 Oct

Sales and shipping:

Conrad Electronic Terms & Conditions

Number (Package size 10 pc(s))

Set(s)

Total (€ 10.50 / piece)

€ 105.03

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

Fan sander SFR universal 60x50 mm shaft 6 mm corundum grain 100

With stacked elastic fleece ends, especially suitable for machining profiled workpieces

Technical specifications

Safety standard EN 13743
Tool holder: Shaft
Tool holder dimensions 6 mm
Shaft length 40 mm
V max. (m/s): 30
n max. (1/min): 9000
Cylinder shape
Stars: 2
Fleece/material: 100
Shape (trays): Cylinder (ZY)
Suitability Steel and cast steel RM up to 800 N/mm²: Well suitable
Suitability alloyed, coated steels RM up to 1200: Well suited
Suitability for tool steels RM up to 1300 N/mm²: Suitable
Suitability rust, acid, heat-resistant. Suitable cast steel
Suitability cast iron: Well suitable
Suitable Al, Mg and Cu alloys: Well suited
Suitability titanium and nickel alloys: Suitable
Suitability titanium and nickel alloys: Well suitable
Application deburring: Well suited
Application fine sharpening: Well suitable
Polishing application: Suitable
Application Cleaning: Well suited
Application welding seam processing: Suitable
Suitable for steel: Well suited
Suitable for Inox/Steel
Suitable for cast: Well suited
Suitable for Aluminum: Well suitable
Suitable for titanium
Suitable for plastic / wood: Well suited

Product type: Flap wheel

Shank Ø: 6 mm

Grit size: 100

Content: 10 pc(s)

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3441834 LUKAS-ERZETT A2223060506104 Flap wheel 10 pc(s)

Description

With stacked elastic fleece ends, especially suitable for machining profiled workpieces
The flexible bearing surface allows it to work in saving time
Perfect result even on uneven surfaces
No dangerous shank breakage thanks to high-quality steel shaft
Perfect dimensional stability: Fits optimally into the drive machine
Soft material: Hardly any force required when using
Stainless steel, zinc-nickel coating
Good price-performance ratio thanks to normal corundum
No chrome coating
Quality-tested: High safety through regular testing
Good life on various materials, rough and fine grinding
The LUKAS SFR fan grinder is characterized by stacked elastic fleece ends, which are particularly suitable for machining profiled workpieces. Thanks to the used polyamide , the sanding fleece fits even the uneven surfaces perfectly. They save power and time while working and still achieve an optimum surface result. The high-quality steel shaft of the tool fits Ideal into the drive machine so that clamps, slip or even shank breakage are a thing of the past. The standard corundum used in this tool is characterized by good service life on structural steel in roughing and grinding and allows economical working. In addition, the tool remains stainless due to the zinc-nickel coating and regular tests ensure a high level of safety. The fan grinder is used in manual for matting, glazing, polishing, cleaning or for finishing on workpiece surfaces. At LUKAS you will find a large selection of different fan grinders with different diameters, abrasives and qualities. Means we've got the right sander for almost any application.

This text is machine translated.
