LUKAS-ERZETT A27442300401418 Flap disc Diameter 230 mm Grit size=40 5 pc(s)
EAN:
Part number:
Item no:
Number (Package size 5 pc(s))
Total (€ 25.21 / piece)
€ 126.04
plus VAT.
Highlights & Details
Fan grinding disc V2 Power universal Ø 230 mm zirconium oxide grain 40 | flat
- V2 Power: Optimized for steel machining
Technical specifications
- Safety standard EN 13743 & OSA
- Tool holder: Drilling
- Tool holder dimensions 22.23 mm
- V max. (m/s): 80
- n max. (1/min): 6600
- Tool form: Straight
- Grain size - fleece 40
- Stars: 3
- Grinding agent: ZKS (zirconium corundum with grinding-active cover binding)
- Flap-wheel plate design: V2 Power iQ series
- Flap-disc shape: Flat
- Suitability Steel and cast steel RM up to 800 N/mm²: Well suitable
- Suitability alloyed, coated steels RM up to 1200: Well suited
- Suitability for tool steels RM up to 1300 N/mm²: Well suited
- Suitability rust, acid, heat-resistant. Steel/cast: Well suited
- Suitability cast iron: Well suitable
- Suitable Al, Mg and Cu alloys: Well suited
- Suitability titanium and nickel alloys: Suitable
- Suitability titanium and nickel alloys: Well suitable
- Chamfer application: Suitable
- Application deburring: Well suited
- Application Grinding: Well suited
- Application of welding seam working: Well suited
- Suitable for steel: Well suited
- Suitable for Inox/Steel: Well suited
- Suitable for cast: Well suited
- Suitable for Aluminum: Well suitable
- Suitable for titanium
- Suitable for plastic / wood: Well suited
- Product type
Flap disc

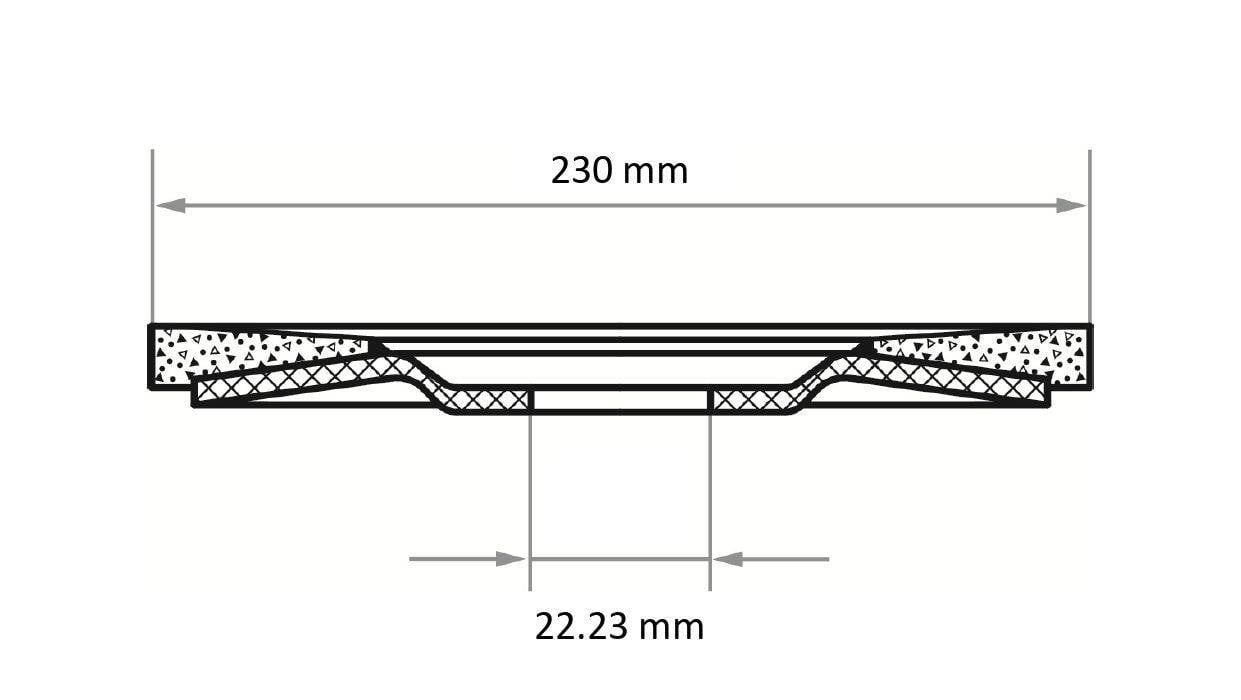

- (Ø)
230 mm
- Bore Ø
22.23 mm
- Grit size
40
- Material
Zirconium/corundum
- Material suitability
Steel
- Content
5 pc(s)
- Type
Straight
- Rotational speed (max.)
6600 U/min
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3442575 LUKAS-ERZETT A27442300401418 Flap disc Diameter 230 mm Grit size=40 5 pc(s)
Description
V2 Power: Optimized for steel machining
Less vibration - more pleasant to work
More security through an optimized gluing of the lamellae
More abrasive grain outdoors for a high grinding speed
More power, higher working speed and better surface results than with a roughing disk
Quieter: 50% less noise than with normal roughing disks
Light carrier material for low tool weight
Can be used for a long time - no glazing of the grinding grain
Can be used universally on standard angle grinders thanks to 22.23 mm bore
Ideal can also be used for welding seam working on
Cost-efficiency thanks to optimum utilization of the entire sanding pad thanks to specially shaped slats
Also efficiently splints even harder materials
No bluish coloring - less rework
Tool innovation: Available only from LUKAS
Environmentally friendly manufactured with the latest resin hardening technology
Safe working even with high rotational speeds and temperatures, thanks to the special resin adhesive
Self-sharpening effect: High abrasion particularly on stainless steel
A glass-fabric carrier supports an excellent surface result through its flexibility
Elastic backing material: Less vibration at work
Quality-tested: High safety through regular testing
Inexpensive
Manufactured with the best-selling carrier
Excellent benefits of the grinding grain thanks to a flat arrangement for a long service life
Highest life span by multi-layered grinding pad
High hardness and sharpness for long durability
High security: No breaking of very tensile-resistant glass fibers
Faster finished due to the highest removal rate
Always fresh abrasive sheets in use: Wear releases underlying slats
The V2 Power steel grinding plate with zirconium oxide is ideal for machining steel and also for welding seams. The light, stable and elastic glass-fabric carrier of the tool makes an excellent surface result possible through its flexibility. The high fracture protection as well as low vibrations during work and easy handling make the grinding disc plate perfect. In addition, the flat position of the optimally bonded sickle fins not only increases the work safety, but also reduces tool wear. The abrasive grain sticks particularly firmly to the surface, is extremely durable and is optimally used to achieve a high degree of cost efficiency. On the outside of the tool there are a lot of grinding grains, WAS results in an especially high abrasion rate per minute. Due to the self-sharpening effect of the zirconium oxide, combined with a high hardness and sharpness of the grinding grain, this grinding tool achieves high abrasion on hard and tough materials such as stainless steel. Thanks to the multi-layered grinding coating , the grinding blade plate is always so sharp as with the first use. If the upper fins wear, the fresh abrasive surface of the underlying slats is exposed. In this way the tool has a long service life and a constant quality of work. The wide range of LUKAS includes grinding units for all workpieces and all types of machining.
This text is machine translated.
Less vibration - more pleasant to work
More security through an optimized gluing of the lamellae
More abrasive grain outdoors for a high grinding speed
More power, higher working speed and better surface results than with a roughing disk
Quieter: 50% less noise than with normal roughing disks
Light carrier material for low tool weight
Can be used for a long time - no glazing of the grinding grain
Can be used universally on standard angle grinders thanks to 22.23 mm bore
Ideal can also be used for welding seam working on
Cost-efficiency thanks to optimum utilization of the entire sanding pad thanks to specially shaped slats
Also efficiently splints even harder materials
No bluish coloring - less rework
Tool innovation: Available only from LUKAS
Environmentally friendly manufactured with the latest resin hardening technology
Safe working even with high rotational speeds and temperatures, thanks to the special resin adhesive
Self-sharpening effect: High abrasion particularly on stainless steel
A glass-fabric carrier supports an excellent surface result through its flexibility
Elastic backing material: Less vibration at work
Quality-tested: High safety through regular testing
Inexpensive
Manufactured with the best-selling carrier
Excellent benefits of the grinding grain thanks to a flat arrangement for a long service life
Highest life span by multi-layered grinding pad
High hardness and sharpness for long durability
High security: No breaking of very tensile-resistant glass fibers
Faster finished due to the highest removal rate
Always fresh abrasive sheets in use: Wear releases underlying slats
The V2 Power steel grinding plate with zirconium oxide is ideal for machining steel and also for welding seams. The light, stable and elastic glass-fabric carrier of the tool makes an excellent surface result possible through its flexibility. The high fracture protection as well as low vibrations during work and easy handling make the grinding disc plate perfect. In addition, the flat position of the optimally bonded sickle fins not only increases the work safety, but also reduces tool wear. The abrasive grain sticks particularly firmly to the surface, is extremely durable and is optimally used to achieve a high degree of cost efficiency. On the outside of the tool there are a lot of grinding grains, WAS results in an especially high abrasion rate per minute. Due to the self-sharpening effect of the zirconium oxide, combined with a high hardness and sharpness of the grinding grain, this grinding tool achieves high abrasion on hard and tough materials such as stainless steel. Thanks to the multi-layered grinding coating , the grinding blade plate is always so sharp as with the first use. If the upper fins wear, the fresh abrasive surface of the underlying slats is exposed. In this way the tool has a long service life and a constant quality of work. The wide range of LUKAS includes grinding units for all workpieces and all types of machining.
This text is machine translated.
System requirements
- Angle grinder
