LUKAS-ERZETT A34033093126 Grinding bit Diameter 3 mm 1 pc(s)
EAN:
Part number:
Item no:
Number
Total (€ 34.45 / piece)
€ 34.45
plus VAT.
14-day return policy included
Highlights & Details

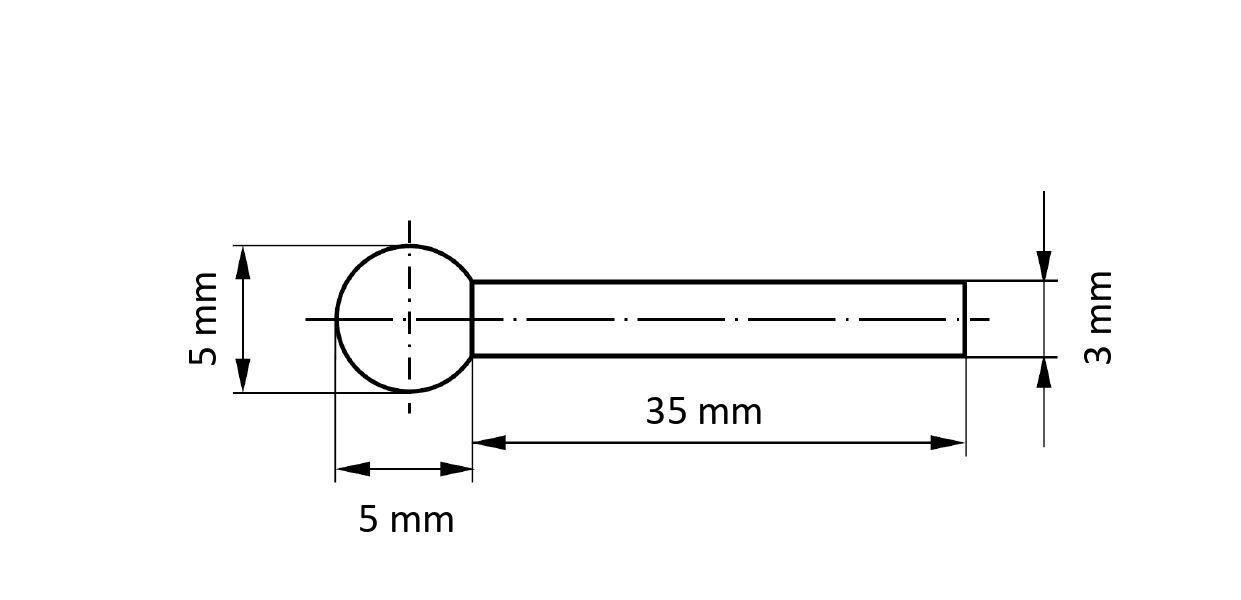

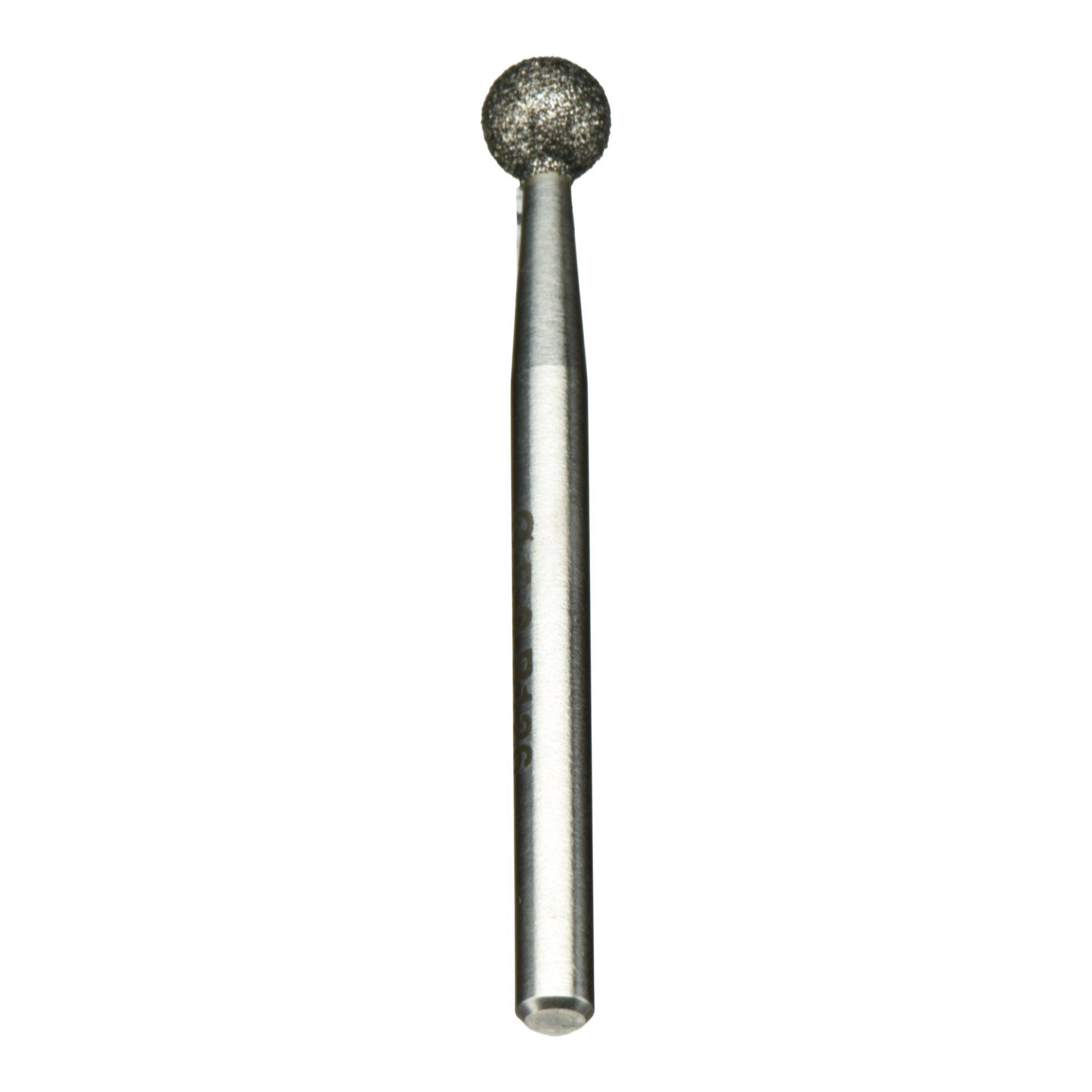

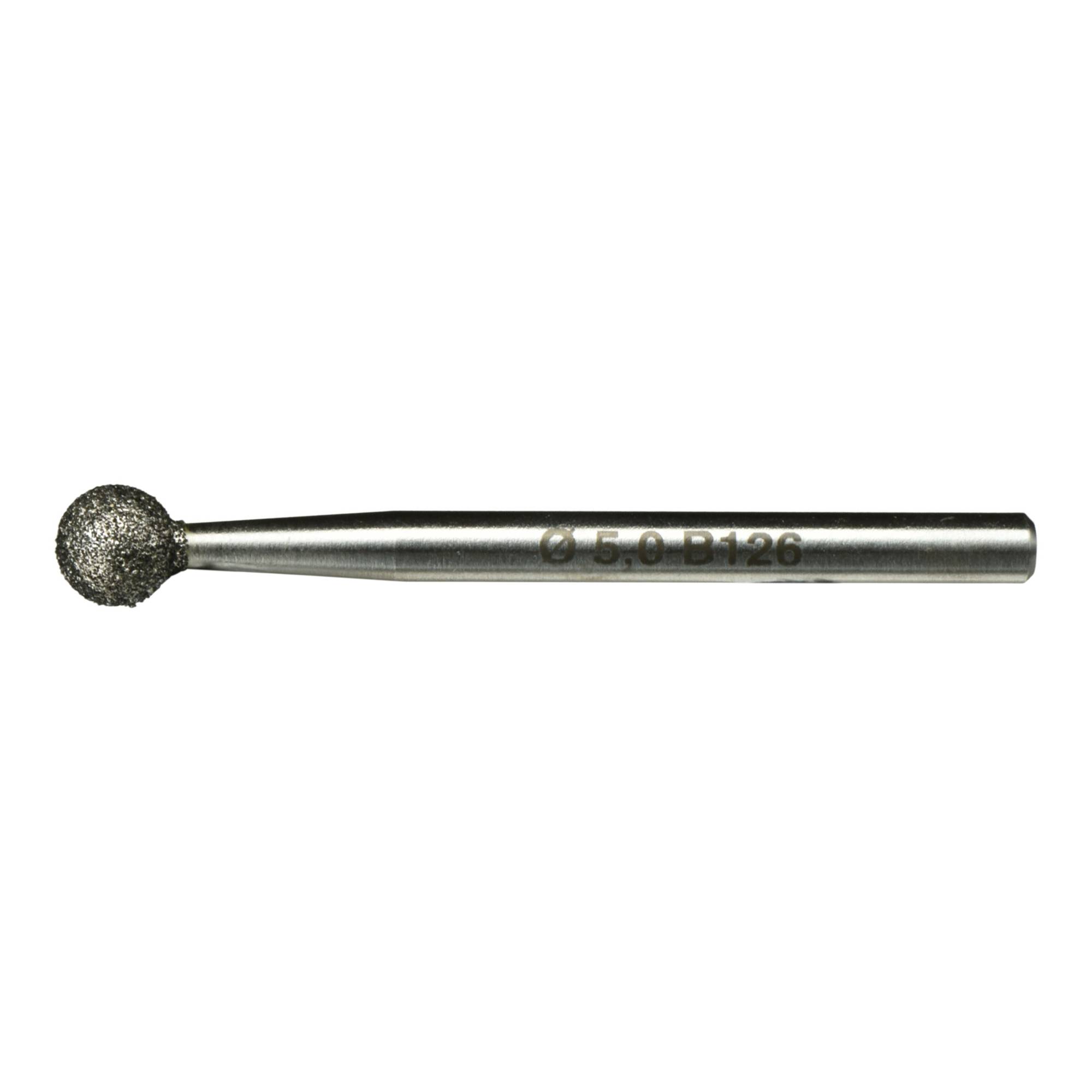

CBN grinding pin CSK ball shaped 5x5 mm shaft 3 mm
- High-power tool for precise applications
Technical specifications
- Safety standard EN 13236
- Tool holder: Shaft
- Tool holder dimensions 3 mm
- Shaft length 35 mm
- Tool form: Ball
- Grain size - µ: B126
- Stars: 2
- Suitability Steel and cast steel RM up to 800 N/mm²: Suitable
- Suitability for tool steels RM up to 1300 N/mm²: Well suited
- Suitability rust, acid, heat-resistant. Suitable cast steel
- Suitability titanium and nickel alloys: Suitable
- Application Precision machining: Well suited
- Suitable for steel: Well suited
- Suitable for Inox/Steel
- Suitable for plastic/wood
- Product type
Grinding bit
- Shank Ø
3 mm
- Material
Steel
- (Ø)
3 mm
- Length
35 mm
- Use
Stainless steel
- Shape
spherical
- Content
1 pc(s)
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3442093 LUKAS-ERZETT A34033093126 Grinding bit Diameter 3 mm 1 pc(s)
Description
High-power tool for precise applications
No chrome coating
No dangerous shank breakage thanks to high-quality steel shaft
Stainless steel, zinc-nickel coating
Perfect dimensional stability: Fits optimally into the drive machine
Quality-tested: High safety through regular testing
The LUKAS CBN grinding pin is a high-performance tool for precise applications. Cubic boron nitride (CBN) is one of the hardest known materials and belongs to the class of super abrasive abrasive abrasive abrasive abrasive abrasive abrasive abrasive abrasive grinding agents. Due to their excellent hardness they are an indispensable part of modern precision work. CBN finds its use in machining hardened steels. Due to complex synthesis or natural scarcity, diamond or CBN grains are much more expensive than conventional abrasive materials, but they are clearly superior due to their enormous hardness and are essential for many applications. Due to the galvanic assignment of the grinding pin, the base body and the bond are made of metal and thus offer an excellent dissipation of the heat generated during the grinding process. In the case of tools with galvanic coating, abrasive grains are electrochemically nickel-coated and thus bound to the surface of a metallic base. Abrasive bodies can be manufactured in a variety of dimensions and different fabrics. This means that the individual tool is available for every application.
This text is machine translated.
No chrome coating
No dangerous shank breakage thanks to high-quality steel shaft
Stainless steel, zinc-nickel coating
Perfect dimensional stability: Fits optimally into the drive machine
Quality-tested: High safety through regular testing
The LUKAS CBN grinding pin is a high-performance tool for precise applications. Cubic boron nitride (CBN) is one of the hardest known materials and belongs to the class of super abrasive abrasive abrasive abrasive abrasive abrasive abrasive abrasive abrasive grinding agents. Due to their excellent hardness they are an indispensable part of modern precision work. CBN finds its use in machining hardened steels. Due to complex synthesis or natural scarcity, diamond or CBN grains are much more expensive than conventional abrasive materials, but they are clearly superior due to their enormous hardness and are essential for many applications. Due to the galvanic assignment of the grinding pin, the base body and the bond are made of metal and thus offer an excellent dissipation of the heat generated during the grinding process. In the case of tools with galvanic coating, abrasive grains are electrochemically nickel-coated and thus bound to the surface of a metallic base. Abrasive bodies can be manufactured in a variety of dimensions and different fabrics. This means that the individual tool is available for every application.
This text is machine translated.
System requirements
- Straight grinder
