LUKAS-ERZETT A344134002210163 DiamantLD3 S10 400x25,40x10 Diamond cutting disc Diameter 400 mm Bore diameter 25.4 mm Rei
EAN:
Part number:
Item no:
Number
Total (€ 138.65 / piece)
€ 138.65
plus VAT.
14-day return policy included
Highlights & Details
Diamond cutting wheel LD3 S10 for stone/concrete/asphalt Ø 400 mm petrol cutting cutter
- Can be used in reinforced concrete and building materials

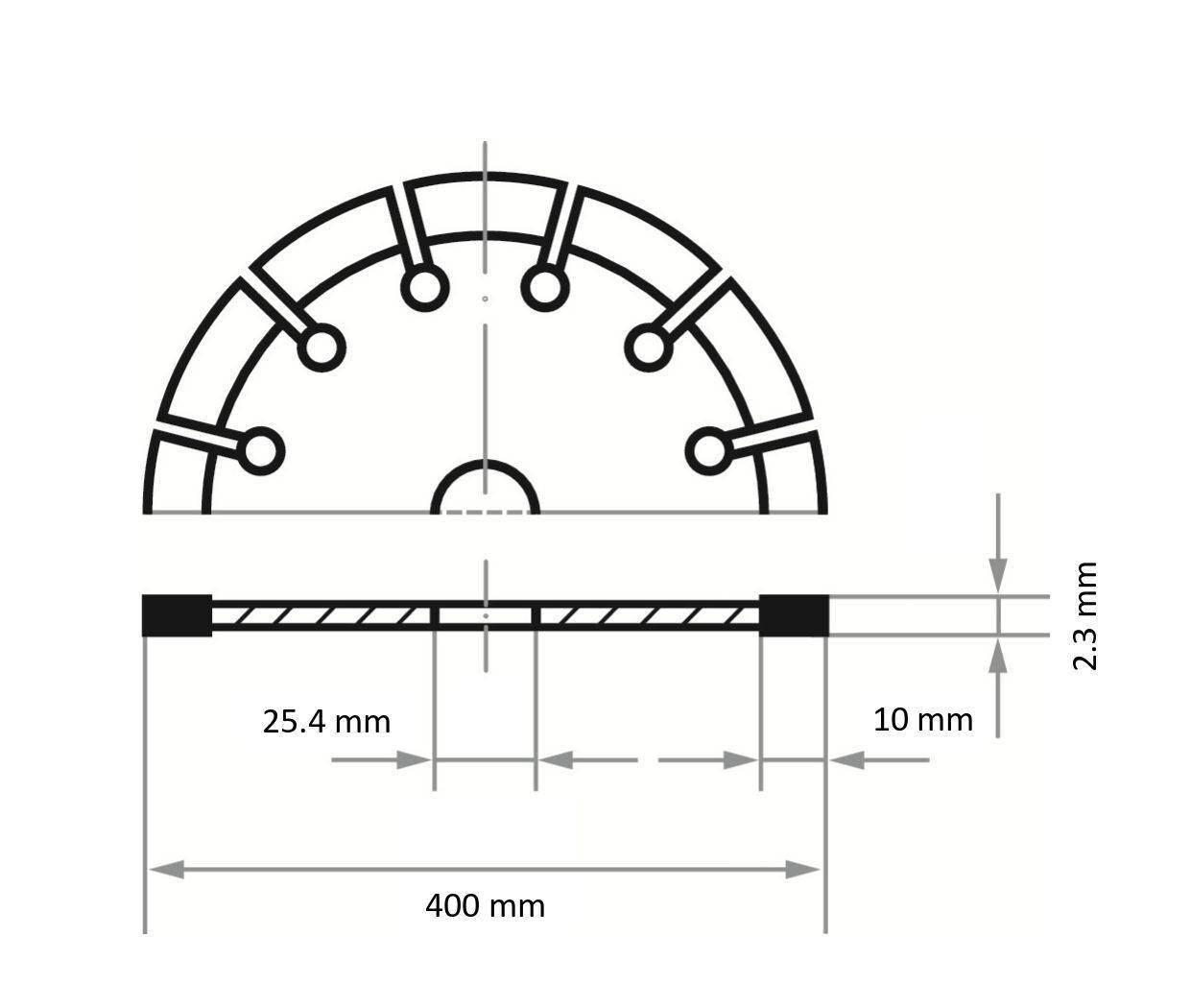

Technical specifications
- Tool holder: Drilling
- Tool holder dimensions 25.4 mm
- V max. (m/s): 100
- n max. (1/min): 4800
- Tool form: Flat
- Segment height 10 mm
- Segment/cut width 2.3 mm
- Stars: 2
- Suitability stone, brick, aerated concrete: Well suitable
- Suitability for concrete, reinforced concrete: Well suitable
- Suitability granite: Suitable
- Application separation: Well suited
- Suitable for stone/building material: Well suitable
- Product type
Diamond cutting disc
- Thickness
2.3 mm
- Material suitability
Reinforced concrete
- Bore Ø
25.4 mm
- Dim
(Ø) 400 mm
- (Ø)
400 mm
- Rotational speed (max.)
4800 U/min
- Features
Diamond
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3442839 LUKAS-ERZETT A344134002210163 DiamantLD3 S10 400x25,40x10 Diamond cutting disc Diameter 400 mm Bore diameter 25.4 mm Rei
Description
Can be used in reinforced concrete and building materials
Can be used universally on standard angle grinders thanks to 22.23 mm bore
The toughest materials work with diamond, the toughest known material
Less vibration, high security and long life thanks to optimized segment geometry
Universally applicable with high working speed by new segment alloys
Suitable for all machines, such as petrol separator with 1" tool holder
This diamond cutting disc for reinforced concrete and construction materials is coated with synthetic diamonds and is equipped with a new alloy. This allows universal separation of the toughest materials at high working speed. Thanks to optimized segment geometry it not only increases the life span but also reduces vibrations and improves safety. The sharp diamond cutting edges of the cutting wheel cut bricks, roofing tiles, masonry, aerated concrete, concrete products and other building materials without any problems and offer a very good price-performance ratio. This cutting wheel is therefore the right tool for quick work on construction with clean cutting edges without chipping. Thanks to the 22.23 mm drill hole, it can be used universally on standard angle grinders.
This text is machine translated.
Can be used universally on standard angle grinders thanks to 22.23 mm bore
The toughest materials work with diamond, the toughest known material
Less vibration, high security and long life thanks to optimized segment geometry
Universally applicable with high working speed by new segment alloys
Suitable for all machines, such as petrol separator with 1" tool holder
This diamond cutting disc for reinforced concrete and construction materials is coated with synthetic diamonds and is equipped with a new alloy. This allows universal separation of the toughest materials at high working speed. Thanks to optimized segment geometry it not only increases the life span but also reduces vibrations and improves safety. The sharp diamond cutting edges of the cutting wheel cut bricks, roofing tiles, masonry, aerated concrete, concrete products and other building materials without any problems and offer a very good price-performance ratio. This cutting wheel is therefore the right tool for quick work on construction with clean cutting edges without chipping. Thanks to the 22.23 mm drill hole, it can be used universally on standard angle grinders.
This text is machine translated.
System requirements
- Angle grinder
