LUKAS-ERZETT A344173502210213 DiamantLD7 S10 350x25.40x10 Diamond cutting disc Diameter 350 mm Bore diameter 25.4 mm Sto
EAN:
Part number:
Item no:
Number
Total (€ 126.04 / piece)
€ 126.04
plus VAT.
14-day return policy included
Highlights & Details
Diamond cutting disc LD7 S10 for Asphalt Ø 350 mm Petrol cutting cutter
- For the perfect separation of tarmac

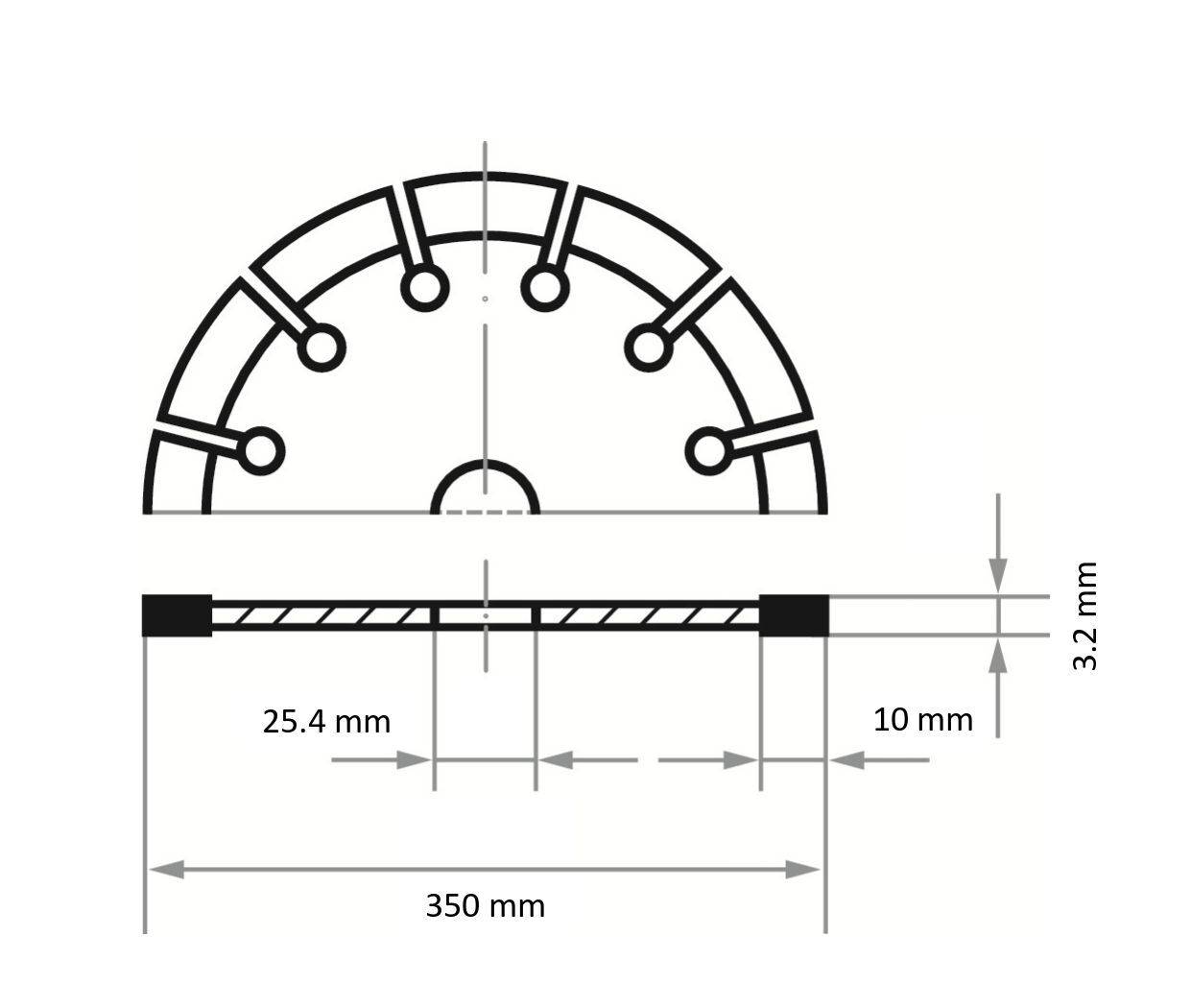

Technical specifications
- Tool holder: Drilling
- Tool holder dimensions 25.4 mm
- V max. (m/s): 100
- n max. (1/min): 4000
- Tool form: Flat
- Segment height 10 mm
- Segment/cut width 3.2 mm
- Stars: 2
- Suitability of fresh concrete: Suitable
- Application separation: Well suited
- Suitable for stone/building material: Well suitable
- Product type
Diamond cutting disc
- Thickness
3.2 mm
- Material suitability
Stone
- Bore Ø
25.4 mm
- Dim
(Ø) 350 mm
- (Ø)
350 mm
- Rotational speed (max.)
4000 U/min
- Features
Diamond
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3442845 LUKAS-ERZETT A344173502210213 DiamantLD7 S10 350x25.40x10 Diamond cutting disc Diameter 350 mm Bore diameter 25.4 mm Sto
Description
For the perfect separation of tarmac
The toughest materials work with diamond, the toughest known material
Less vibration, high security and long life thanks to optimized segment geometry
Universally applicable with high working speed by new segment alloys
Suitable for all machines, such as petrol separator with 1" tool holder
This diamond cutting disc for reinforced concrete and construction materials is coated with synthetic diamonds and is equipped with a new alloy. This allows universal separation of the toughest materials at high working speed. Thanks to optimized segment geometry it not only increases the life span but also reduces vibrations and improves safety. The sharp diamond cutting edges of the cutting wheel cut bricks, roofing tiles, masonry, aerated concrete, concrete products and other building materials without any problems and offer a very good price-performance ratio. This cutting wheel is therefore the right tool for quick work on construction with clean cutting edges without chipping. Thanks to the 22.23 mm drill hole, it can be used universally on standard angle grinders.
This text is machine translated.
The toughest materials work with diamond, the toughest known material
Less vibration, high security and long life thanks to optimized segment geometry
Universally applicable with high working speed by new segment alloys
Suitable for all machines, such as petrol separator with 1" tool holder
This diamond cutting disc for reinforced concrete and construction materials is coated with synthetic diamonds and is equipped with a new alloy. This allows universal separation of the toughest materials at high working speed. Thanks to optimized segment geometry it not only increases the life span but also reduces vibrations and improves safety. The sharp diamond cutting edges of the cutting wheel cut bricks, roofing tiles, masonry, aerated concrete, concrete products and other building materials without any problems and offer a very good price-performance ratio. This cutting wheel is therefore the right tool for quick work on construction with clean cutting edges without chipping. Thanks to the 22.23 mm drill hole, it can be used universally on standard angle grinders.
This text is machine translated.
System requirements
- Petrol separator
