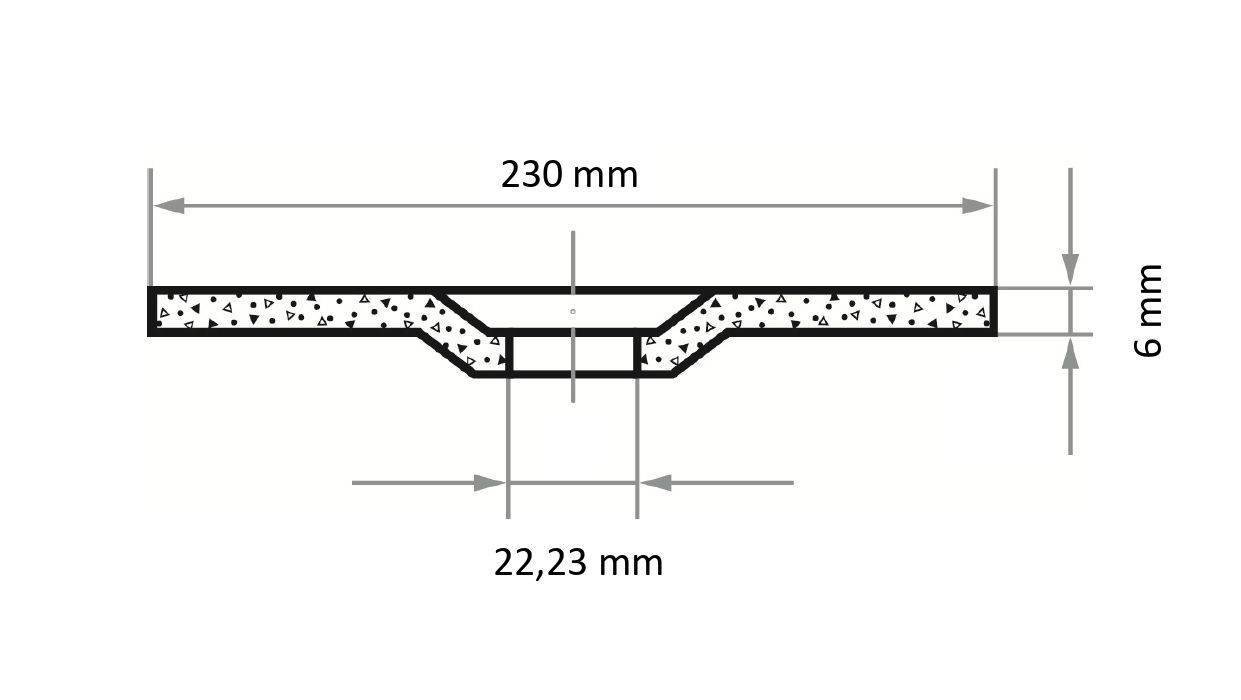

LUKAS-ERZETT AS001811V9802 T27 230x6,0x22,23 Grinding disc Diameter 230 mm Bore diameter 22.23 mm Steel, Stainless steel
EAN:
Part number:
Item no:
Number (Package size 10 pc(s))
Total (€ 7.73 / piece)
€ 77.30
plus VAT.
Highlights & Details
Roughing disk T27 for steel 230x6 mm offset | for angle grinders | A24/30T-BF
- Well suitable for scrubbing of different stainless steel and steel materials
Technical specifications
- Safety standard EN 12413
- Tool holder: Drilling
- Tool holder dimensions 22.23 mm
- V max. (m/s): 80
- n max. (1/min): 6600
- Tool form: Cranked
- Grain size - FEPA 24
- Style / Type: T27 (cranked roughing disks)
- Abrasive: Aluminium oxide
- Hardness: T
- Stars: 2
- Suitability Steel and cast steel RM up to 800 N/mm²: Well suitable
- Suitability of alloyed, coated steels RM up to 1200: Suitable
- Chamfer application: Well suited
- Application deburring: Well suited
- Application Grinding: Well suited
- Application of welding seam working: Well suited
- Suitable for steel: Well suited
- Product type
Grinding disc
- Content
10 pc(s)
- (Ø)
230 mm
- Bore Ø
22.23 mm
- Thickness
6.0 mm
- Rotational speed (max.)
6600 U/min
- Material suitability
Steel
Stainless steel
Structural steel
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3443113 LUKAS-ERZETT AS001811V9802 T27 230x6,0x22,23 Grinding disc Diameter 230 mm Bore diameter 22.23 mm Steel, Stainless steel
Description
Good for scrubbing of different stainless steel and steel materials Stable roughing disk thanks to the offset shape
Can be used universally on standard angle grinders thanks to 22.23 mm bore
Good value for money thanks to aluminum oxide
Quality-tested: High safety through regular testing
Especially stable tool thanks to cropped design
Tool with high side load stability for your safety when using free hand
The LUKA T27 grinding disk is ideally suited for roughing of a wide range of stainless steel and steel materials. The offset shape results in an especially high stability and the high side load stability enables a simple and safe use on hand-held angle grinders or other drive machines. The tool's hard and sharp abrasive grain ensures a long service life. The grinding disc enables a precise removal at high speed and is particularly low-odor and dust in use. With its good service life, the corundum used in this tool is located on construction steel, for roughing and coarse grinding. It allows you to work cost-effectively. LUKAS offers grinding discs for each metal with their matched properties. In the category "Roughing" WAS you will find everything that you need for rough machining of different materials.
This text is machine translated.
Can be used universally on standard angle grinders thanks to 22.23 mm bore
Good value for money thanks to aluminum oxide
Quality-tested: High safety through regular testing
Especially stable tool thanks to cropped design
Tool with high side load stability for your safety when using free hand
The LUKA T27 grinding disk is ideally suited for roughing of a wide range of stainless steel and steel materials. The offset shape results in an especially high stability and the high side load stability enables a simple and safe use on hand-held angle grinders or other drive machines. The tool's hard and sharp abrasive grain ensures a long service life. The grinding disc enables a precise removal at high speed and is particularly low-odor and dust in use. With its good service life, the corundum used in this tool is located on construction steel, for roughing and coarse grinding. It allows you to work cost-effectively. LUKAS offers grinding discs for each metal with their matched properties. In the category "Roughing" WAS you will find everything that you need for rough machining of different materials.
This text is machine translated.
System requirements
- Angle grinder
