LUKAS-ERZETT T41 230x2,5x22,23 A36N-BF AT001789V9802 Cutting disc set 230 mm 25 pc(s) Aluminium
EAN:
Part number:
Item no:
Number (Package size 25 pc(s))
Total (€ 4.71 / piece)
€ 117.64
plus VAT.
14-day return policy included
Highlights & Details

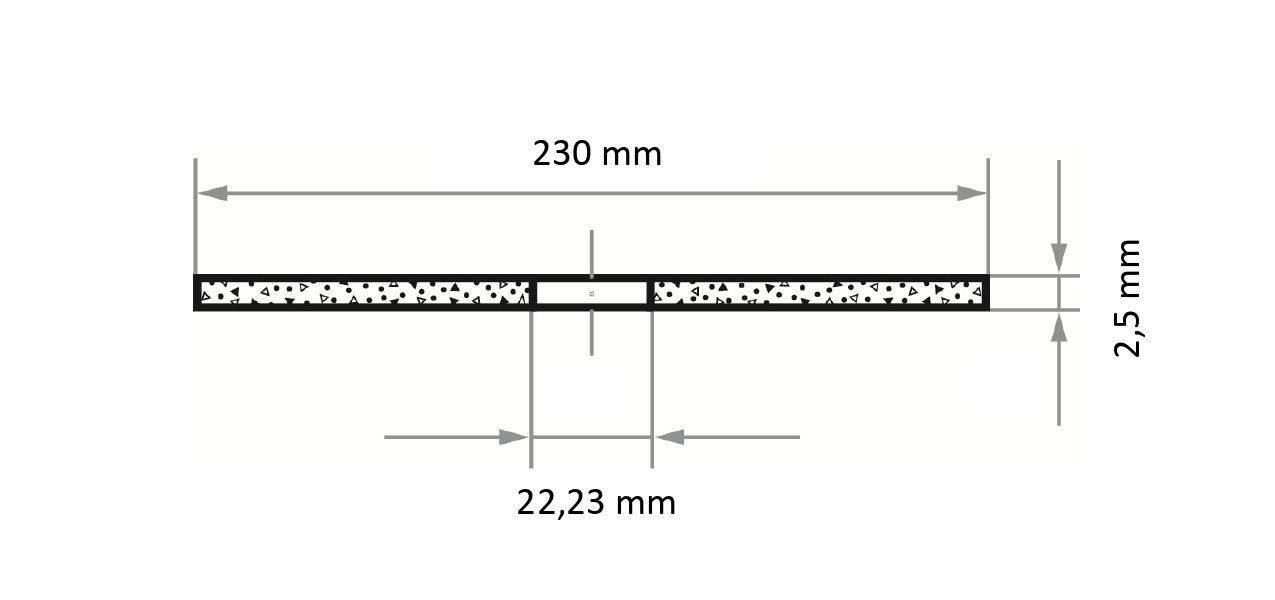

Cutting disc T41 for aluminum 230x2.5 mm straight | for angle grinder | A36N-BF
- Even separating the softest materials such as aluminum without interferences
Technical specifications
- Safety standard EN 12413
- Tool holder: Drilling
- Tool holder dimensions 22.23 mm
- V max. (m/s): 80
- n max. (1/min): 6600
- Tool form: Straight
- Grain size - FEPA 30
- Shape / type: T41 (straight cut-off wheels)
- Abrasive: Aluminium oxide
- Hardness: N
- Stars: 2
- Suitability Steel and cast steel RM up to 800 N/mm²: Well suitable
- Suitability of alloyed, coated steels RM up to 1200: Suitable
- Application of welding seam working: Well suited
- Application separation: Well suited
- Suitable for steel: Well suited
- Product type
Cutting disc set
- Features
Glass fibre reinforced
- Content
25 pc(s)
- (Ø)
230 mm
- Type
Straight
- Bore Ø
22.23 mm
- Thickness
2.5 mm
- Rotational speed (max.)
6600 U/min
- Material suitability
Aluminium
- Dim
(Ø) 230 mm
- Grit size
30
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3443160 LUKAS-ERZETT T41 230x2,5x22,23 A36N-BF AT001789V9802 Cutting disc set 230 mm 25 pc(s) Aluminium
Description
Even separating the softest materials such as aluminum without interferences
Can be used universally on standard angle grinders thanks to 22.23 mm bore
Quality-tested: High safety through regular testing
Tool with high side load stability for your safety when using free hand
No waste of grinding material thanks to straight shape: Grinding to the center of the tool
Good value for money thanks to aluminum oxide
This cutting wheel for machining aluminum and non-iron metals also separates hard to machine soft materials without interruption. The dreaded "addition" of the tool surface happens with these tools specially developed for aluminum and tested tools do not. The special combination of abrasive grains and bonding agent reliably prevents this undesirable effect. This cutting wheel gives precise cutting, with a high cutting speed and simultaneously low cutting temperature, at maximum service life thanks to its innovative binding technology. The 22.23 mm drill hole means it can be used anywhere on conventional angle grinders, and it is energetically optimized so that it can also be used on the most powerful angle grinders. Strong fiber optic fabric and regular tests ensure high safety and side stability. These cutting disks can be available in flat or offset design. The friction disk has low odor and dust, enables ergonomic working and maximum service life with only low application of force. Thanks to the highest-quality raw materials it offers a maximum storage time with high quality stability. This cutting disc is produced in an environmentally friendly way using the latest production processes and optimized recipes.
This text is machine translated.
Can be used universally on standard angle grinders thanks to 22.23 mm bore
Quality-tested: High safety through regular testing
Tool with high side load stability for your safety when using free hand
No waste of grinding material thanks to straight shape: Grinding to the center of the tool
Good value for money thanks to aluminum oxide
This cutting wheel for machining aluminum and non-iron metals also separates hard to machine soft materials without interruption. The dreaded "addition" of the tool surface happens with these tools specially developed for aluminum and tested tools do not. The special combination of abrasive grains and bonding agent reliably prevents this undesirable effect. This cutting wheel gives precise cutting, with a high cutting speed and simultaneously low cutting temperature, at maximum service life thanks to its innovative binding technology. The 22.23 mm drill hole means it can be used anywhere on conventional angle grinders, and it is energetically optimized so that it can also be used on the most powerful angle grinders. Strong fiber optic fabric and regular tests ensure high safety and side stability. These cutting disks can be available in flat or offset design. The friction disk has low odor and dust, enables ergonomic working and maximum service life with only low application of force. Thanks to the highest-quality raw materials it offers a maximum storage time with high quality stability. This cutting disc is produced in an environmentally friendly way using the latest production processes and optimized recipes.
This text is machine translated.
System requirements
- Angle grinder
