Lumberg 0364 V109 VP18 Crimp contact Total number of pins: 1 1 pc(s)
EAN:
Part number:
Item no:
Product type
Crimp contact
Total no. of pins
1
Connection
Crimp
Socket
Content
1 pc(s)
Nominal current - rounded value
5 A
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 1.25
10
8% = € 0.10
€ 1.15
25
11% = € 0.14
€ 1.11
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 1.25 / piece)
€ 1.25
plus VAT.
14-day return policy included
Highlights & Details

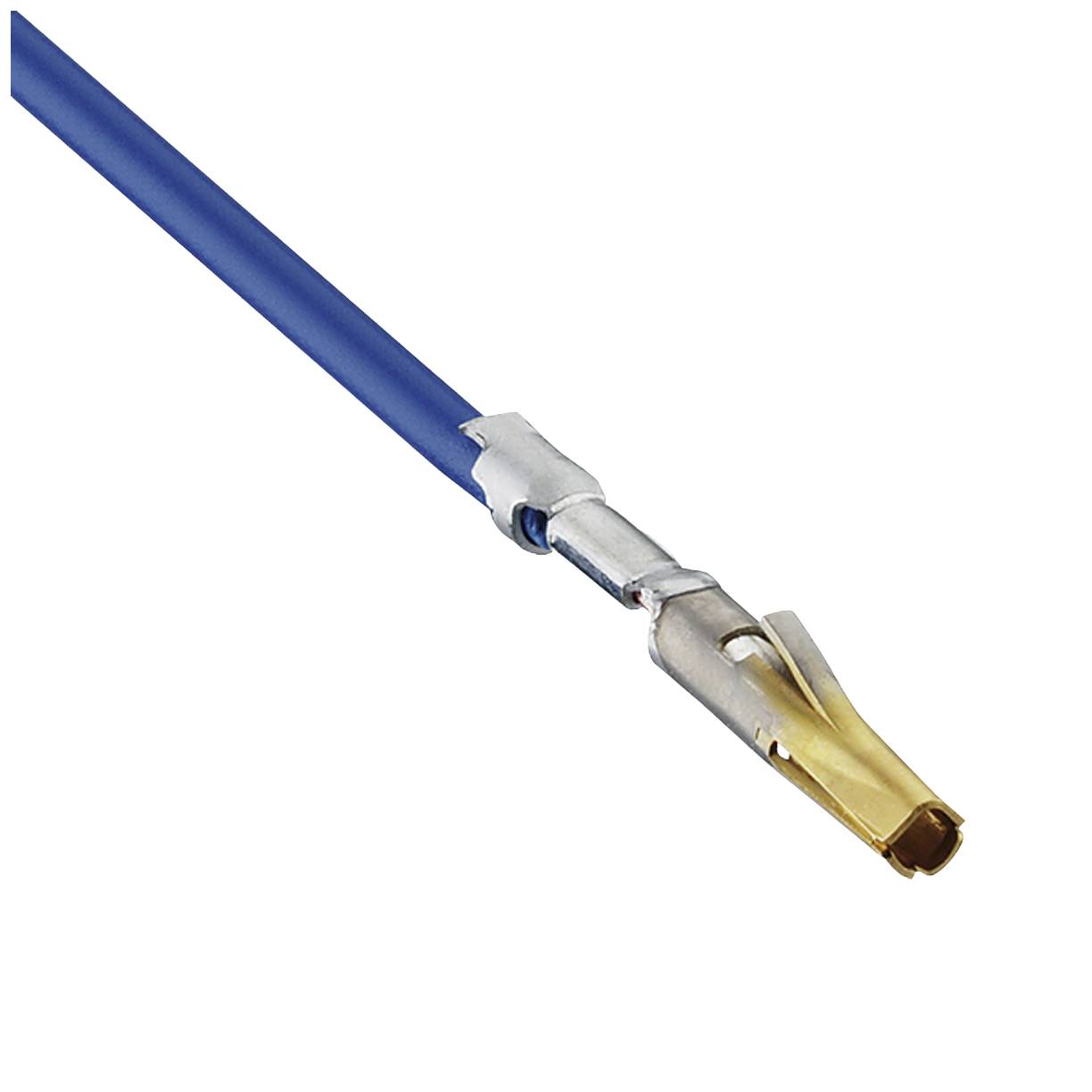

Crimp contact, gold-plated contact socket
Our service for you
Technical specifications
- Temperature range: -40 °C/+85 °C
- Contact socket: CuSn, gold plated - 0364 V109
- Mating cycles: 500
- Plug-in force/contact:≤ 3.0 N
- Pull force/contact:≥ 1.2 N
- Cross-section:0.25–0.75 mm² (AWG 23–18)
- Insulation diameter≤ 1.8 mm
- Continuous resistance≤ 5 mΩ
- RATED CURRENT:5 A (TU 40 °C)
- Rated voltage: 250/320 V AC
- Type
0364 V109 VP18
- Product type
Crimp contact
- Total no. of pins
1
- Connection
Crimp
Socket
- Content
1 pc(s)
- Max. temperature
85 °C
- Nominal current
5 A
- Min. temperature
-40 °C
- Nominal current - rounded value
5 A
- Nominal voltage
320 V AC
- Contact material
CuSn, gold plated
18
23
- No. of contact sizes
1
- Manufacturer part #
0364 V109 VP18
- Number of pins
1
- max. cross section
0.75 mm²
- Min. cross section
0.25 mm²
- Cross-section range
0.25 - 0.75 mm²
- RoHS-compliant
Yes
Documents & Downloads
Datasheet
Datasheet 3208860 Lumberg 0364 V109 VP18 Crimp contact Total number of pins: 1 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3208860 Lumberg 0364 V109 VP18 Crimp contact Total number of pins: 1 1 pc(s)
Description
Crimp contact, gold-plated contact socket
