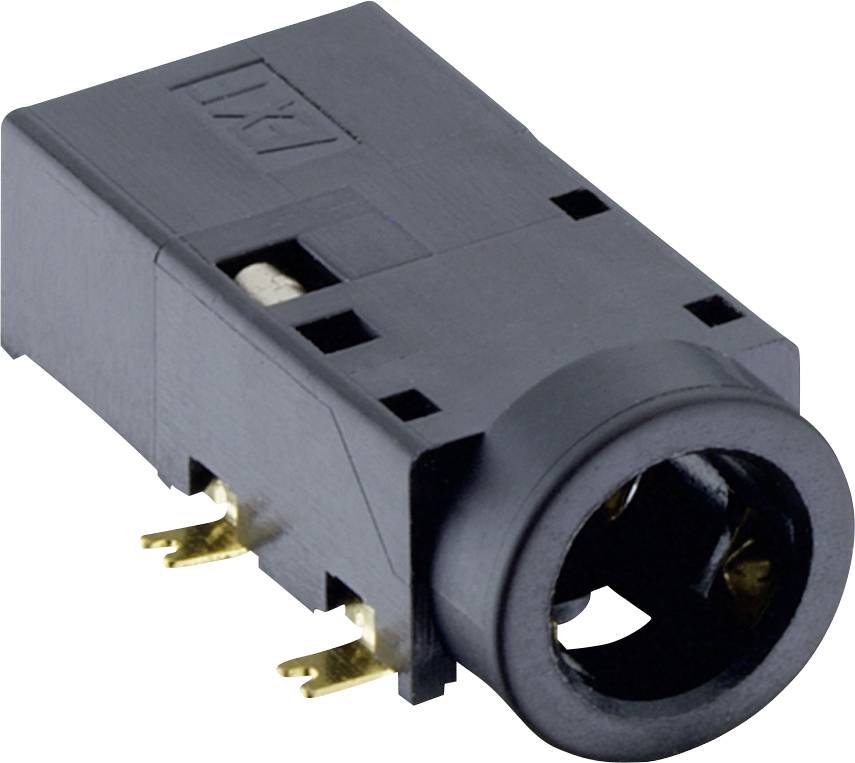

Lumberg 126791 3.5 mm audio jack Connector, mount Number of pins: 4 1 pc(s)
Part number:
Item no:
Product type
3.5 mm audio jack
Connector type
Connector, mount
Connection
SMT
Number of pins
4
Manufacturer part #
126791
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 5.45
5
6% = € 0.32
€ 5.13
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 5.45 / piece)
€ 5.45
plus VAT.
14-day return policy included
Highlights & Details
Jack Connectors
- 3.5 mm audio jack
- Connector, mount
Technical specifications
- Plug-in force ≤ 30 N
- Pulling force 5–25 N
- Dragging force tip: Measured with a gauge connector
- Continuous resistance ≤ 30 mΩ
- Contact carrier PA GF, V-0 according to UL94
- Contact spring: Copper alloy, selectively gold plated
- Rated surge voltage 500 V/60 s.
- Product type
3.5 mm audio jack
- Connector type
Connector, mount
- Connection
SMT
- Number of pins
4
- Manufacturer part #
126791
- Type
1503 15 VP3
- Mating cycles
5000
- Content
1 pc(s)
- Nominal voltage
12 V DC
- Nominal current
1 A
- Temperature range
-20 °C - +60 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3805146 Lumberg 126791 3.5 mm audio jack Connector, mount Number of pins: 4 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3805146 Lumberg 126791 3.5 mm audio jack Connector, mount Number of pins: 4 1 pc(s)
Description
Jack installation clutch according to JEITA RC-5325A JC35J4A, 3.5 mm, 4-pin/stereo, angled design, for PCBs, Surface-Mount Technology (SMT)
