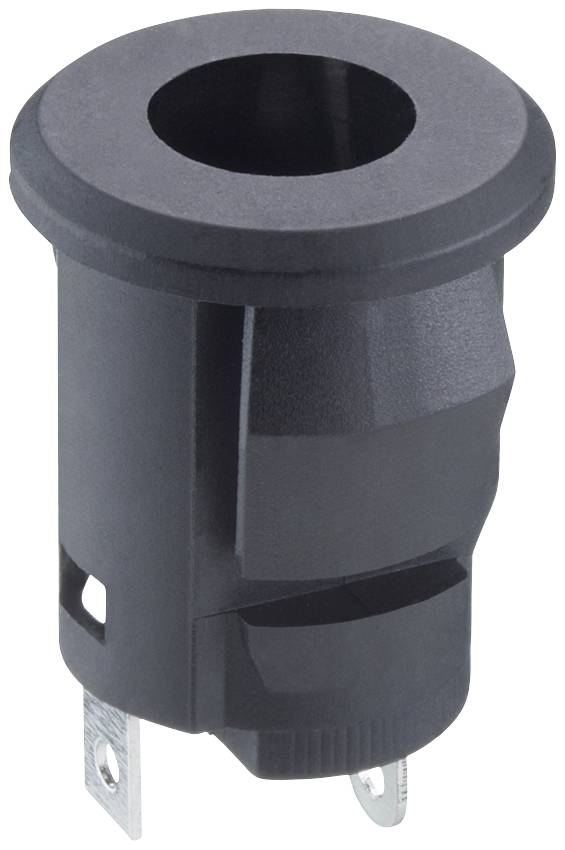

Lumberg 1610 07 Low power connector 1 pc(s)
EAN:
Part number:
Item no:
Product type
Low power connector
Nominal current - rounded value
2 A
Connection
Solder pad
Nominal voltage
30 V
Content
1 pc(s)
Datasheet (PDF)
Number
Total (€ 1.25 / piece)
€ 1.25
plus VAT.
14-day return policy included
Technical specifications
- Pins: 2
- Temperature range --25°C/+85°C
- Contact carrier PA, V-0 to UL94
- Contact spring: Tin-plated CuZn
- Mating cycles 5000
- Insertion force 4–30 N
- Pulling force 4–30 N
- Constant resistance 30 mΩ
- Rated current 2 A
- Rated voltage: 30 V
- Rated surge voltage 500 V/60 s.
- Contact pin: CuZn/CuSn, tin plated
- Diameter opening 5.8 mm
- Diameter center pin 2.5 mm
- Product type
Low power connector
- Nominal current
2 A
- Nominal current - rounded value
2 A
- Connection
Solder pad
- Nominal voltage
30 V
- Content
1 pc(s)
- Manufacturer part #
1610 07
- Type
1610 07
- Pins
2
- RoHS-compliant
Yes
- Contact material
CuZn/CuSn, tin-plated
- Max. temperature
+85 °C
- Min. temperature
-25 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3208112 Lumberg 1610 07 Low power connector 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3208112 Lumberg 1610 07 Low power connector 1 pc(s)
Description
Power supply chassis socket, straight design, with solder pads, for snap-in front mounting
