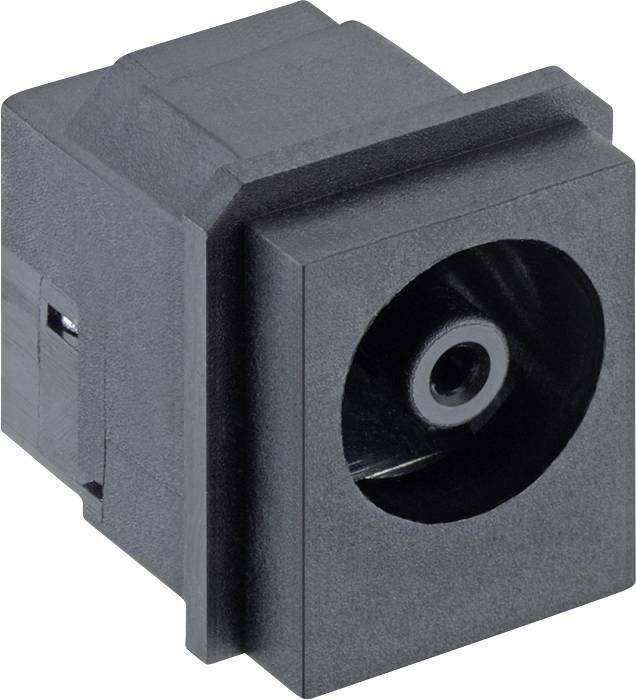

Lumberg 1613 31 Low power connector Connector, mount 1 pc(s)
Part number:
Item no:
Product type
Low power connector
Connector type
Connector, mount
Nominal current - rounded value
3 A
Nominal voltage
24 V
Content
1 pc(s)
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 1.67
10
8% = € 0.13
€ 1.54
25
11% = € 0.18
€ 1.49
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 1.67 / piece)
€ 1.67
plus VAT.
14-day return policy included
Technical specifications
- Insertion force 3–30 N
- Pulling force 3–30 N
- Continuous resistance ≤ 30 mΩ
- Mating cycles 5000
- Contact carrier PA, V-0 to UL94
- Rated surge voltage 500 V/60 s.
- Contact: CuSn/CuZn, silver plated
- Insulation diameter 3.0 mm
- Diameter center hole 1.05 mm
- Product type
Low power connector
- Nominal current
3 A
- Connector type
Connector, mount
- Nominal current - rounded value
3 A
- Nominal voltage
24 V
- Content
1 pc(s)
- Manufacturer part #
164856
- Type
1613 31
- Pins
2
- Temperature range
-25 °C - +85 °C
- Hole Ø
7.0 mm
Documents & Downloads
Datasheet
Datasheet 3805160 Lumberg 1613 31 Low power connector Connector, mount 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3805160 Lumberg 1613 31 Low power connector Connector, mount 1 pc(s)
Description
Network equipment - Installation clutch
For 6.5 mm x 4.1 mm x 1.0 mm plug, according to JEIAJ RC-5322 JCBJ11, angled design, with opener, for PCBs
This text is machine translated.
For 6.5 mm x 4.1 mm x 1.0 mm plug, according to JEIAJ RC-5322 JCBJ11, angled design, with opener, for PCBs
This text is machine translated.
