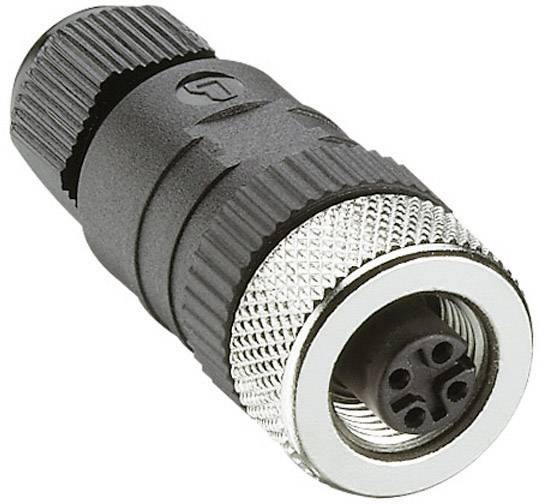

Lumberg Automation 11221 Sensor/actuator connector M12 Connector, straight No. of pins (RJ): 5 10 pc(s)
EAN:
Part number:
Item no:
Product type
Sensor/actuator connector
Connector type
Connector, straight
Connector standard
Sensor connector
Connection side A
M12 socket, straight
Connection side B
Customisable
Datasheet (PDF)
Total (€ 82.34 / piece)
€ 82.34
plus VAT.
14-day return policy included
Technical specifications
- Type
RKC 5/9
- Product type
Sensor/actuator connector
- Connector type
Connector, straight
- Connector standard
Sensor connector
- Connection side A
M12 socket, straight
- Connection side B
Customisable
- No. of pins
5
- Nominal voltage
63 V
- Nominal current
4 A
- Nominal current - rounded value
4 A
- Connector cross-section (max.)
0.75 mm²
- Connection
Screws
- Factory colour
Black
- Thread type connection side
M12
- Thread type (wiring and installation)
PG9
- Contact material
CuZn
- Contact surface
Gold plated
IP67
- Min. temperature
-25 °C
- Max. temperature
+90 °C
- Seal type
Screw-on
- Manufacturer part #
11221
- Industrial packaging
Yes
- Content
10 pc(s)
- Type
Connector
- Insulation resistance
> 109 Ω
- Nominal current (details)
4 A
- Thread type
M12
- Contamination level
3
- Connector cross section
0.75 mm²
- Connection
Screws
- Cable diameter (details)
4 mm
- Temperature range
-25 - +90 °C
- Case material
PBT
Documents & Downloads
Datasheet
Datasheet 1718713 Lumberg Automation 11221 Sensor/actuator connector M12 Connector, straight No. of pins (RJ): 5 10 pc(s)
Description
Connection via screw terminals.
