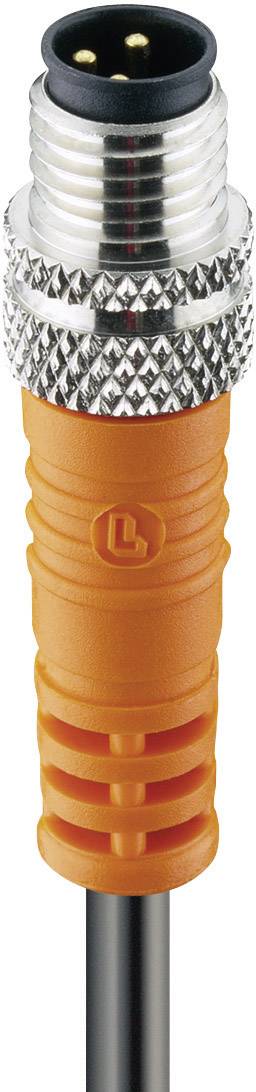

Lumberg Automation 11676-10 Sensor/actuator connector (pre-fab) M8 Plug, straight 5.00 m No. of pins (RJ): 3 10 pc(s)
EAN:
Part number:
Item no:
Product type
Sensor/actuator connector (pre-fab)
Connector type
Plug, straight
Connector standard
Sensor connector
Connection side A
M8 plug, straight
Connection side B
Cable, open end
Datasheet (PDF)
Number (Package size 10 pc(s))
Total (€ 12.60 / piece)
€ 126.04
plus VAT.
Technical specifications
- Type
RSMV 3-06/5 M
- Product type
Sensor/actuator connector (pre-fab)
- Connector type
Plug, straight
- Connector standard
Sensor connector
- Connection side A
M8 plug, straight
- Connection side B
Cable, open end
- No. of pins
3
- Cable length
5.00 m
- Jacket material
PVC
- Nominal voltage
63 V
- Nominal current
4 A
- Nominal current - rounded value
4 A
- Cross-section (sensor/actuator wiring)
0.34 mm²
- Connection
Open end cable
- Thread type connection side
M8
- Cable colour
Orange
- Contact material
CuZn
IP67
- Features
Shake-proof
- Min. temperature
-40 °C
- Max. temperature
+90 °C
- Seal type
Screw-on
- Manufacturer part #
11676-10
- Industrial packaging
Yes
- Content
10 pc(s)
- Type
M8-female connector, direct / free end
- Nominal current (details)
4 A
- Contamination level
3
- Connection
Screw lock, automatic lock
- Cable diameter (details)
5 mm
- Temperature range
-40 - +90 °C
Documents & Downloads
Datasheet
Datasheet 1718719 Lumberg Automation 11676-10 Sensor/actuator connector (pre-fab) M8 Plug, straight 5.00 m No. of pins (RJ): 3 10 pc(s)
Description
Cord with self secure screw lock and moulded cable
