Lumel AC/DC - 400 A mit Hinterleuchtung Clamp meter Digital Screen back-lighting CAT IV 600 V, CAT III 1000 V Display (c
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 264.71 / piece)
€ 264.71
plus VAT.
Only 2 Piece(s) available
Highlights & Details
AC/DC - 400 A mit Hinterleuchtung
- CAT IV 600 V, CAT III 1000 V
Technical specifications
- Rotating pliers head
- LPF (low-pass filter)
- Inrush current measurement.
- Measurement of effective/reactive/current power
- Harmonics measurement (up to 49.)
- Contact-free voltage detection
- Automatic shut-off after 10 minutes (can be deactivated)
- Crest factor measurement
- Phase angle measurement
- Voltage reading range DC (min.)
0.1 V
- Product type
Clamp meter
- Voltage DC reading range (max.)
999.9 V
- V AC reading range (min.)
0.1 V
- V AC reading range (max.)
999.9 V
- Amperage reading range DC (min.)
0.01 A
- A DC reading range (max.)
400 A
- A AC reading range (min.)
0.5 A
- Amperage reading range AC (max.)
400 A
- Basic accuracy
0.5 %
- Measurement type (details)
True RMS
- Frequency range
40-400 Hz
- Power supply (details)
9 V
- Height
70 mm
- Width
90 mm
- Length
270 mm
- Weight
500 g
Manufacturer's standards (no certificate)
- Reading category
CAT IV 600 V
CAT III 1000 V
- Voltage metering
AC
DC
AC/DC
- Current reading
AC
DC
AC/DC
- Type
AC/DC - 400 A mit Hinterleuchtung
- Display
Digital
- Display (counts)
9999
- Dim
(L x W x H) 270 x 90 x 70 mm
- Features
Screen back-lighting
IP50
IP20
Documents & Downloads
Datasheet
Datasheet 3741945 Lumel AC/DC - 400 A mit Hinterleuchtung Clamp meter Digital Screen back-lighting CAT IV 600 V, CAT III 1000 V Display (c
User & Safety Instructions
User & Safety Instructions 3741945 Lumel AC/DC - 400 A mit Hinterleuchtung Clamp meter Digital Screen back-lighting CAT IV 600 V, CAT III 1000 V Display (c
Description

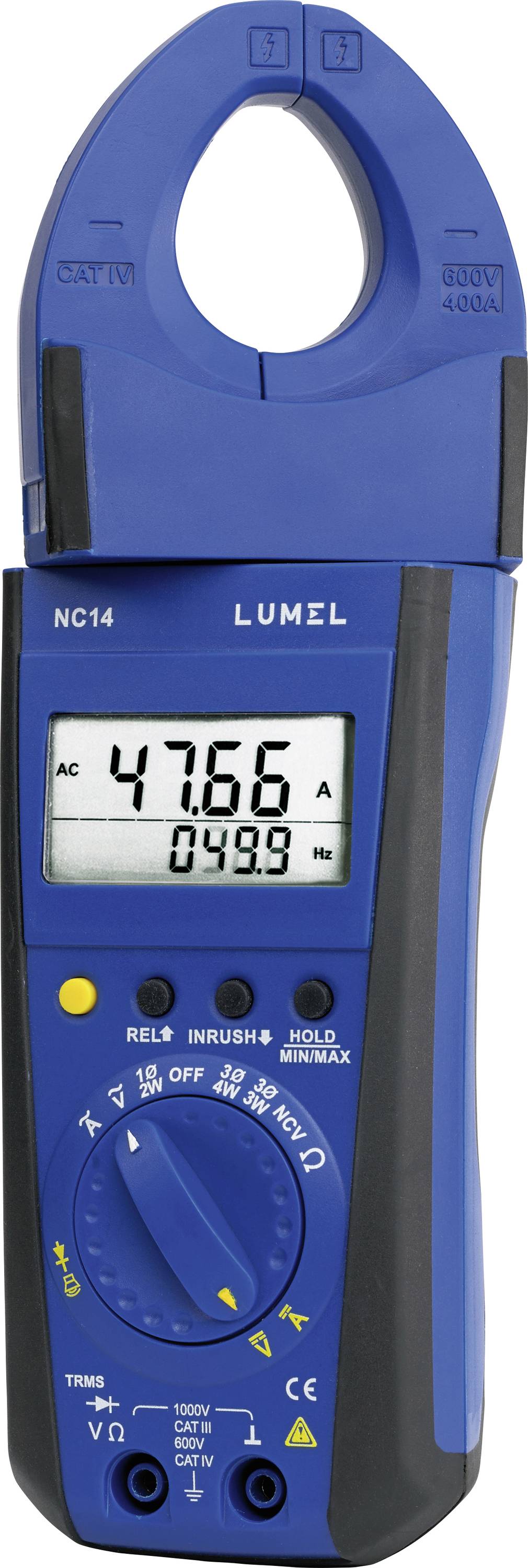

Precision in every position – discover the NC14 Power clamp-on meter.
The Lumel NC14 is more than just a current clamp; it is a comprehensive tool for the modern electrical installation and mains analysis. Whether in industry, in the maintenance of photovoltaic systems or in complex three-phase networks – the NC14 supplies you with all the relevant parameters at a glance.
Why choose the NC14:
Innovative ergonomy: Thanks to the rotating pliers jaws the setting on narrow busbars are a thing of the past. The ergonomic trigger enables a comfortable use with several fingers and reduces fatigue symptoms in the hard working day.
Safety without compromise: Work relaxed. Thanks to the special design, your hand always remains in a safe distance from the conductor. With the contact-less voltage detection you can check the cables quickly and safely before you touch them.
True values, even in case of interference: Thanks to TRMS measurement and the integrated low-pass filter (LPF), the NC14 delivers absolutely reliable results even in case of distorted waveforms as are common in modern drives (VFD).
Everything in sight: The high-contrast Dual display simultaneously shows current and voltage or power values. With the analysis of up to 49 harmonics you can identify network disturbances before they become a problem.
Robust, safe and precise - the Lumel NC14 is your reliable partner for every electrical challenge.
This text is machine translated.
The Lumel NC14 is more than just a current clamp; it is a comprehensive tool for the modern electrical installation and mains analysis. Whether in industry, in the maintenance of photovoltaic systems or in complex three-phase networks – the NC14 supplies you with all the relevant parameters at a glance.
Why choose the NC14:
Innovative ergonomy: Thanks to the rotating pliers jaws the setting on narrow busbars are a thing of the past. The ergonomic trigger enables a comfortable use with several fingers and reduces fatigue symptoms in the hard working day.
Safety without compromise: Work relaxed. Thanks to the special design, your hand always remains in a safe distance from the conductor. With the contact-less voltage detection you can check the cables quickly and safely before you touch them.
True values, even in case of interference: Thanks to TRMS measurement and the integrated low-pass filter (LPF), the NC14 delivers absolutely reliable results even in case of distorted waveforms as are common in modern drives (VFD).
Everything in sight: The high-contrast Dual display simultaneously shows current and voltage or power values. With the analysis of up to 49 harmonics you can identify network disturbances before they become a problem.
Robust, safe and precise - the Lumel NC14 is your reliable partner for every electrical challenge.
This text is machine translated.
Features
- 9 V battery pack
Scope of delivery
- Clamp meter
- Test tips set
- User manual/guarantee card
- Protective case
- Factory test certificate
- 9 V battery pack
- Two alligator clips
