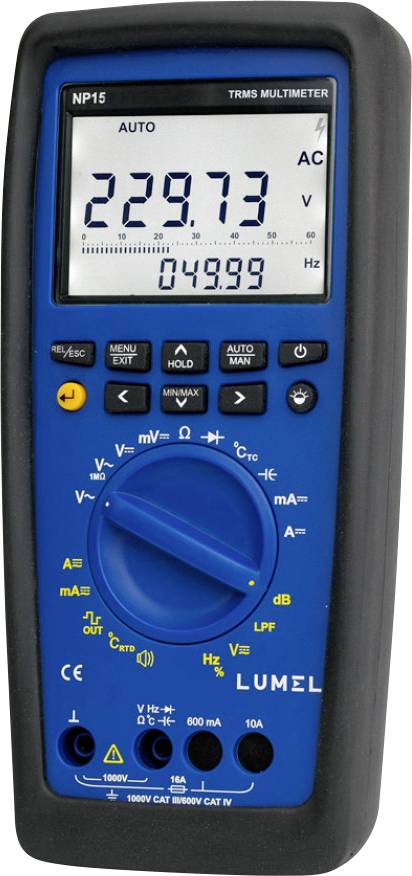

Lumel Digital-Multimeter mit Datenlogger NP15 200E1 Handheld multimeter Digital Data logger CAT II 600 V, CAT III 1000 V
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 315.13 / piece)
€ 315.13
plus VAT.
Only 2 Piece(s) available
Highlights & Details
- Intelligent data analysis: Integrated data logger for up to 32,000 measured values with real-time stamp and view function directly on the device
- Highest precision: High bandwidth true RMS measurement (up to 100 kHz at voltage) and accurate detection of crest factors up to 10
- Specialist for drives: Switchable 1 kHz low pass filter (LPF) for precise analysis of frequency converters and noisy signals
- Versatile current measurement: Compatible with various clamp sensors for measurements up to 6000 A without open circuit
- Innovative safety concept: The only 16 A fuse for all current ranges prevents operating errors; display of hazardous contact voltages (more than 35 V AC / 50 V DC)
- Automation & PC connectivity: Plug-and-play USB interface and intuitive software for graphical analysis and reporting
- Extended measurement functions: Including temperature measurement (J, K, Pt100, Pt1000), conductance measurement and adjustable square-wave output
- Go/NoGo function: Acoustic signal when threshold values are exceeded or fallen below freely programmable limits
Technical specifications
- Data logger (32,000 readings)
- Go/NoGo function
- Low pass filter (1 kHz)
- Crest factor measurement (CF 1-10)
- Square wave output
- Voltage reading range DC (min.)
100 µV
- Product type
Handheld multimeter
- Voltage DC reading range (max.)
1000 V
- V AC reading range (min.)
100 µV
- V AC reading range (max.)
1000 V
- Amperage reading range DC (min.)
10 nA
- A DC reading range (max.)
600 mA
- A AC reading range (min.)
10 nA
- Amperage reading range AC (max.)
600 mA
- Reading range - resistance
10 mΩ to 40 MΩ
- Reading range - capacity
10 pF to 1000 µF
- Frequency reading range
6 Hz to 1 MHz
- DC resistance
9 MΩ
- AC resistance
9 MΩ
- Basic accuracy
0.5 %
- Measurement type (details)
True RMS
- Frequency range
10 kHz
- Interfaces
USB
- Power supply (details)
3 V
- Height
54 mm
- Width
91 mm
- Length
200 mm
- Weight
500 g
Manufacturer's standards (with certificate)
- Reading category
CAT II 600 V
CAT III 1000 V
- Voltage metering
DC
AC
AC/DC
- Current reading
AC
DC
AC/DC
- Type
Digital-Multimeter mit Datenlogger NP15 200E1
- Display
Digital
- Display (counts)
60000
- Dim
(L x W x H) 200 x 91 x 54 mm
- Temperature reading range (max.)
1372 °C
- Temperature reading range (min.)
-210 °C
- Features
Data logger
IP50
IP20
Documents & Downloads
Datasheet
Datasheet 3741950 Lumel Digital-Multimeter mit Datenlogger NP15 200E1 Handheld multimeter Digital Data logger CAT II 600 V, CAT III 1000 V
User & Safety Instructions
User & Safety Instructions 3741950 Lumel Digital-Multimeter mit Datenlogger NP15 200E1 Handheld multimeter Digital Data logger CAT II 600 V, CAT III 1000 V
Description
Lumel NP15: Precision meets unlimited versatility Set new standards in your measurement technology! The NP15 is more than just a multimeter - it is a highly professional tool for test automation, error diagnostics and long-term monitoring. With over 30 different measuring functions and extreme robustness, it is the ideal companion for engineers and technicians, who do not want to make any compromises regarding safety and reliability.Whether complex frequency converter analyzes with the help of 1 kHz low-pass filter or precise true RMS measurements with distorted waveforms, the NP15 gives you exact results, where other devices reach their limits. The integrated data logger function lets you record up to 32,000 measurements and analyze them directly on the device or comfortably via USB on the PC.
This text is machine translated.
This text is machine translated.
Features
- CAT III - 1000 V / CAT II - 600 V with TRMS and background lighting
Scope of delivery
- Digital multimeter
- Cables
- Protective case
- 2 x 1.5 V LR6 (AA) alkaline batteries
- User manual and test certificate
