Lumel Digital-Multimeter mit Datenlogger NP15 300E1 Handheld multimeter Digital Data logger, Graphics display, incl. bag
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 340.34 / piece)
€ 340.34
plus VAT.
Only 1 Piece(s) available
Highlights & Details

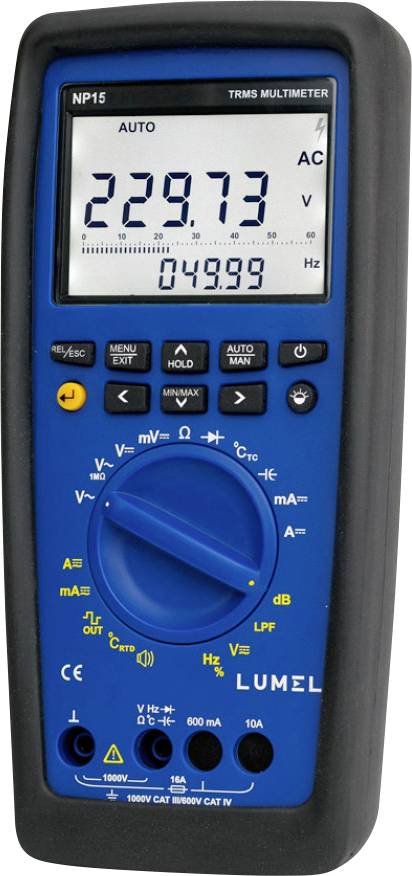

Digital-Multimeter mit Datenlogger NP15 300E1
- CAT II 600 V, CAT I 1000 V
Technical specifications
- Data logger (up to 32,000 measured values)
- Go/NoGo function
- Low pass filter (1kHz)
- Square wave output
- Voltage reading range DC (min.)
1 µV
- Product type
Handheld multimeter
- Voltage DC reading range (max.)
1000 V
- V AC reading range (min.)
1 µV
- V AC reading range (max.)
1000 V
- Amperage reading range DC (min.)
6 A
- A DC reading range (max.)
20 A
- A AC reading range (min.)
100 µA
- Amperage reading range AC (max.)
20 A
- Reading range - resistance
10 mΩ to 40 MΩ
- Reading range - capacity
10 nF to 1000 µF
- Frequency reading range
6 Hz to 1 MHz
- DC resistance
9 MΩ
- AC resistance
9 MΩ
- Basic accuracy
0.5 %
- Measurement type (details)
True RMS
- Frequency range
10 kHz
- Interfaces
USB
- Power supply (details)
2 x 1.5 V
- Height
54 mm
- Width
91 mm
- Length
200 mm
- Weight
500 g
Manufacturer's standards (with certificate)
- Reading category
CAT II 600 V
CAT I 1000 V
- Voltage metering
AC
DC
AC/DC
- Current reading
AC
DC
AC/DC
- Type
Digital-Multimeter mit Datenlogger NP15 300E1
- Display
Digital
- Display (counts)
60000
- Dim
(L x W x H) 200 x 91 x 54 mm
- Temperature reading range (max.)
1372 °C
- Temperature reading range (min.)
-210 °C
- Features
Data logger
Graphics display
incl. bag
- Interfaces
USB
IP50
IP20
Documents & Downloads
Datasheet
Datasheet 3741951 Lumel Digital-Multimeter mit Datenlogger NP15 300E1 Handheld multimeter Digital Data logger, Graphics display, incl. bag
User & Safety Instructions
User & Safety Instructions 3741951 Lumel Digital-Multimeter mit Datenlogger NP15 300E1 Handheld multimeter Digital Data logger, Graphics display, incl. bag
Description
Lumel NP15-300E1: Professional precision meets intelligent data analysis
Optimise your troubleshooting and system monitoring with the NP15-300E1 – your reliable companion for professional use. This True RMS digital multimeter combines highest security with modern functionality. Thanks to the integrated data logger, which can capture up to 32,000 measurements with real-time stamp, you can also keep an eye on long-term developments.
Whether in control cabinets or during the maintenance of complex systems, the NP15-300E1 impresses by its robustness, a high display resolution of 60,000 counts and over 30 different measuring functions. The VAC 1MΩ function eliminates erroneous measurements through "ghost voltages" and makes the error search in branched circuits so easy as never before.
Get a tool that thinks along – safe, accurate and future-oriented.
This text is machine translated.
Optimise your troubleshooting and system monitoring with the NP15-300E1 – your reliable companion for professional use. This True RMS digital multimeter combines highest security with modern functionality. Thanks to the integrated data logger, which can capture up to 32,000 measurements with real-time stamp, you can also keep an eye on long-term developments.
Whether in control cabinets or during the maintenance of complex systems, the NP15-300E1 impresses by its robustness, a high display resolution of 60,000 counts and over 30 different measuring functions. The VAC 1MΩ function eliminates erroneous measurements through "ghost voltages" and makes the error search in branched circuits so easy as never before.
Get a tool that thinks along – safe, accurate and future-oriented.
This text is machine translated.
Features
- CAT I - 1000 V/CAT II - 600 V with TRMS and background lighting
Scope of delivery
- Digital multimeter
- Cables
- Protective case
- 2 x 1.5V AA batteries (alkaline-manganese)
- User manual and test certificate
