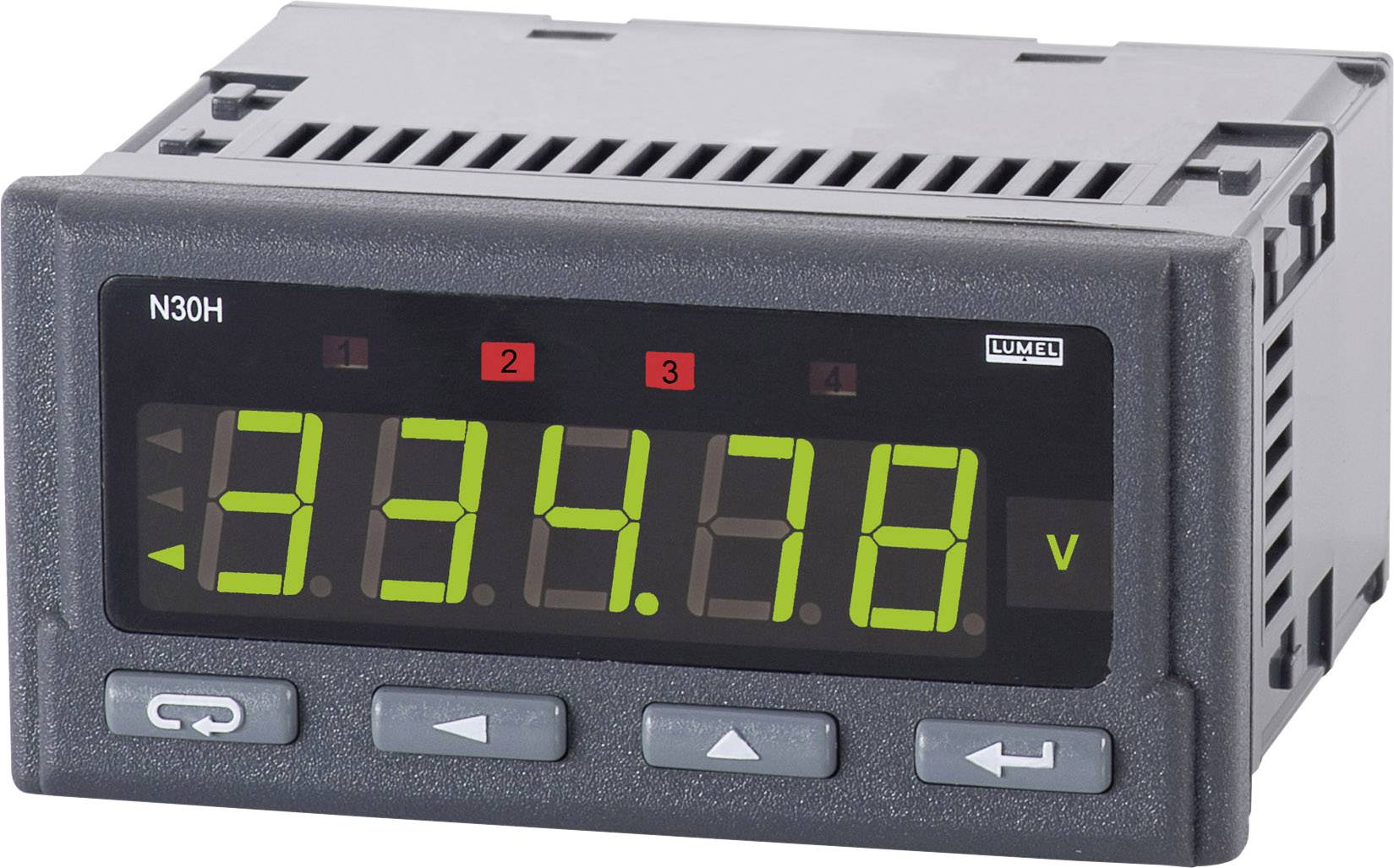

Lumel N30H 100000E0 0 - 600 V/DC, 0 - 6 A/DC
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Programmable built-measuring device
- Assembly dimensions 96 x 48 mm
Technical specifications
- Reading type
Voltage
- Reading range (min.)
0 V
- Type
N30H 100000E0
- Reading range (max.)
600 V
- Display technology
LED
IP65 (front)
- Recess width
96 mm
- Display (counts)
5
- Recess height
48 mm
- Operating voltage
600 V DC
- Dim
(L x W x H) 93 x 96 x 48 mm
- Weight
200 g
- Features
Colour display
- Reading category
CAT II 600 V
CAT III 300 V
- Width
96 mm
- Height
48 mm
- Length
93 mm
- Interfaces
Screw terminal
- Digit height
14 mm
- Connections
Screw terminals
- Digits
5
- Display (details)
LED
- Assembly dimensions
96 x 48 mm
- Power supply (details)
85 - 253 V AC/DC
- Reading range
0 - 600 V/DC, 0 - 6 A/DC
Documents & Downloads
Datasheet
Datasheet 1384092 Lumel N30H 100000E0 0 - 600 V/DC, 0 - 6 A/DC
User & Safety Instructions
User & Safety Instructions 1384092 Lumel N30H 100000E0 0 - 600 V/DC, 0 - 6 A/DC
Description
Programmable digital panel-mounted measuring device. Universal input for DC current and voltage. 5-digit display
This text is machine translated.
This text is machine translated.
Features
- Control Panel measuring device
- Connection via screw terminal plug.
- This text is machine translated.
Scope of delivery
- 4 screw clamp mountings
- User manual.
