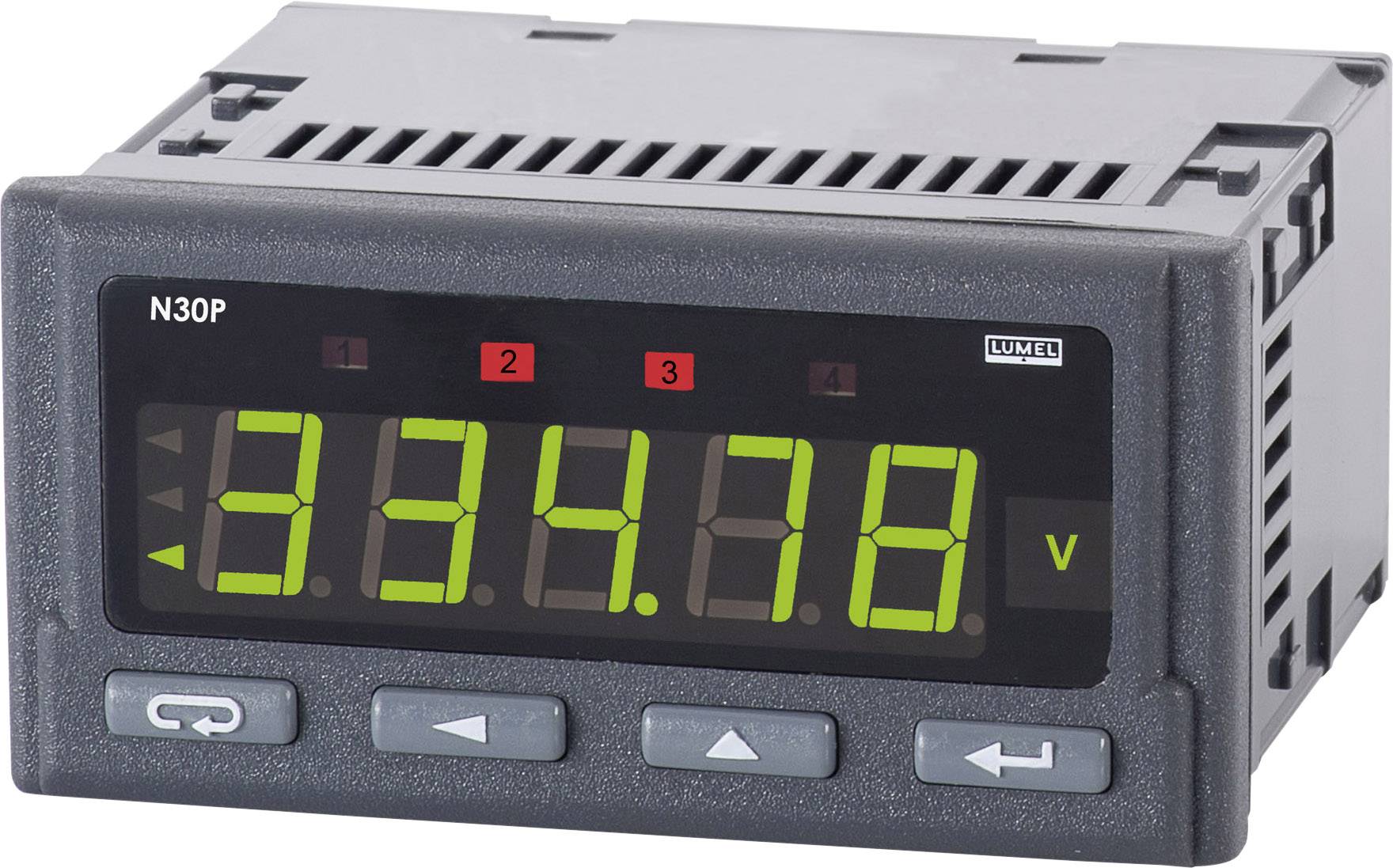

A digital measuring device with a display reading '334.78 V' and four control buttons beneath it.

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Programmable built-measuring device

Assembly dimensions 96 x 48 mm
3-color LED display
5-digit
Protection class IP65

Technical specifications

Reading type: AC voltage

Type: N30P 100000E0

Display technology: LED

: IP65 (front)

Recess width: 96 mm

Display (counts): 5

Recess height: 48 mm

Dim: (L x W x H) 93 x 96 x 48 mm

Display lighting: RGB

Features: Colour display

Reading category: CAT II 600 V
CAT III 300 V

Width: 96 mm

Height: 48 mm

Length: 93 mm

Interfaces: Screw terminal

Connections: Screw terminals

Digits: 5

Display (details): LED

Assembly dimensions: 96 x 48 mm

Power supply (details): 85 - 253 V AC/DC

Documents & Downloads

Datasheet

Datasheet 1384089 Lumel N30P 100000E0

User & Safety Instructions

User & Safety Instructions 1384089 Lumel N30P 100000E0

Description

Programmable digital panel-mounted measuring device for measuring the parameters of single phase alternating current, 5-digit display.

This text is machine translated.

Features

Control Panel measuring device
Connection via screw terminal plug. Display: alternating current, alternating current, active power, reactive power, Cos-Phi, Tan-Phi, Phi, frequency, active, reactive energy.
