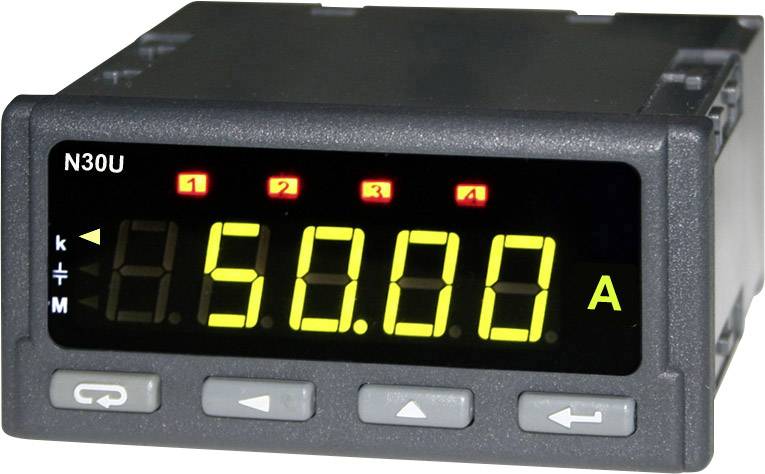

Lumel N30U 100000E0
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Programmable built-in measuring instrument for process signals, thermocouples and temperature sensor
- Assembly dimensions 96 x 48 mm
Technical specifications
- Reading type
Temperature
- Type
N30U 100000E0
- Display technology
LED
IP65 (front)
- Recess width
96 mm
- Display (counts)
5
- Recess height
48 mm
- Dim
(L x W x H) 93 x 96 x 48 mm
- Features
Colour display
- Width
96 mm
- Height
48 mm
- Length
93 mm
- Interfaces
Screw terminal
- Digit height
14 mm
- Connections
Screw terminals
- Digits
5
- Display (details)
LED
- Assembly dimensions
96 x 48 mm
- Power supply (details)
85 - 253 V AC/DC
Documents & Downloads
Datasheet
Datasheet 1384090 Lumel N30U 100000E0
User & Safety Instructions
User & Safety Instructions 1384090 Lumel N30U 100000E0
Description
Programmable digital panel-mounted measuring device. Universal input for process signals (0 - 10 V, 0 - 60 mV, 0 - 24 mA), thermocouples (Type J, K, N, E, R, S) and temperature sensor (Pt100, Pt500, Pt1000, 400 Ω, 4000 Ω). 5-digit display
This text is machine translated.
This text is machine translated.
Features
- Control Panel measuring device
- Connection via screw terminal plug.
- This text is machine translated.
Scope of delivery
- 4 screw clamp mountings
- User manual.
Hints
Sensors not included.
