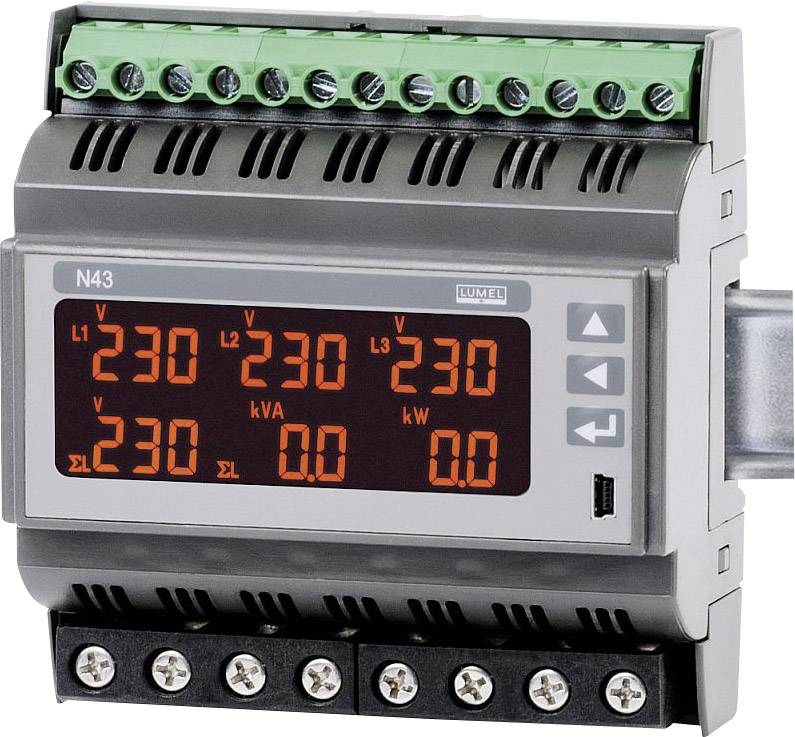

Lumel N43 12100 M1 All-purpose tester
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Three-phase universal multimeter
- Converter connection with 1/5 A secondary current
- DIN-rails-Mounting
Technical specifications
- Product type
All-purpose tester
- Reading type
Amperage
- Type
N43 12100 M1
- Dim
(L x W x H) 60 x 105 x 110 mm
- Weight
300 g
- Width
105 mm
- Height
110 mm
- Length
60 mm
- Interfaces
USB
- Connections
Screw terminals
- Display (details)
LED
- Power supply (details)
85 - 253 V/AC / 90 - 300 V DC
Documents & Downloads
Datasheet
Datasheet 1384099 Lumel N43 12100 M1 All-purpose tester
User & Safety Instructions
User & Safety Instructions 1384099 Lumel N43 12100 M1 All-purpose tester
Description
Multifunctional measuring device for measuring the parameters of three-phase alternating current and energy. Indirect current measurement with current transformers.
This text is machine translated.
This text is machine translated.
Features
- Measured variables: A, V, kW, kVA, kvar, Wh, varh, Hz, power factor, THD. Interface: USB and RS-485 Modbus
- 3 relay outputs
- Pulse output.
Hints
Current transformer and USB cable not included in delivery.
